Turbocharger Exhaust Temperature Sensor: Diagrams




Component Connector End Views

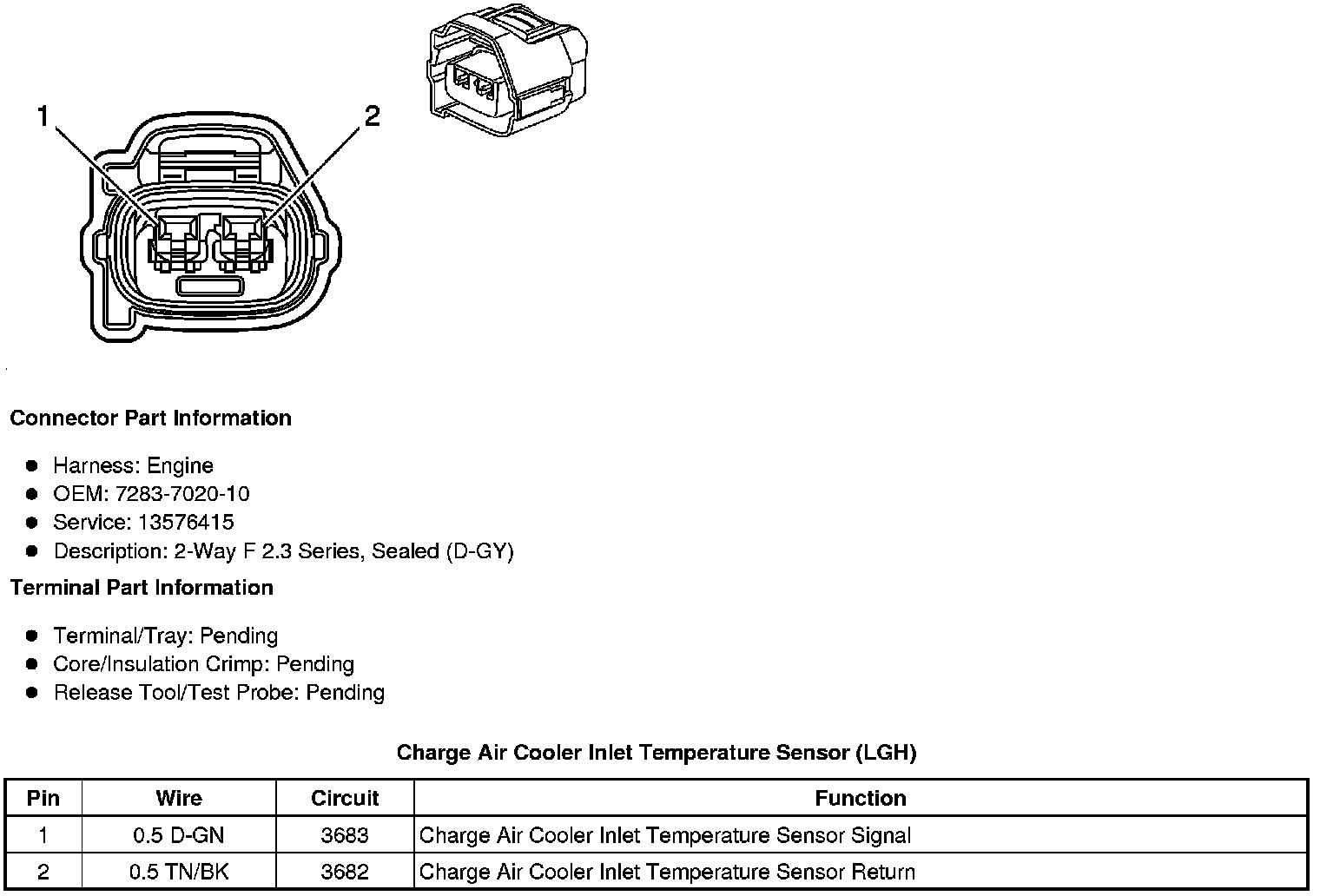

Charge Air Cooler Inlet Temperature Sensor (LGH)

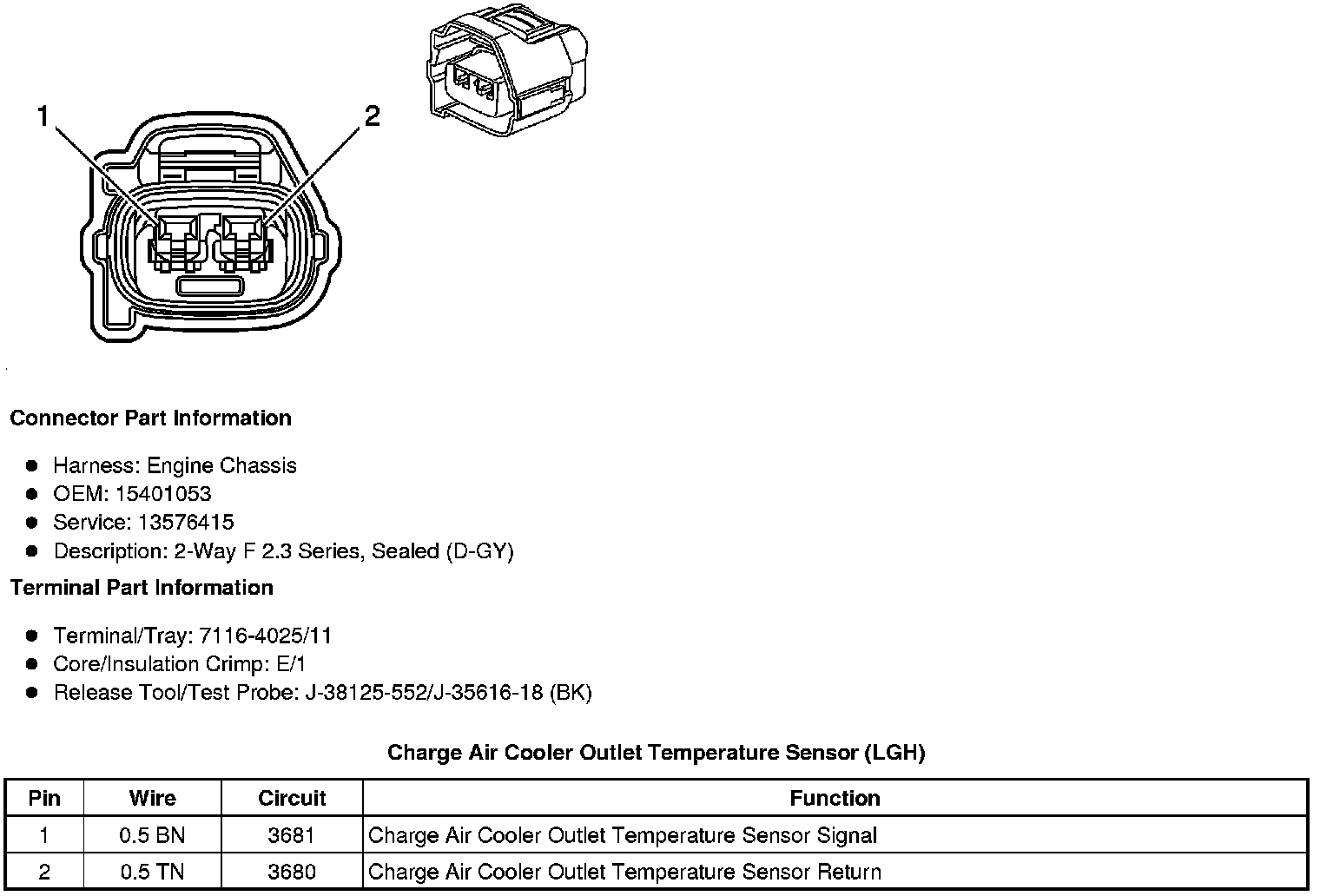

Charge Air Cooler Outlet Temperature Sensor (LGH)
