Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

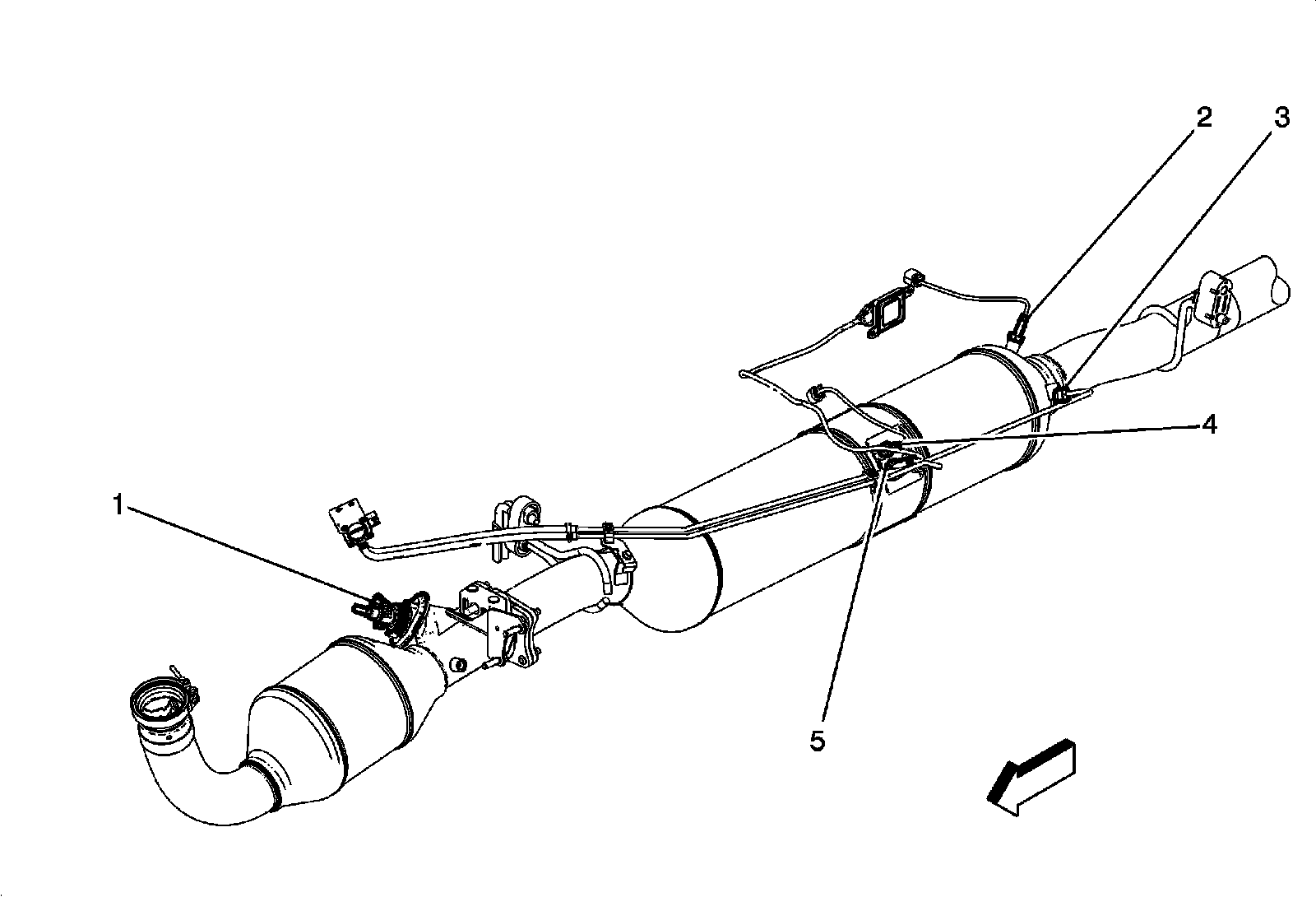

Front of Exhaust System Components (LGH)




1 - Reductant Injector
2 - Exhaust Temperature Sensor 5
3 - Exhaust Pressure Differential Sensor
4 - Exhaust Temperature Sensor 3
5 - Nitrogen Oxides Sensor 2
