Glow Plug Control Module: Diagrams




Component Connector End Views

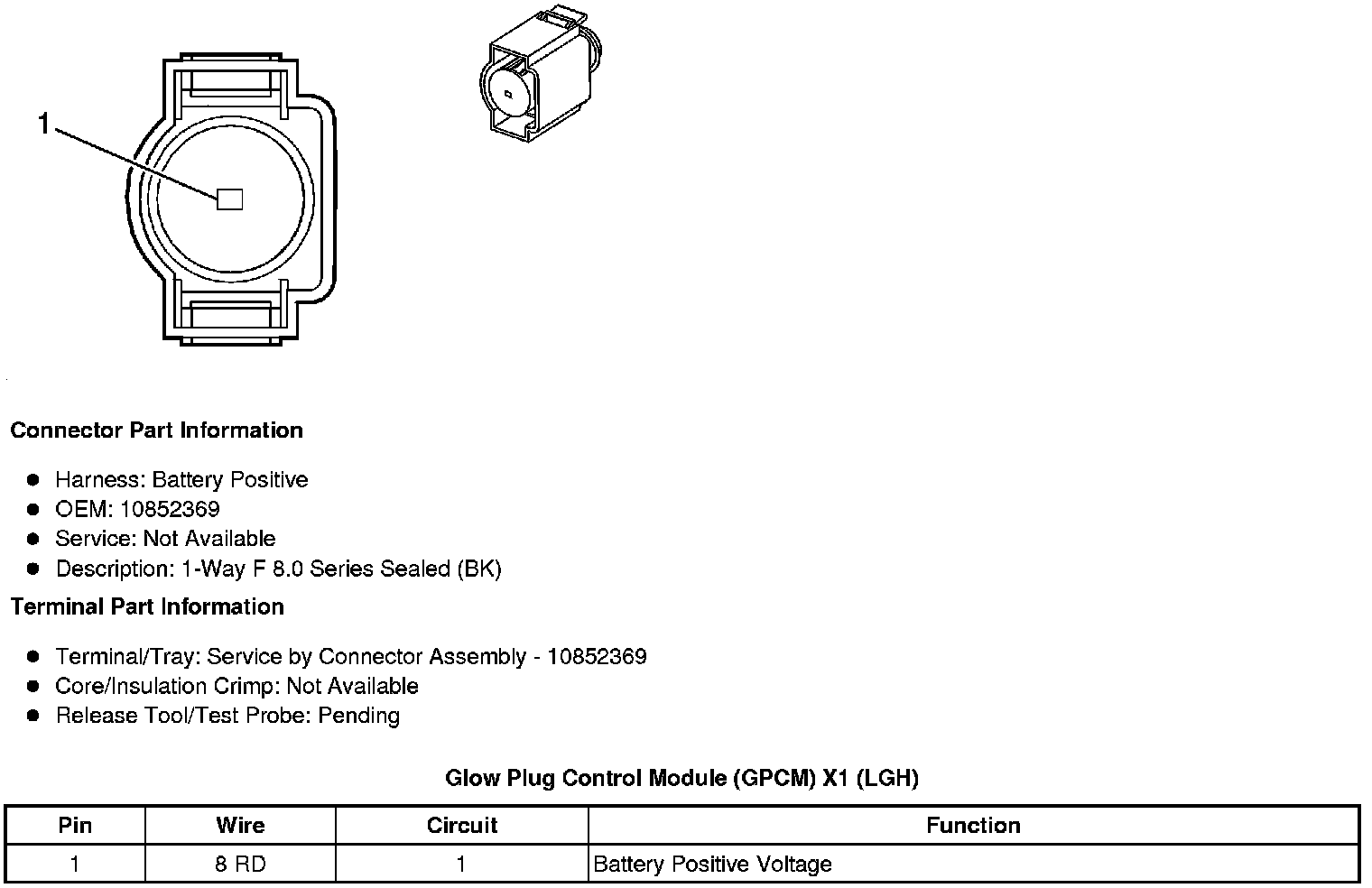

Glow Plug Control Module (GPCM) X1 (LGH)

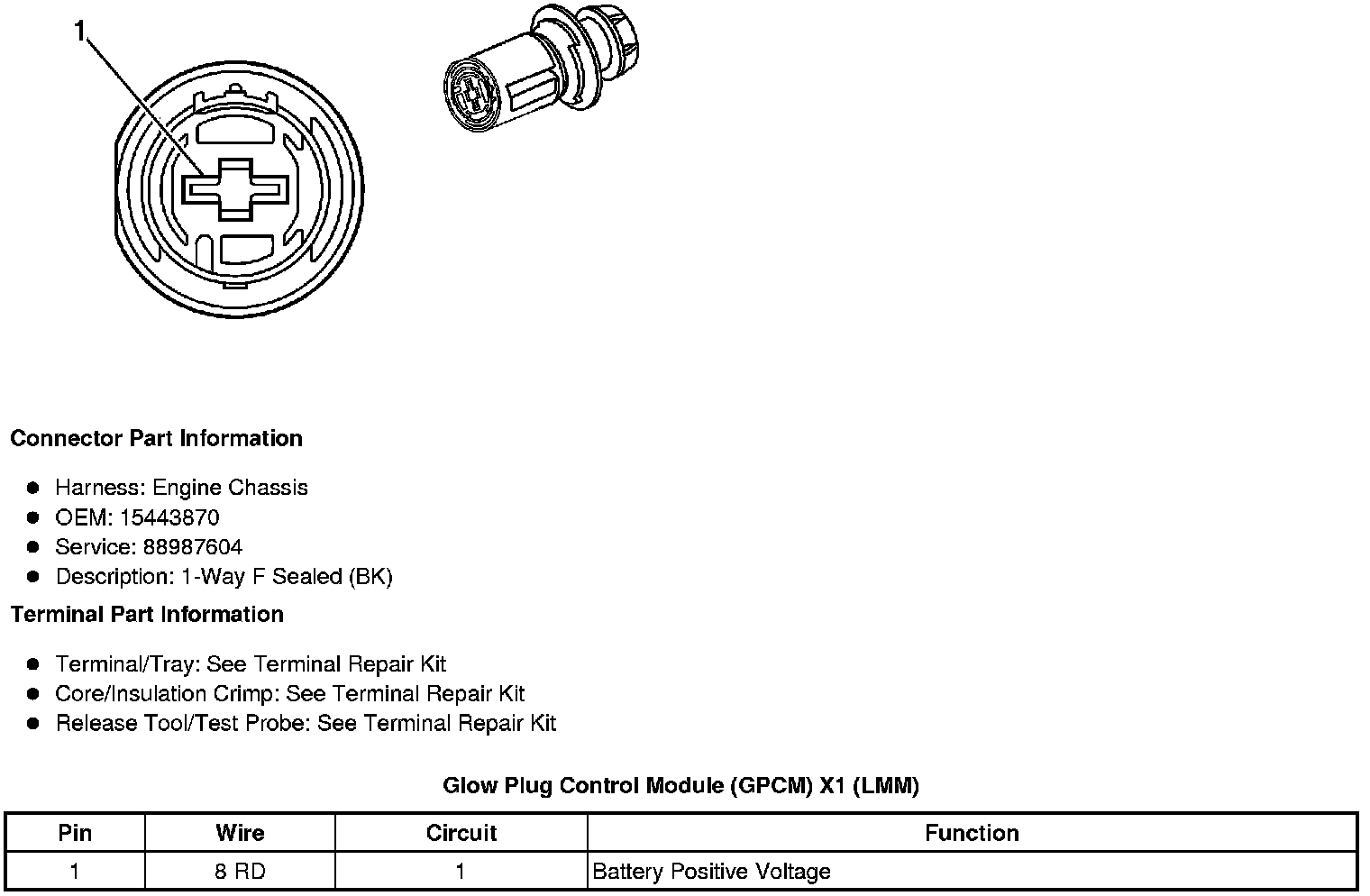

Glow Plug Control Module (GPCM) X1 (LMM)

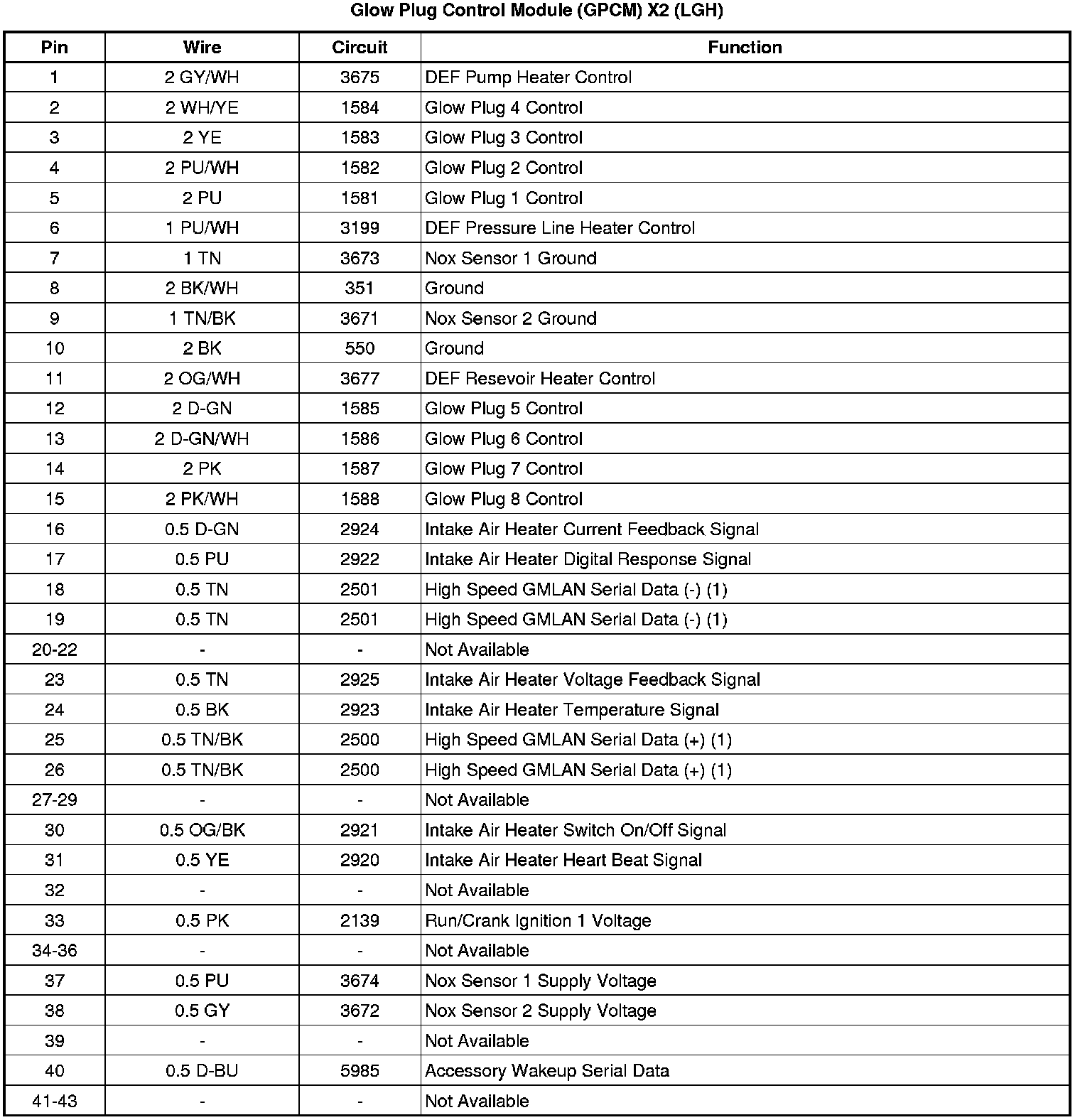

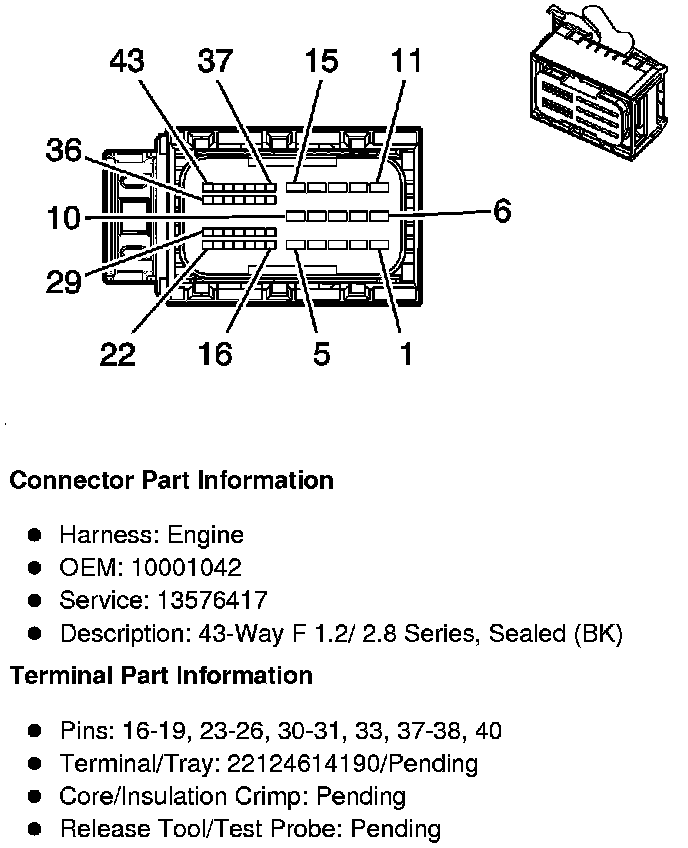

Glow Plug Control Module (GPCM) X2 (LGH)

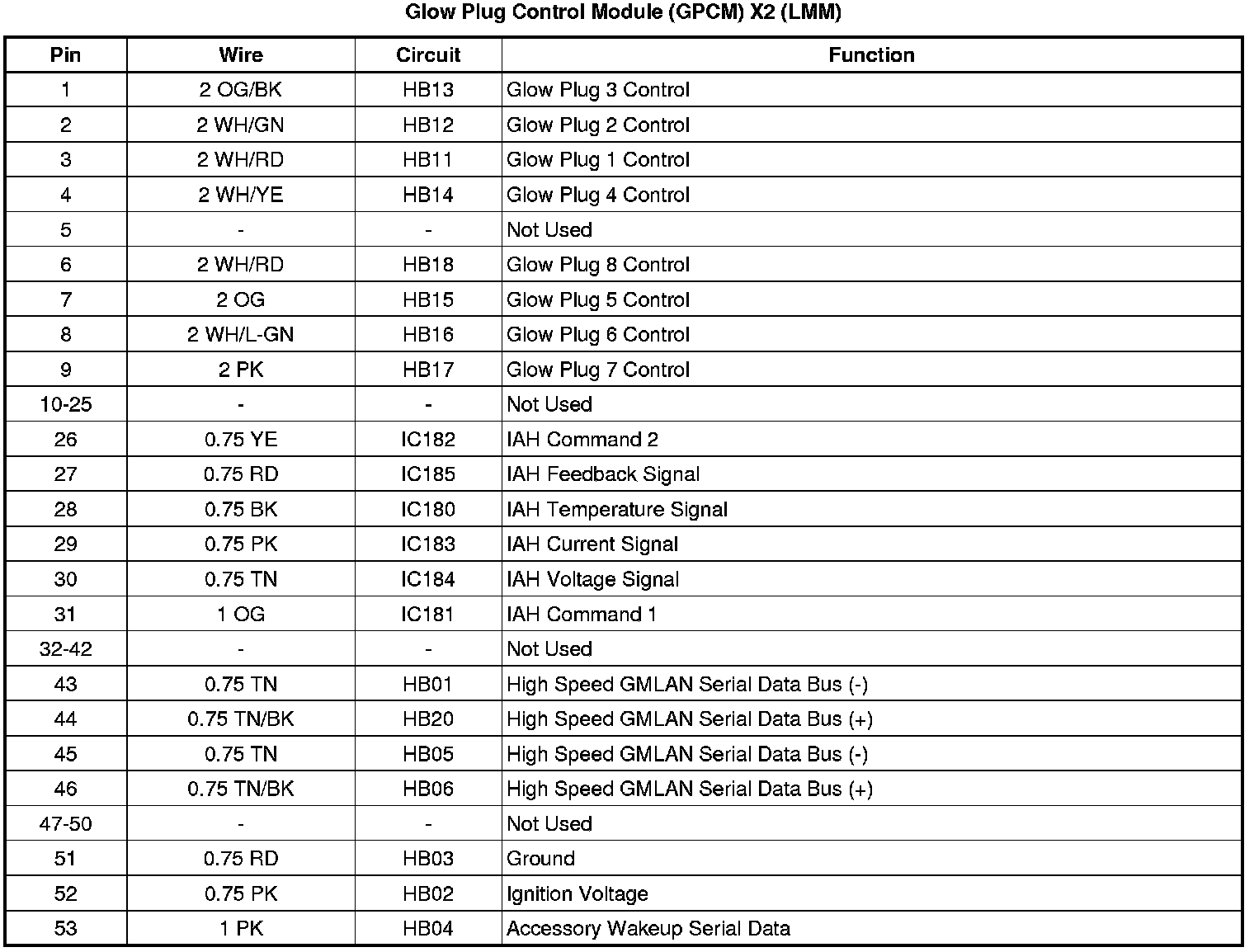

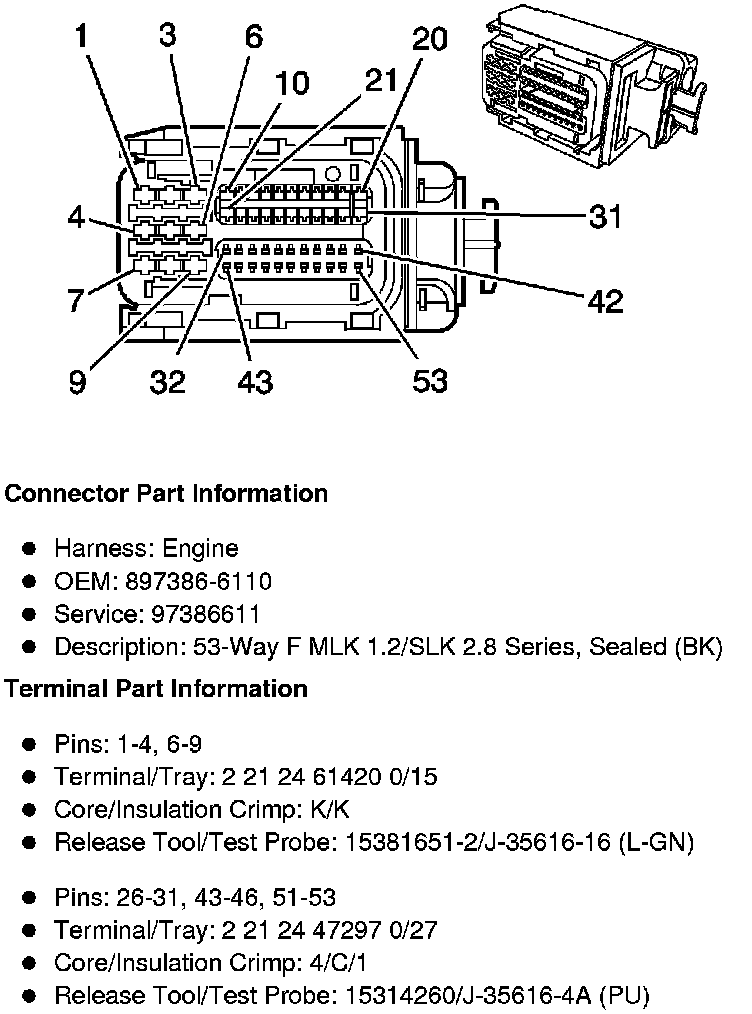

Glow Plug Control Module (GPCM) X2 (LMM)
