Indirect Fuel Injector Replacement

Indirect Fuel Injector Replacement

Special Tools

CH 49736 - Hydrocarbon Injector Quick Connect Release Tool

For equivalent regional tools, refer to Special Tools (Special Tools).

Removal Procedure




1. Remove the engine cover. Refer to Engine Cover Replacement (Service and Repair).

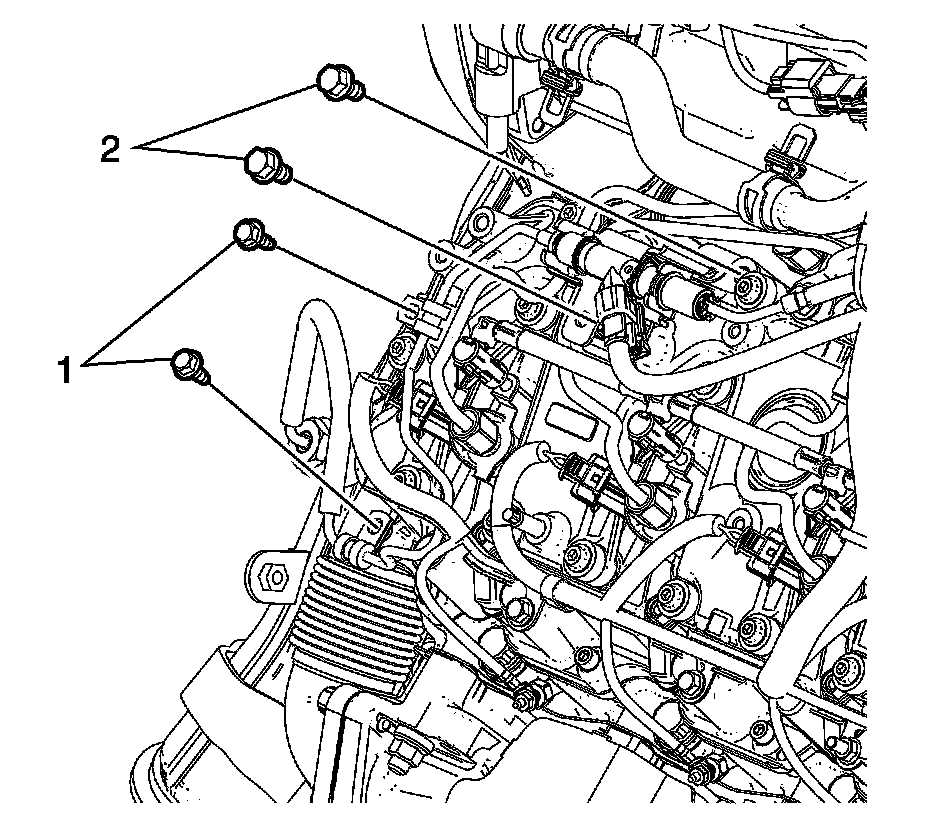

2. Remove the indirect fuel injector fasteners (1) and (2).

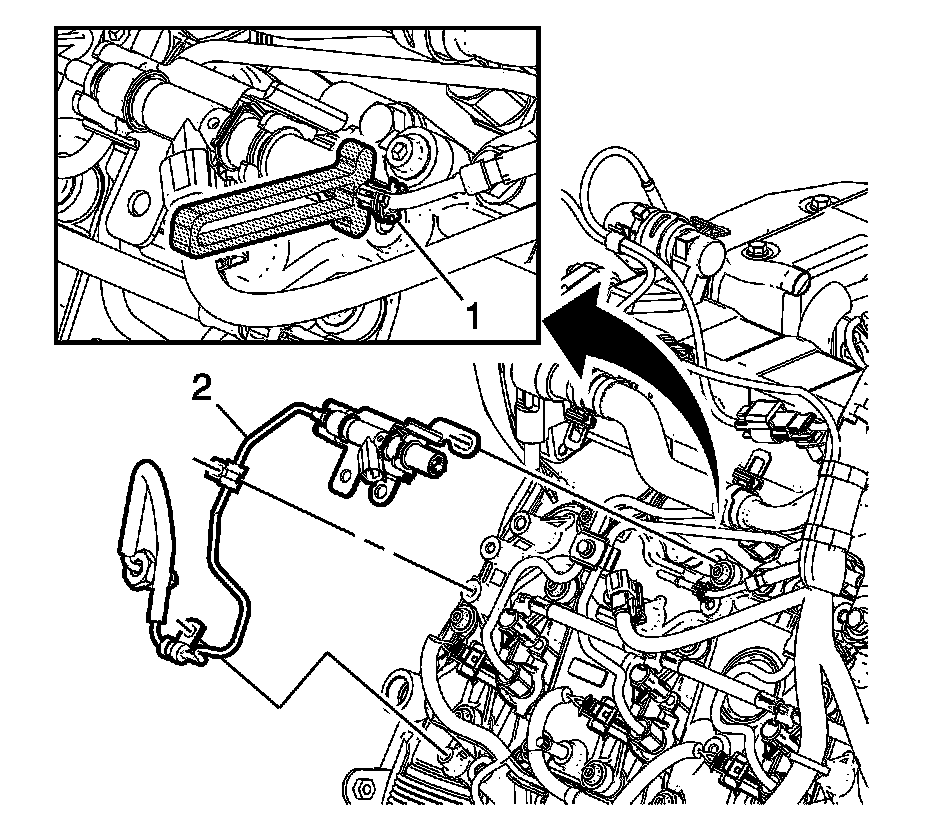

3. Remove the indirect fuel injector retainer (1) from the fitting.
4. Remove the indirect fuel injector (2) using the CH 49736 - tool.

Installation Procedure




1. Install the indirect fuel injector retainer (1) to the fitting.
2. Install the indirect fuel injector (2) and tighten the fitting to 45 Nm (33 lb ft).




3. Install the indirect fuel injector fasteners (1) and (2) to 25 Nm (18 lb ft).
4. Install the engine cover. Refer to Engine Cover Replacement (Service and Repair).
