Exhaust Temperature Sensor
>>
Service and Repair
>>

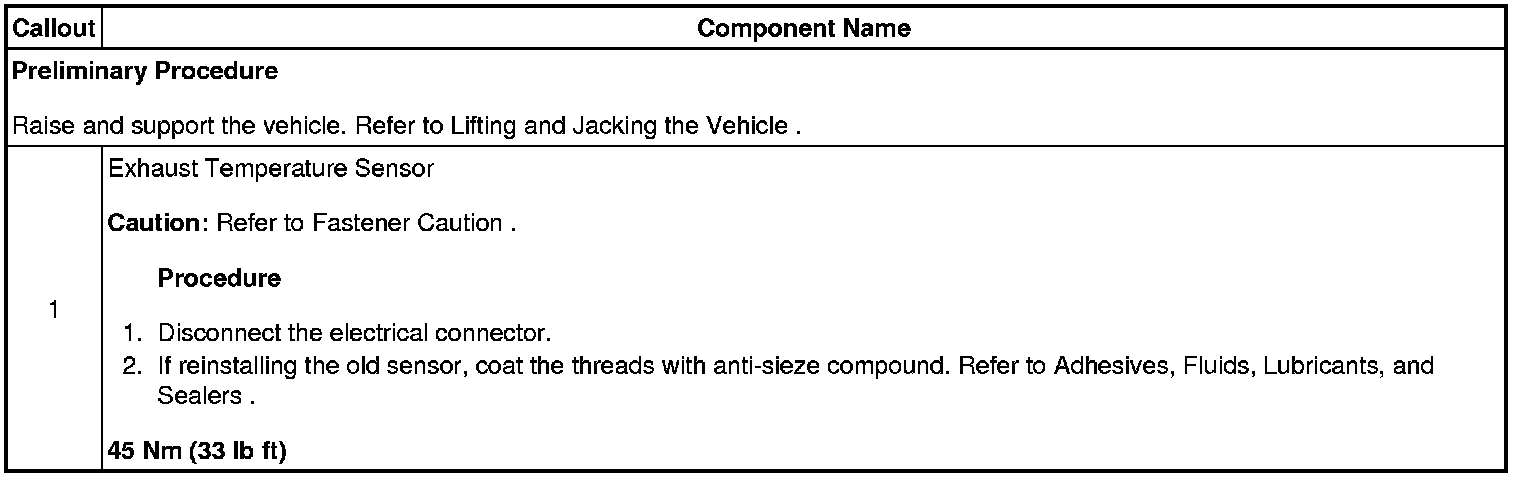

Exhaust Temperature Sensor Replacement - Position 2
>>
VIN L
VIN L

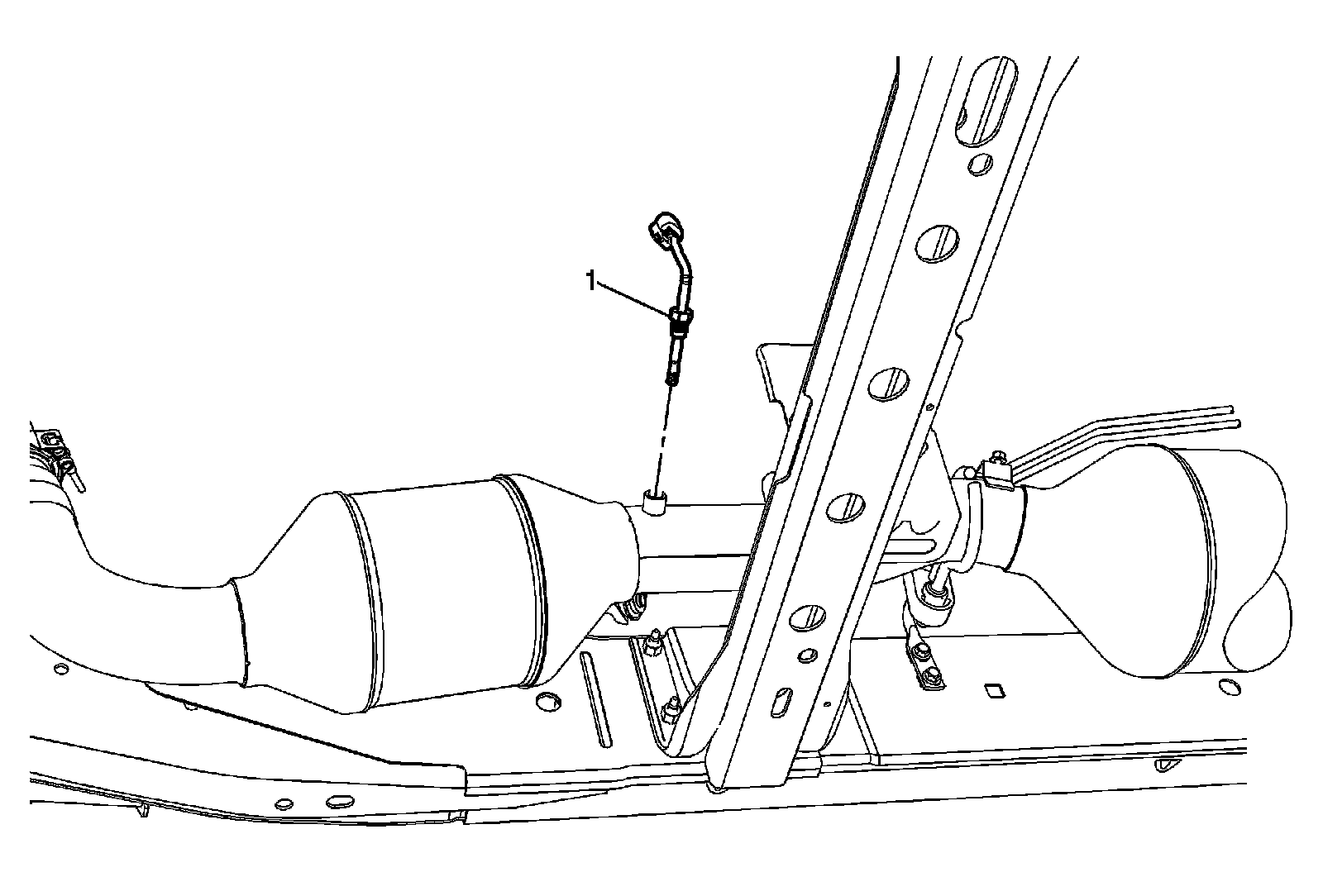

Exhaust Temperature Sensor
Replacement - Position 2
