Interior Lights Schematics



INTERIOR LIGHTS SCHEMATICS

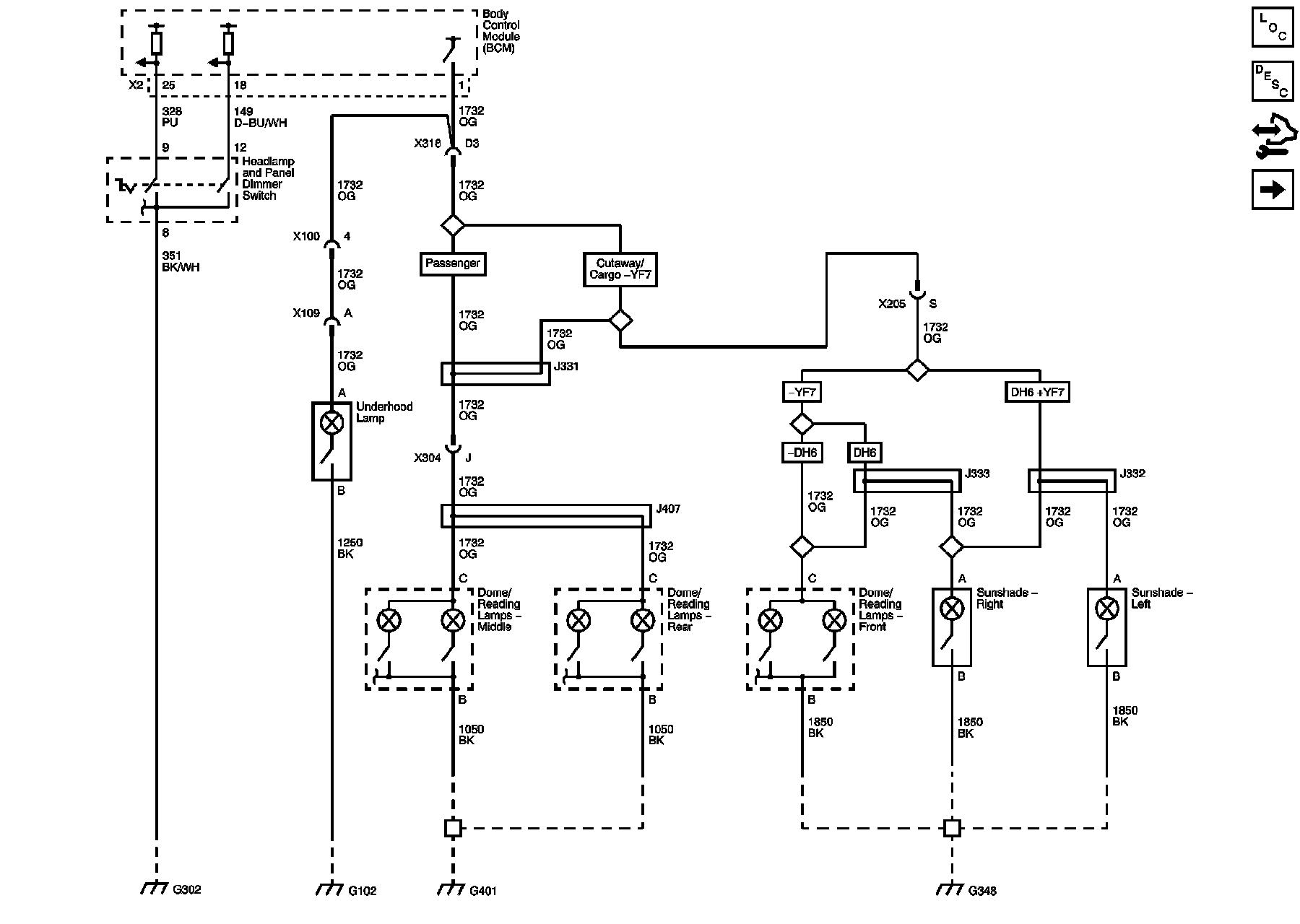

Inadvertent Lamp Control

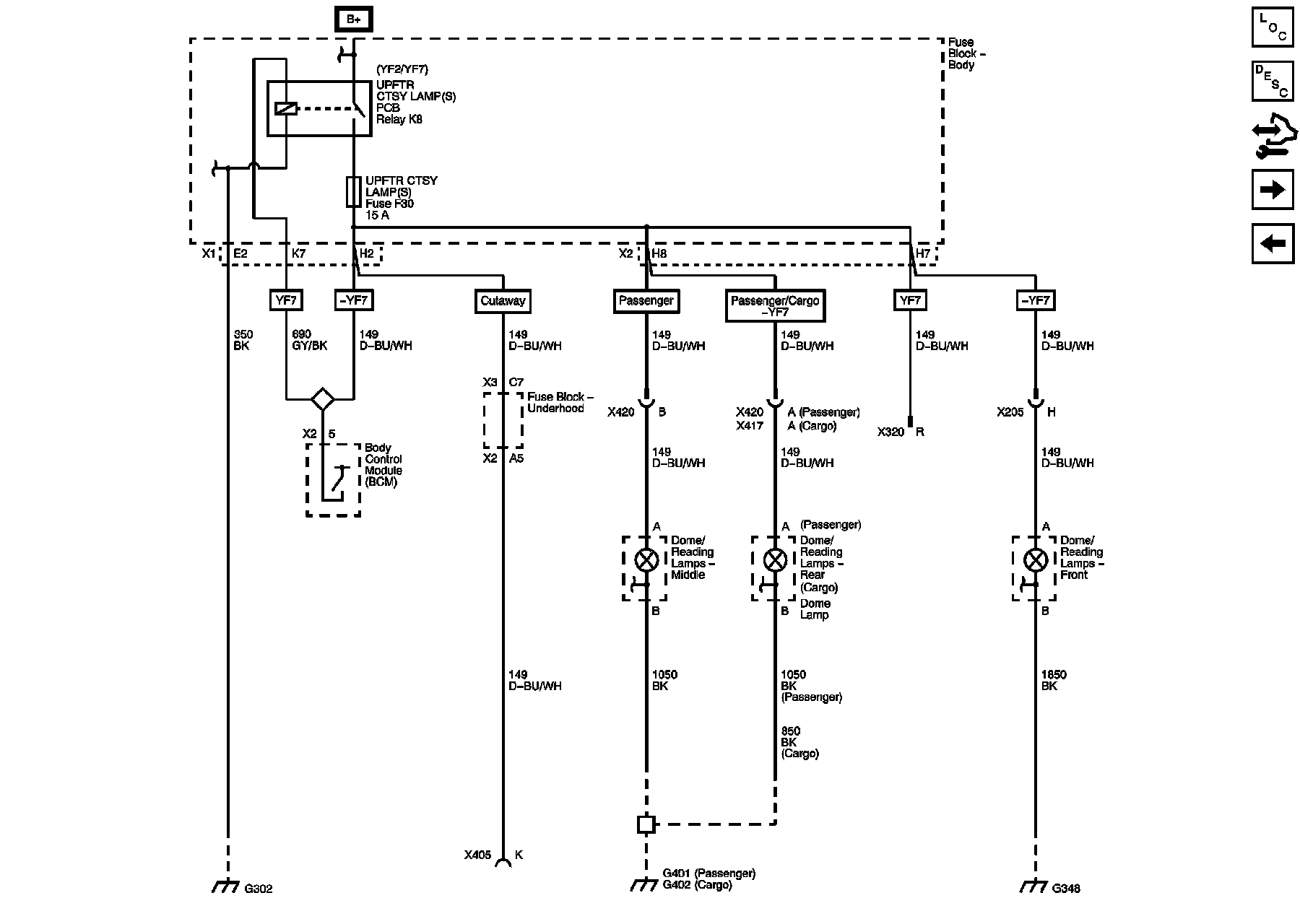

Courtesy Lamp Control

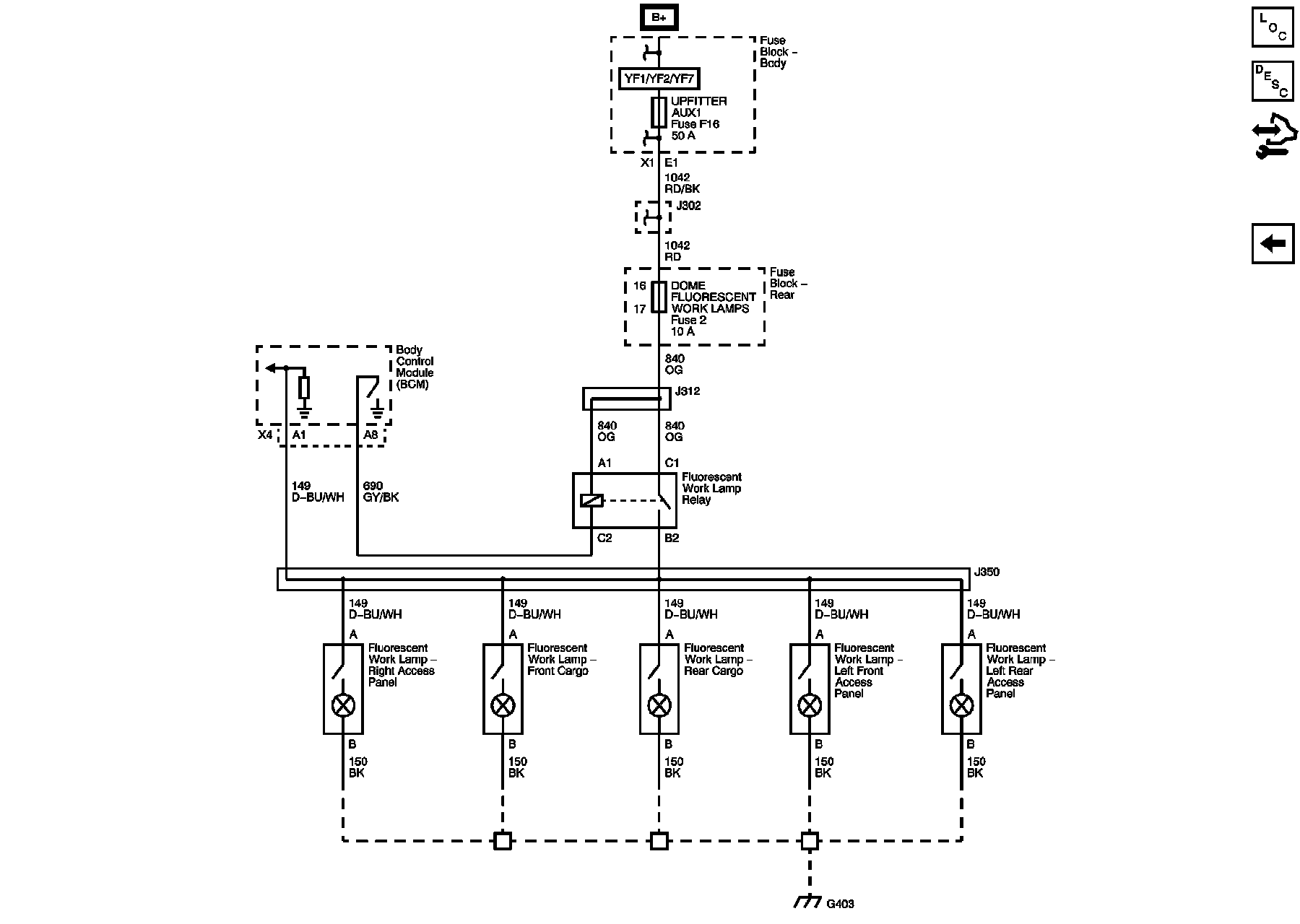

Dome Fluorescent Work Lamps (PRP with UF2)
