Reductant Sensor Module
Reductant Sensor Module
Component Connector End Views

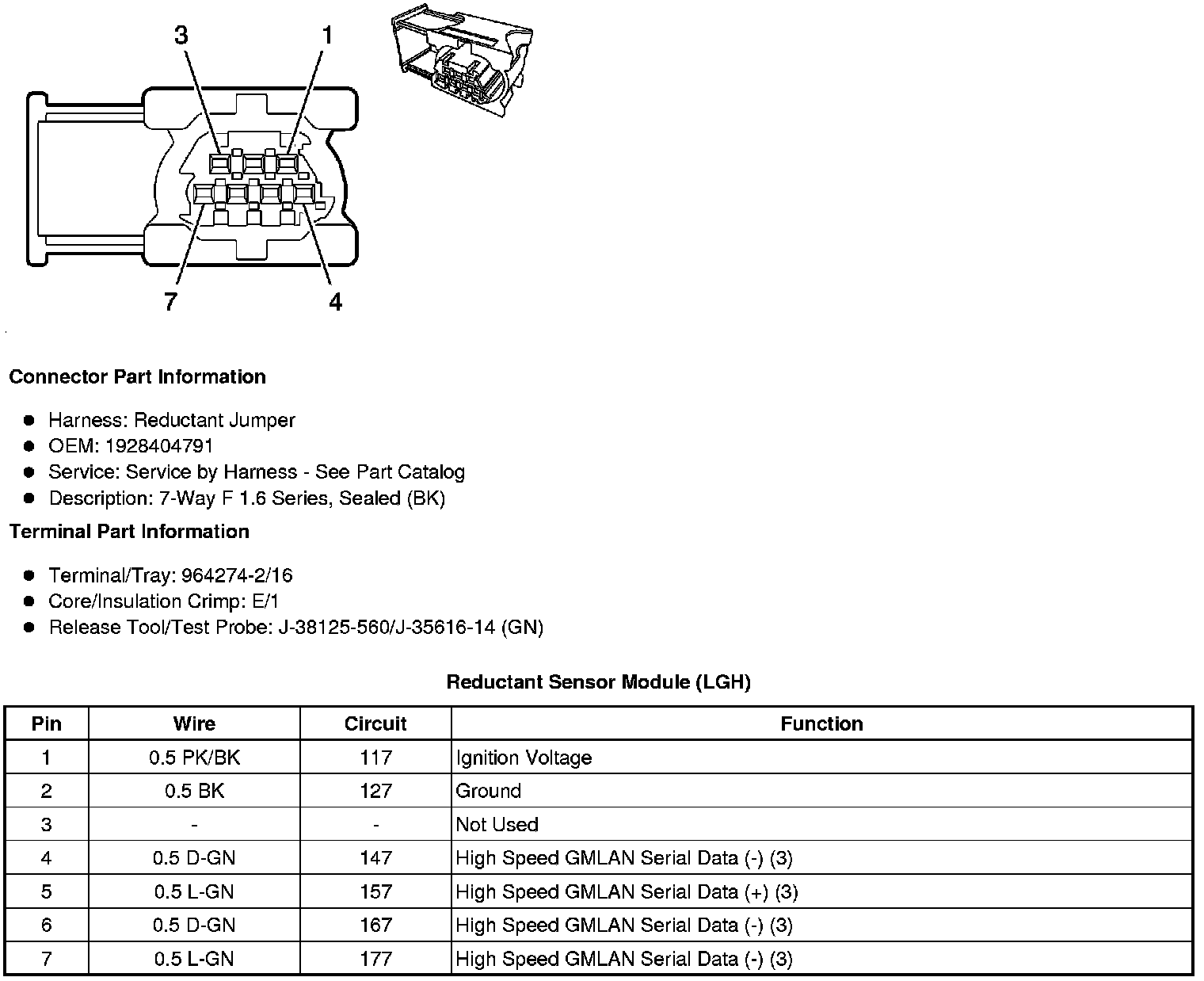

Reductant Sensor Module (LGH)
