P166C

DTC P166C

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provide an overview of each diagnostic category.

DTC Descriptor
DTC P166C
- Intake Air (IA) Heater Resistance.

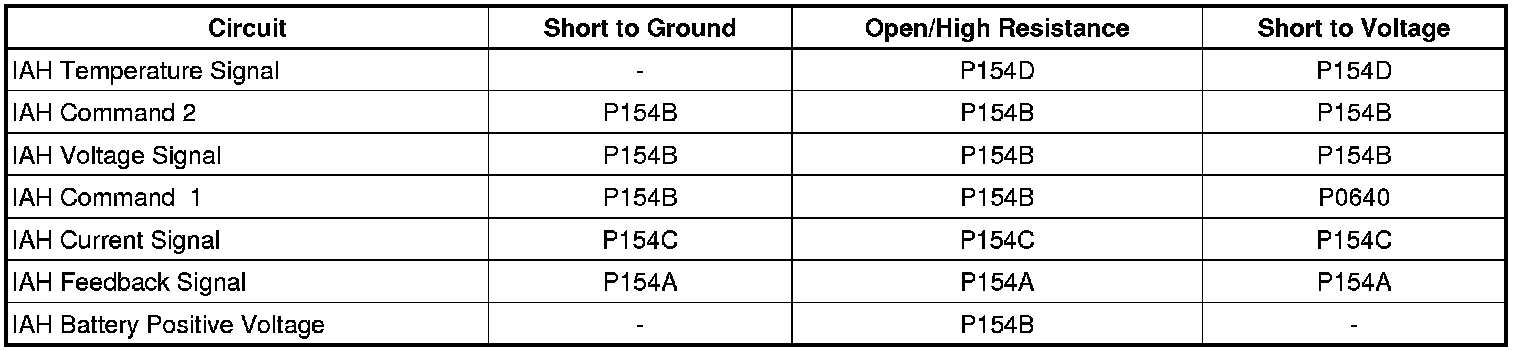

Diagnostic Fault Information





Circuit/System Description

The intake air heater (IAH) is located in the air inlet tube and is used to warm the incoming air to aid in starting the engine and for proper cylinder combustion. The glow plug control module (GPCM) will command the IAH on when the engine coolant temperature is below 40°C (104°F). Power to the IAH is supplied by the battery positive voltage circuit. The IAH is connected to the GPCM by the following circuits. If there is a fault on any of these circuits or a condition in the IAH a DTC will set.

* The IAH temperature signal circuit
* The IAH command 1 circuit
* The IAH command 2 circuit
* The IAH voltage signal circuit
* The IAH current signal circuit
* The IAH feedback signal circuit

Conditions for Running the DTC

The IAH is commanded ON.

Conditions for Setting the DTC

The resistance in the IAH is more than a calibrated amount for more than 3 seconds.

Action Taken When the DTC Sets

DTC P166C is a type B DTC.

Conditions for Clearing the DTC

DTC P166C is a type B DTC.

Reference Information
Schematic Reference

Engine Controls Schematics ([1][2]Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Connector End Views By Name)
Electrical Information Reference

* Circuit Testing (Circuit Testing)
* Connector Repairs (Connector Repairs)
* Testing for Intermittent Conditions and Poor Connections (Testing for Intermittent Conditions and Poor Connections)
* Wiring Repairs (Wiring Repairs)

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (Powertrain Diagnostic Trouble Code (DTC) Type Definitions)
Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information

Circuit/System Testing

Replace the intake air heater.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
