Power Window Motor: Diagrams
Component Connector End Views
Window Motor - Driver (AXC or AXE)

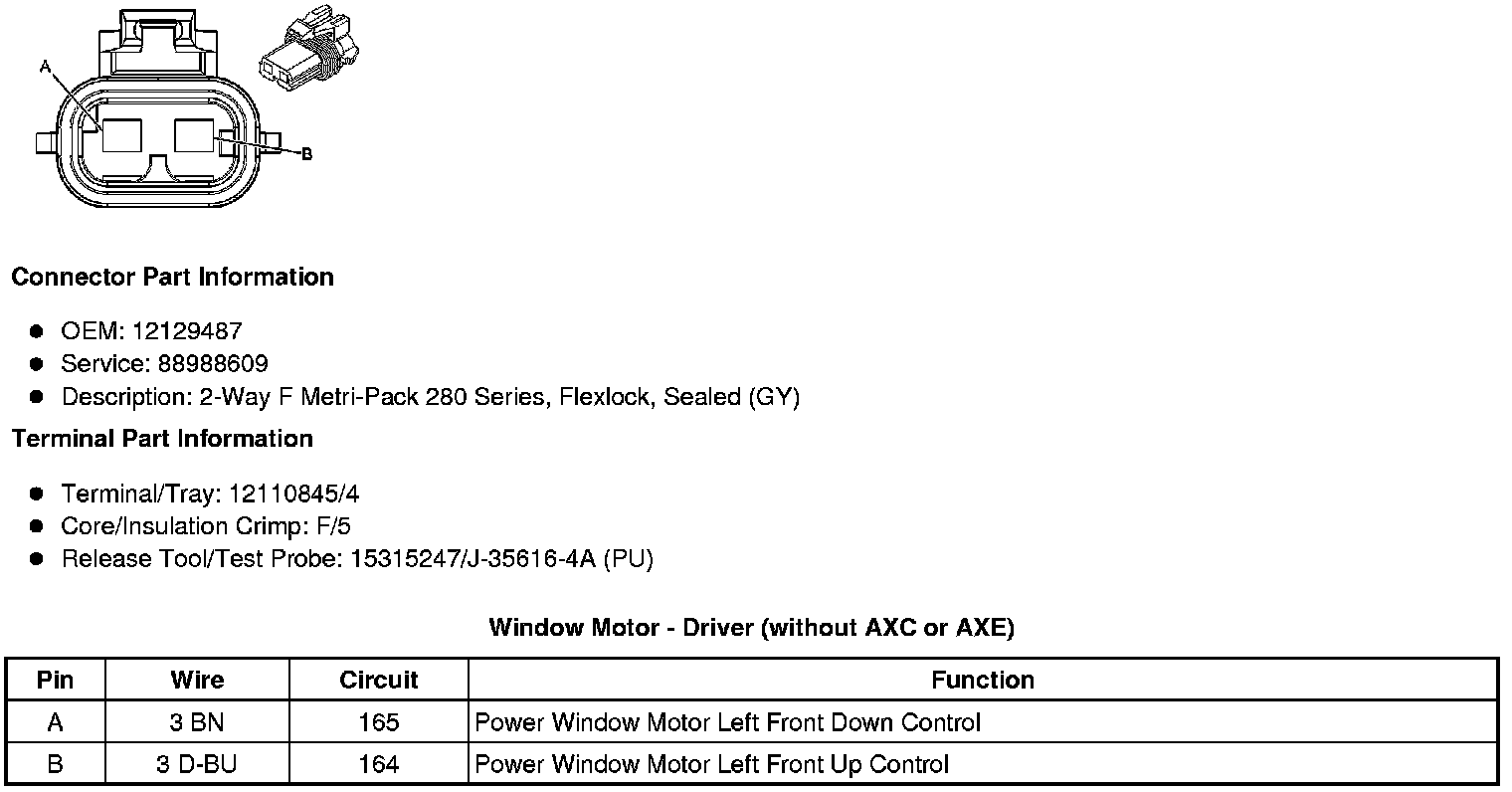

Window Motor - Driver (without AXC or AXE)
Window Motor - Left Rear

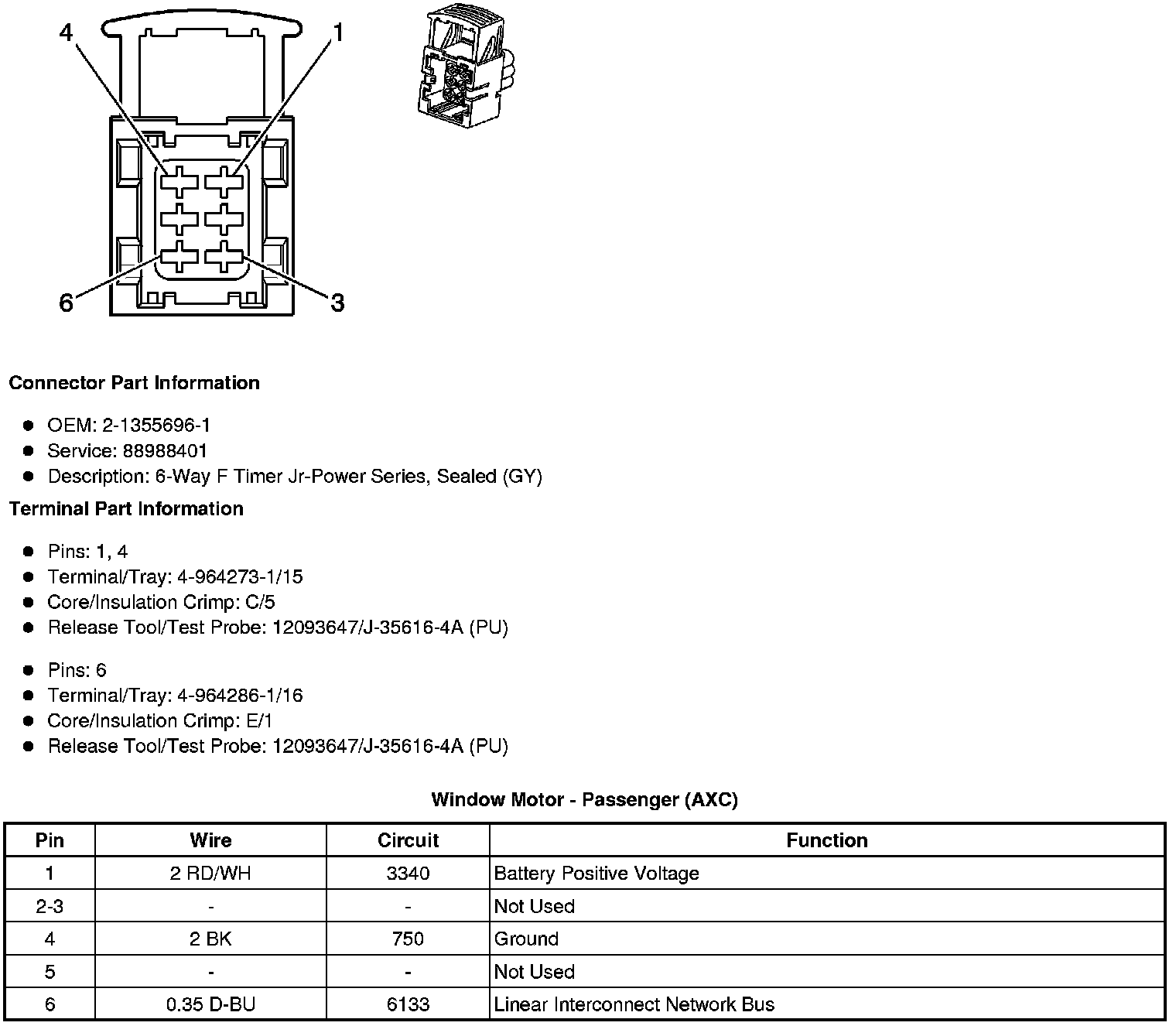

Window Motor - Passenger (AXC)
Window Motor - Passenger (without AXC)

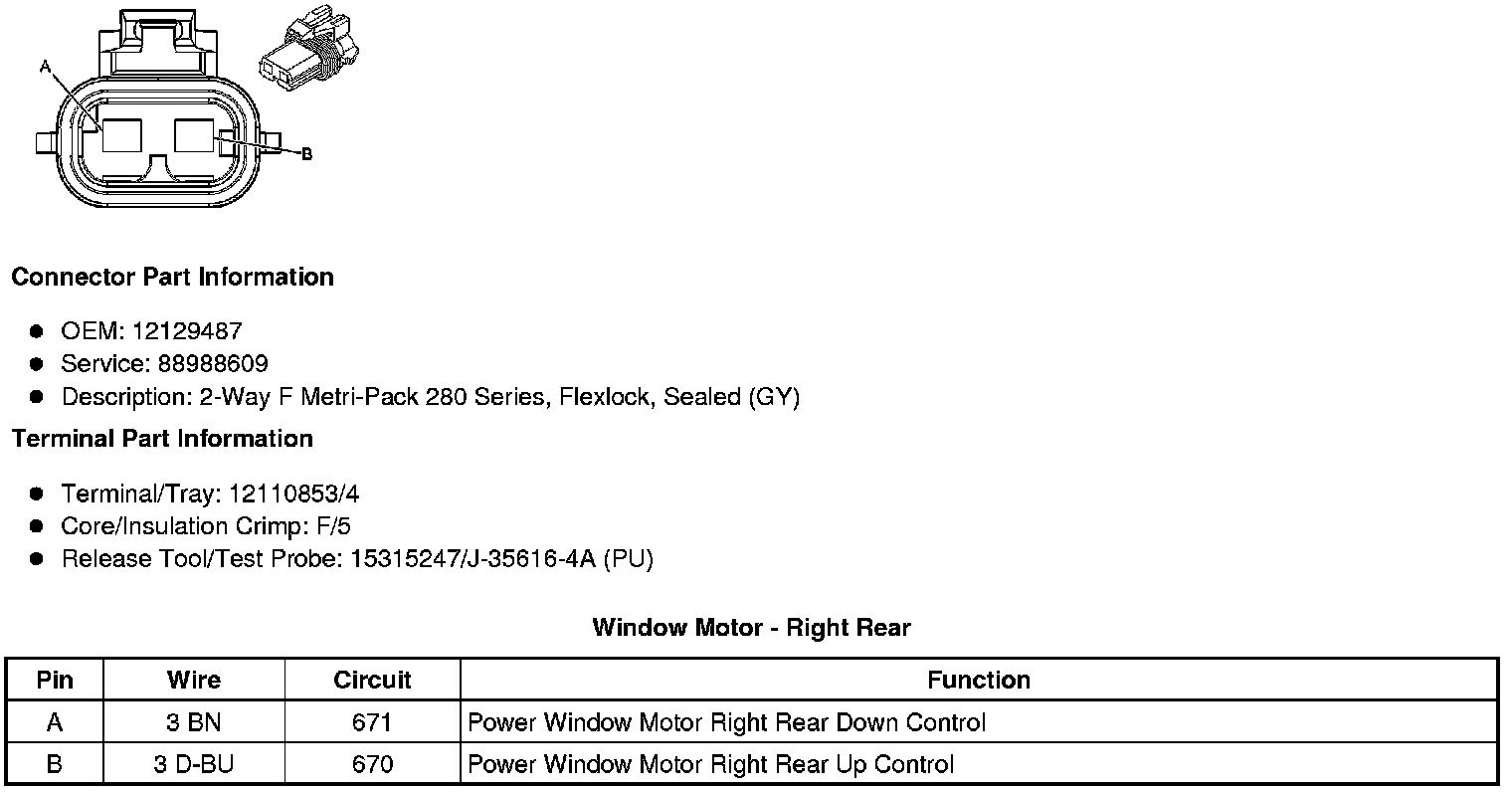

Window Motor - Right Rear
