Front Differential Transfer Drive Gear Support Assembly Disassemble




Front Differential Transfer Drive Gear Support Assembly Disassemble

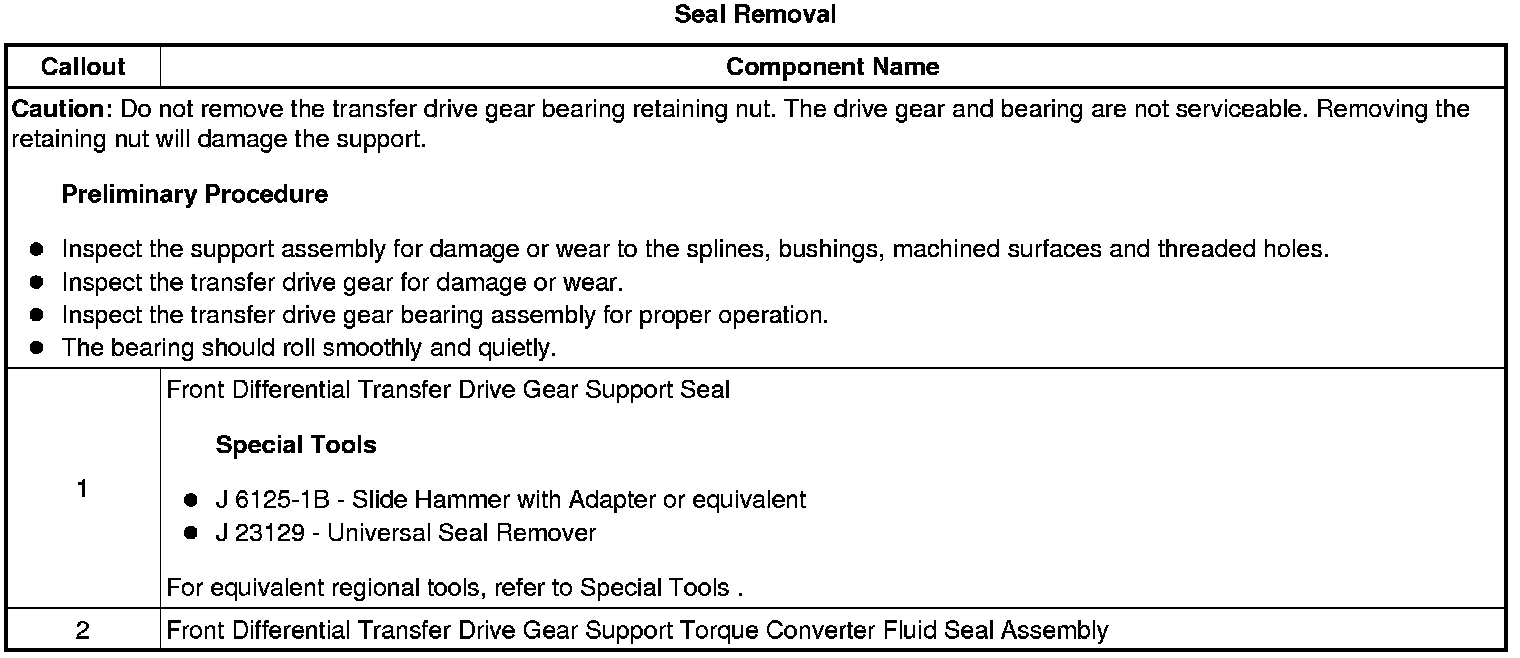

Seal Removal

fig_refgc09routlC-1737841

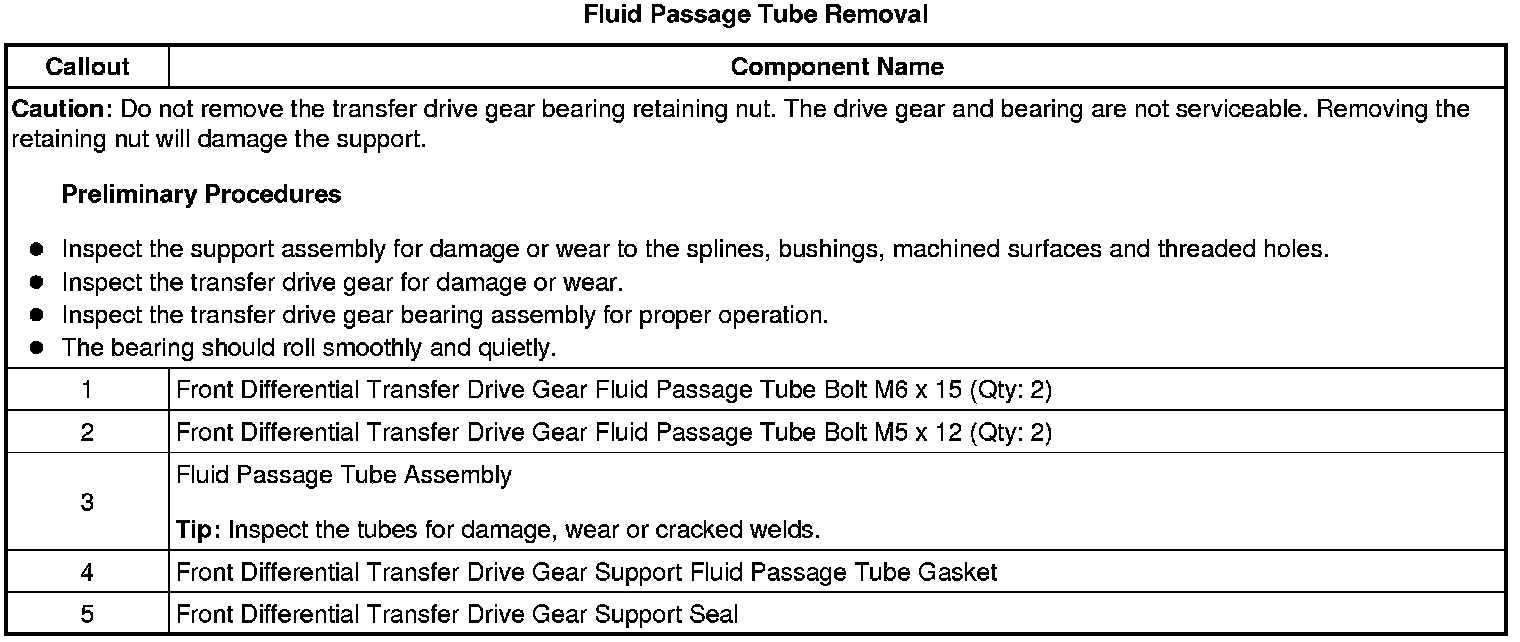

Fluid Passage Tube Removal

fig_refgc09routlC-1737843
