Front Differential Drive Pinion Bearing Cup, Washer, and Lubricant Dam Replacement - Torque Converter Housing Side




Front Differential Drive Pinion Bearing Cup, Washer, and Lubricant Dam Replacement - Torque Converter Housing Side

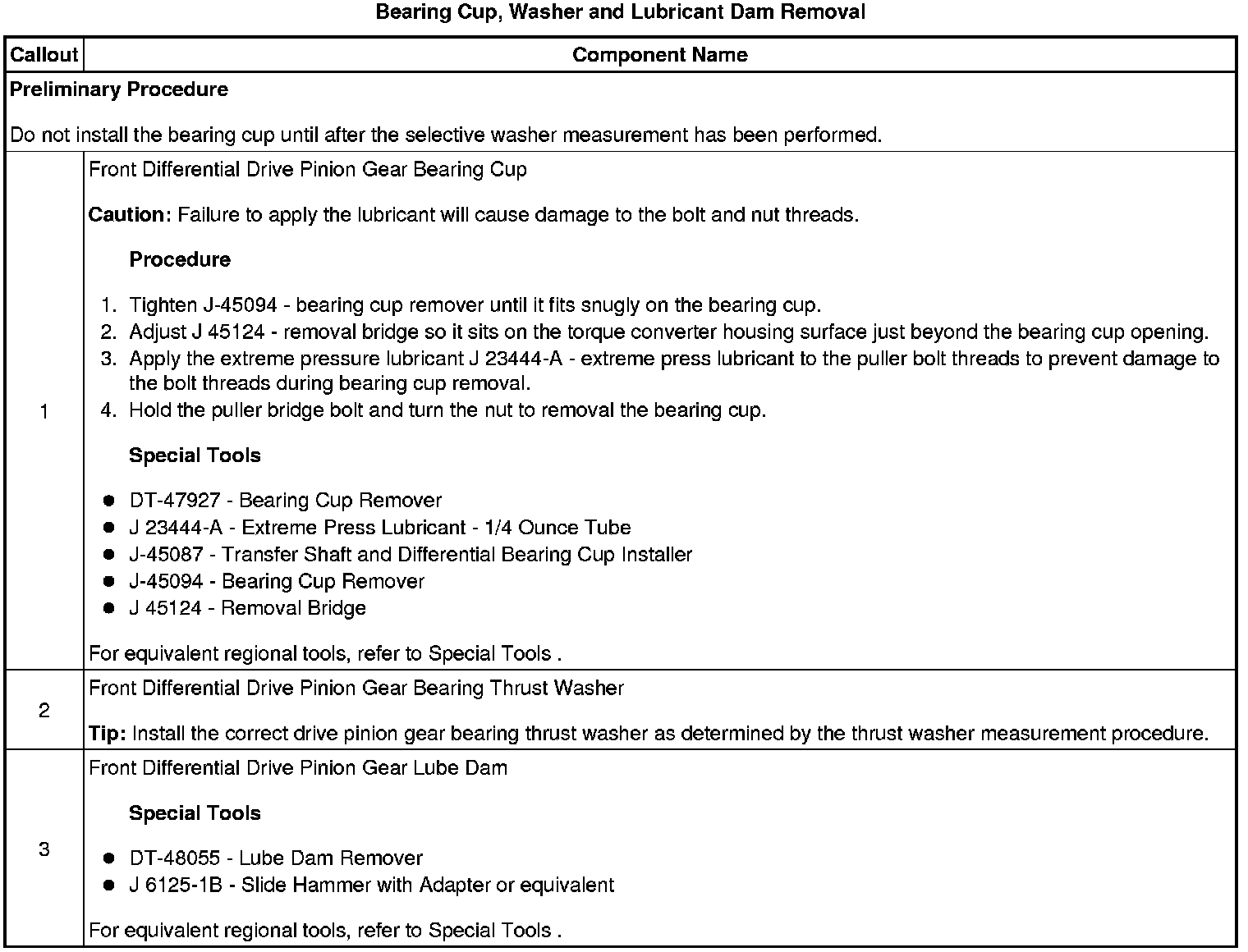

Bearing Cup, Washer and Lubricant Dam Removal

fig_refgc09routlC-1737830

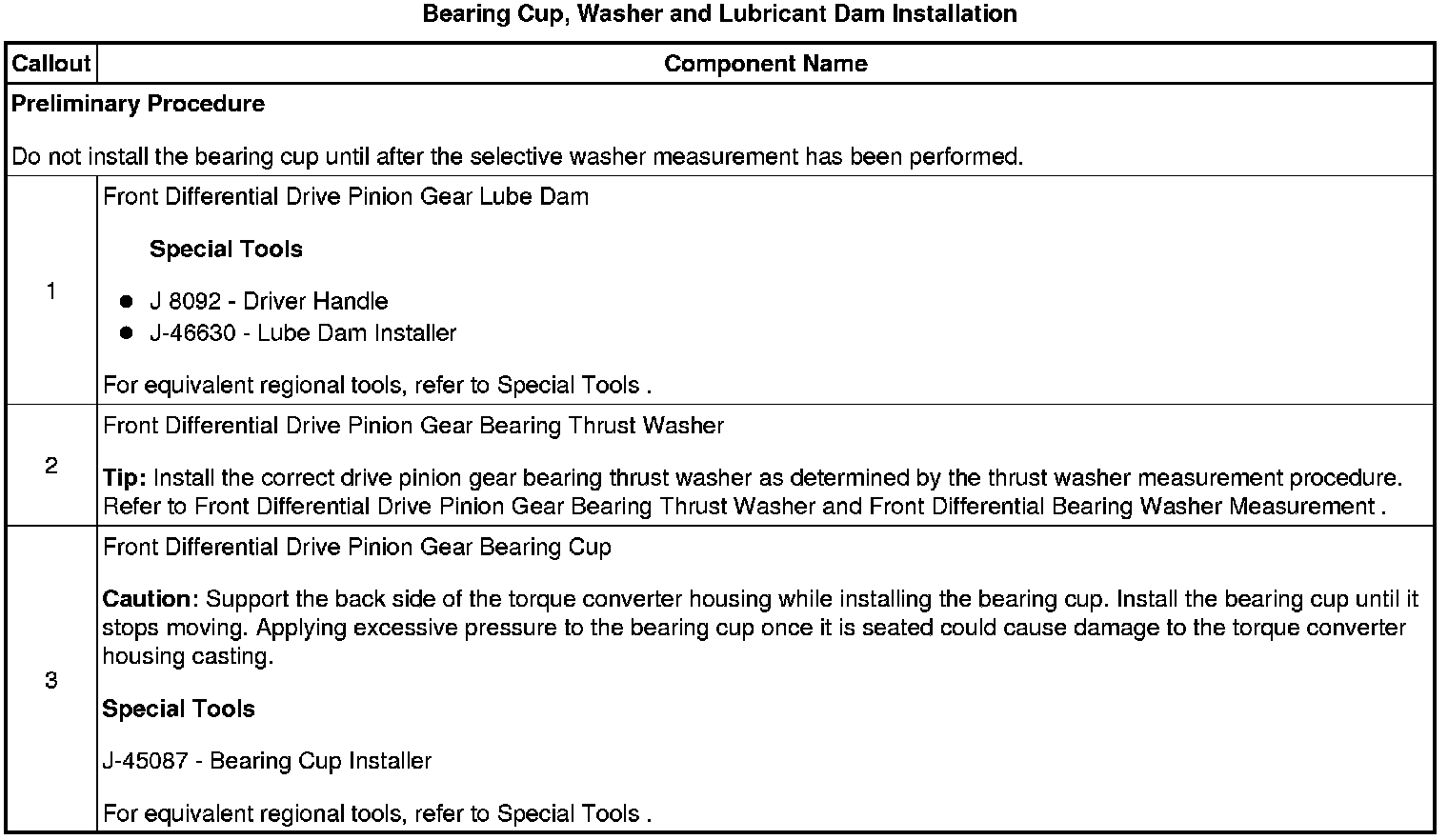

Bearing Cup, Washer and Lubricant Dam Installation

fig_refgc09routlC-1737832
