Front Differential Carrier Cleaning and Inspection

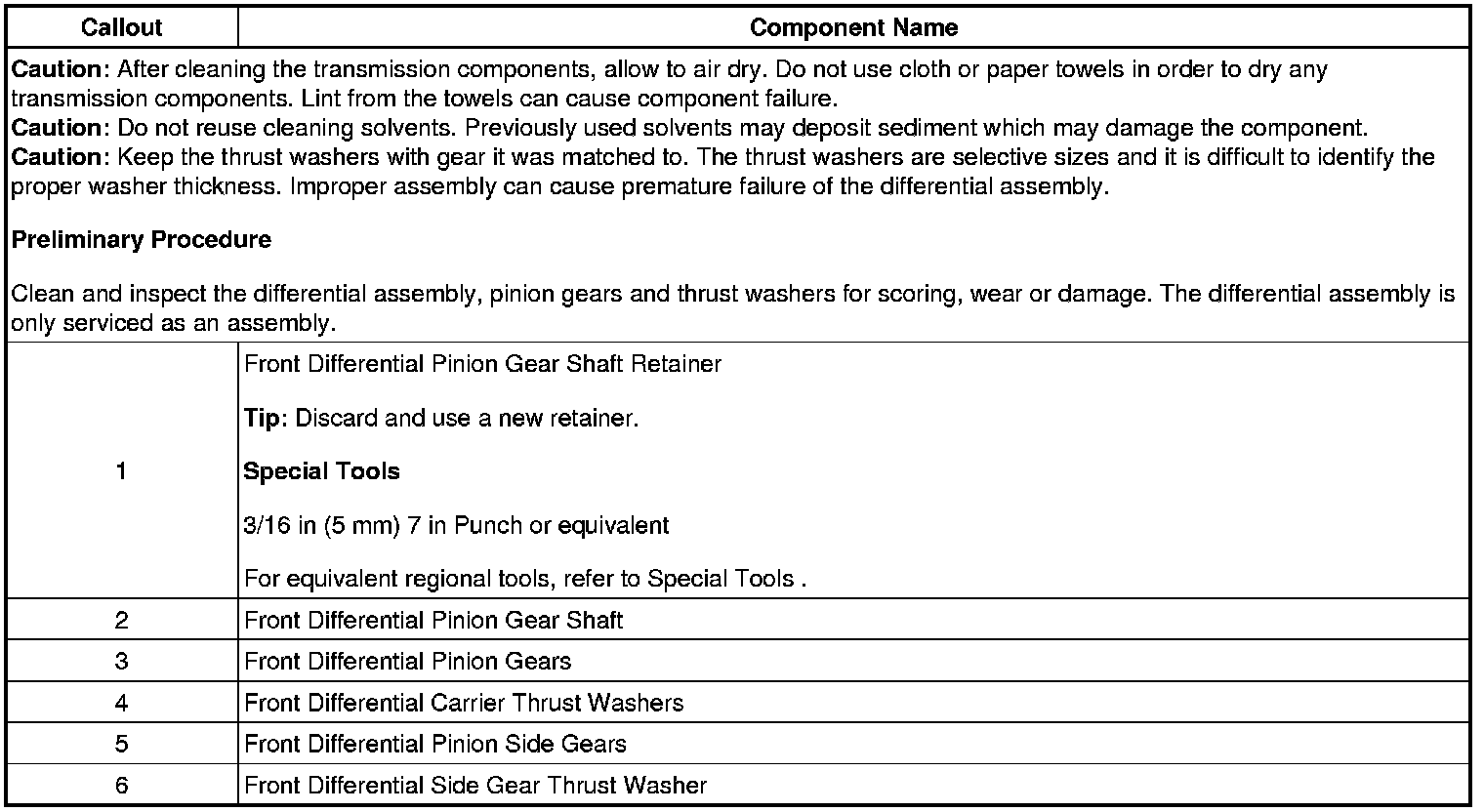

Front Differential Carrier Cleaning and Inspection
Front
Differential Carrier
Cleaning and Inspection
fig_refgc09routlC-1737890
