Home >> Chevy Truck >> 2009 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Testing and Inspection >> Scan Tool Testing and Procedures >> Fuel Pump Flow Control Module Scan Tool Information

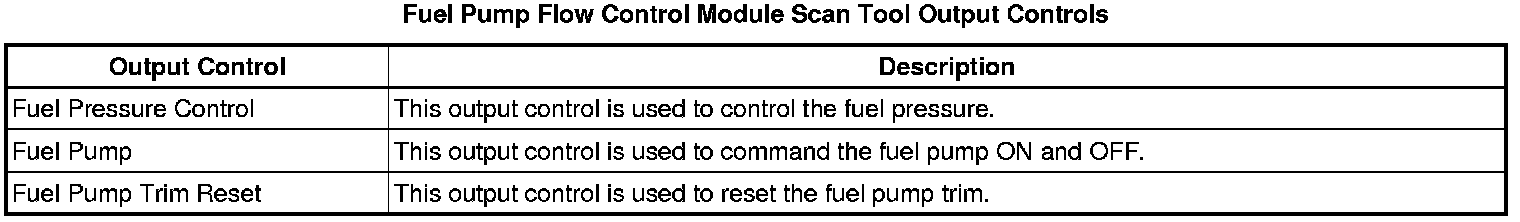

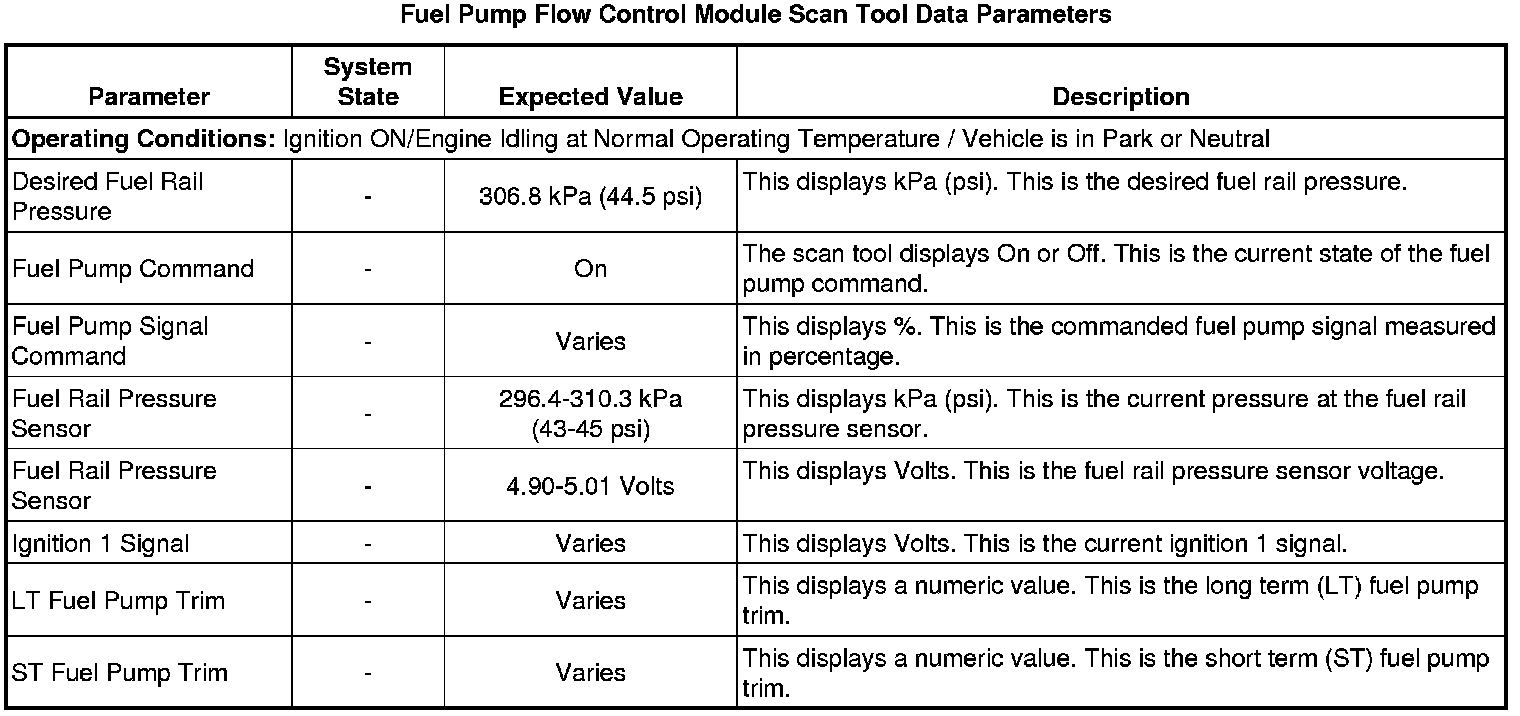

Fuel Pump Flow Control Module Scan Tool Information




Fuel Pump Flow Control Module Scan Tool Information
