Connector Views




Component Connector End Views

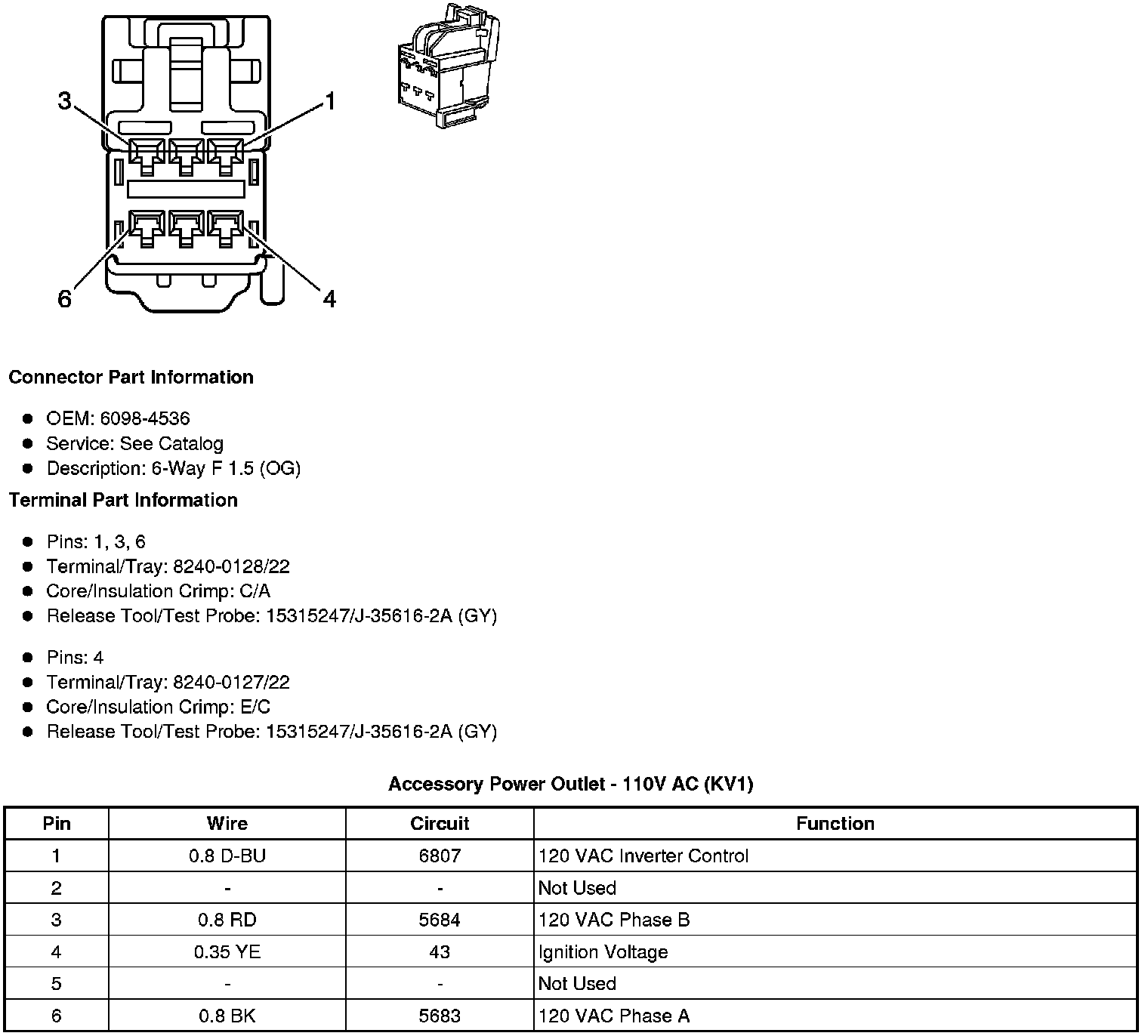

Accessory Power Outlet - 110V AC (KV1)

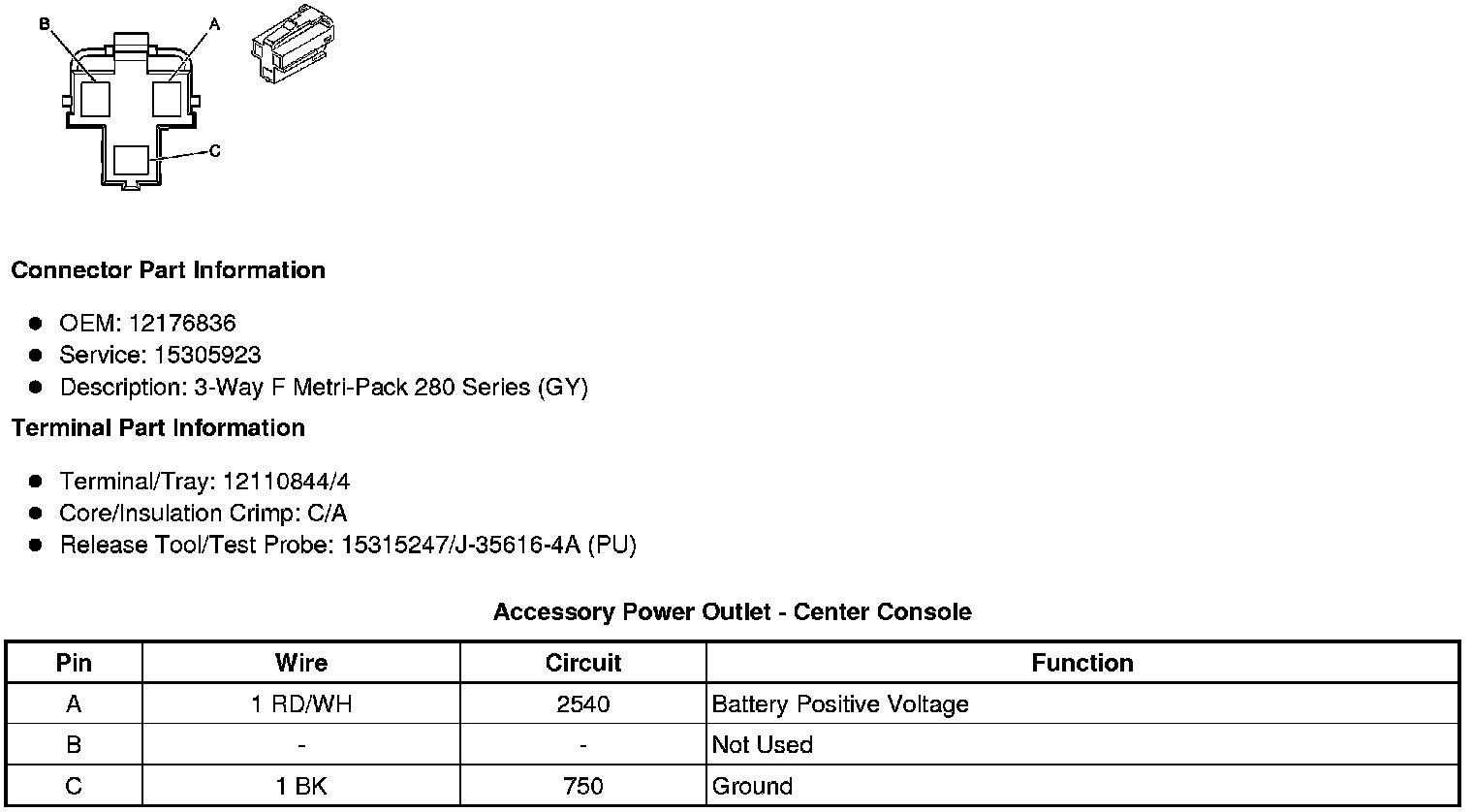

Accessory Power Outlet - Center Console

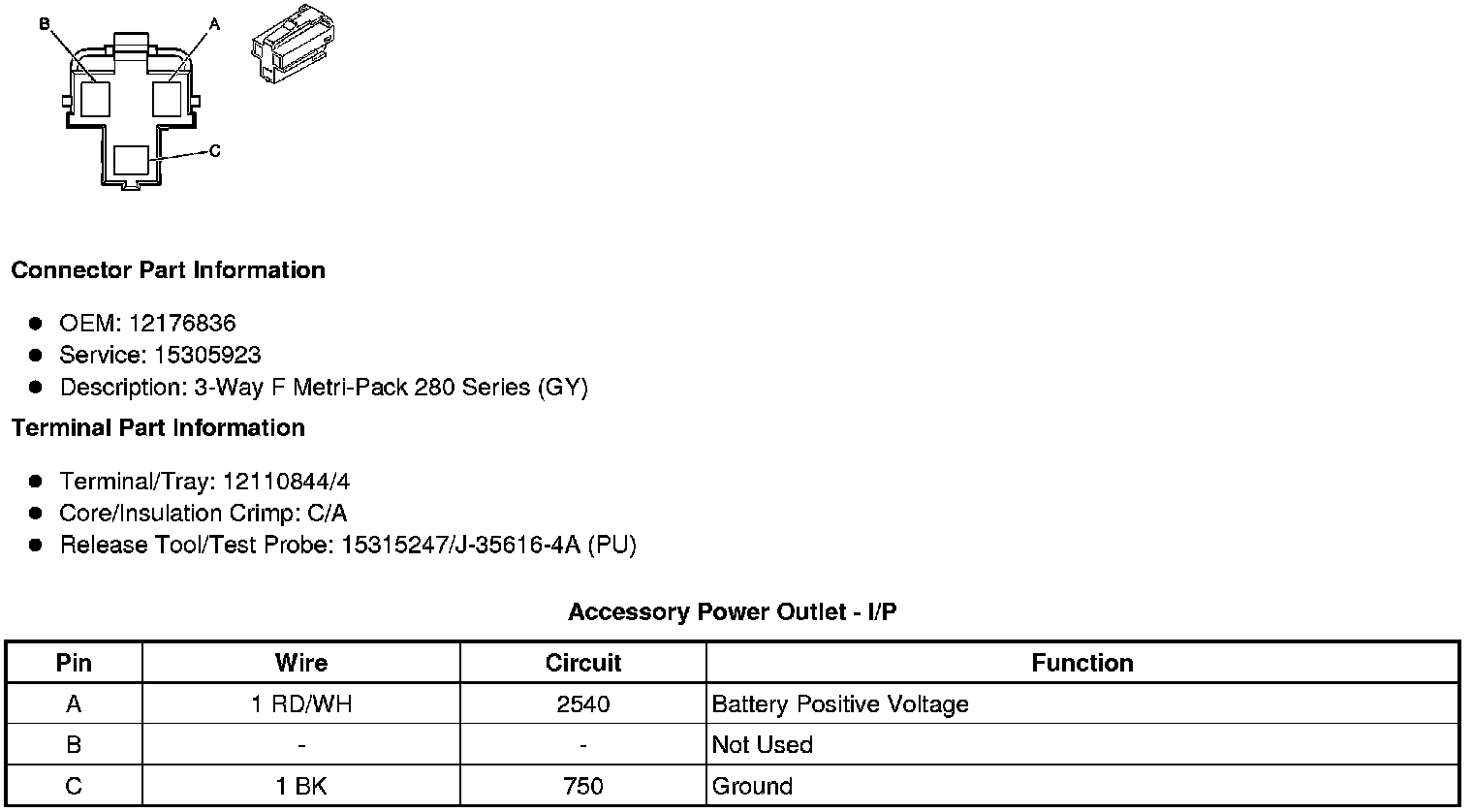

Accessory Power Outlet - I/P

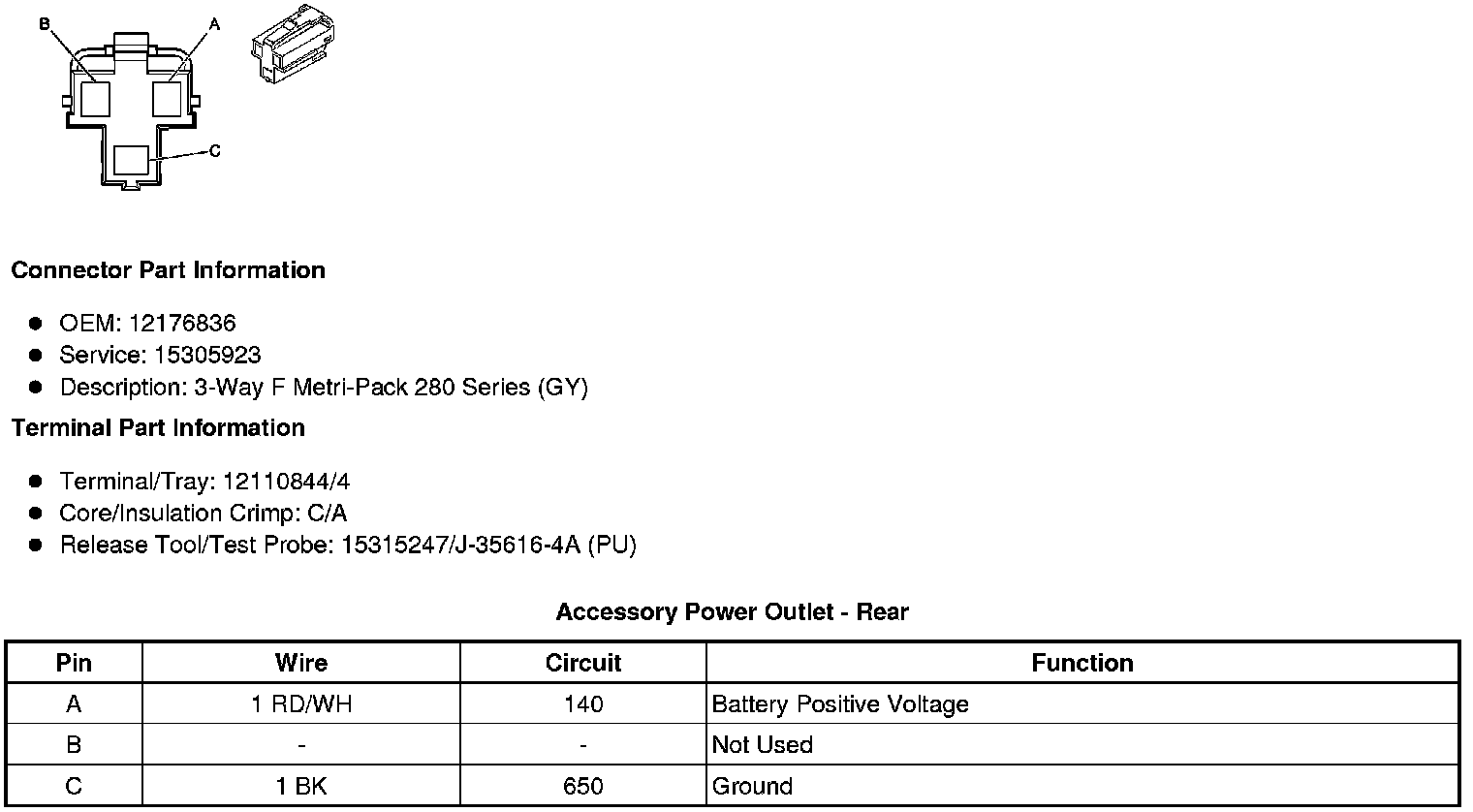

Accessory Power Outlet - Rear

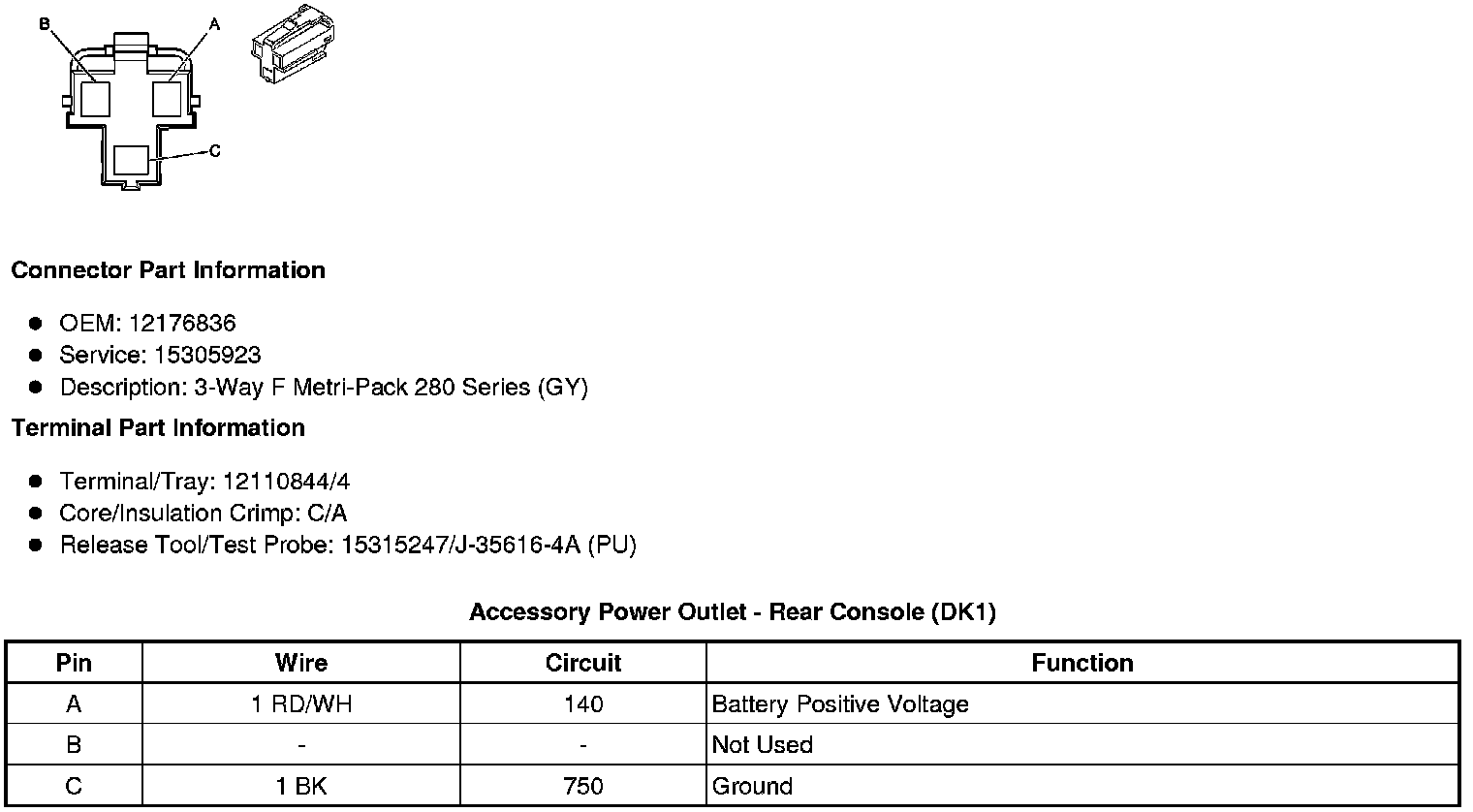

Accessory Power Outlet - Rear Console (DK1)
