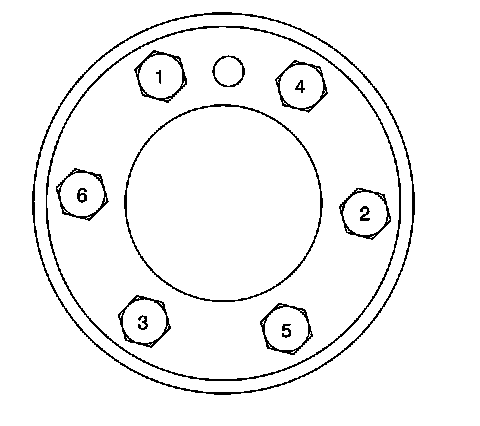

Flex Plate Torque & Sequence

ENGINE FLYWHEEL BOLT





First Pass 30 Nm (22 lb ft)
Final Pass 45 Degrees
