Power Door Lock Switch: Diagrams




Component Connector End Views

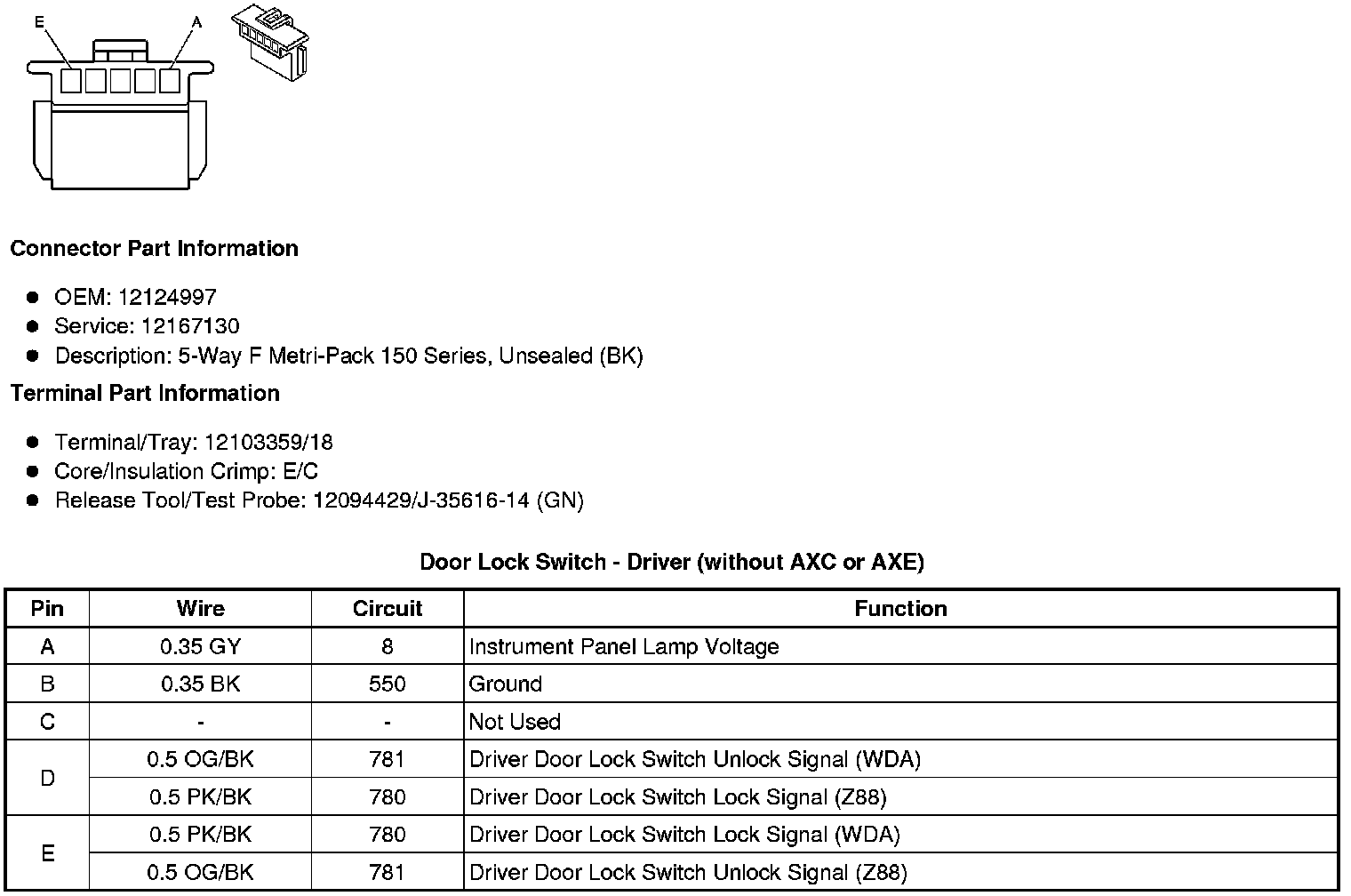

Door Lock Switch - Driver (without AXC or AXE)

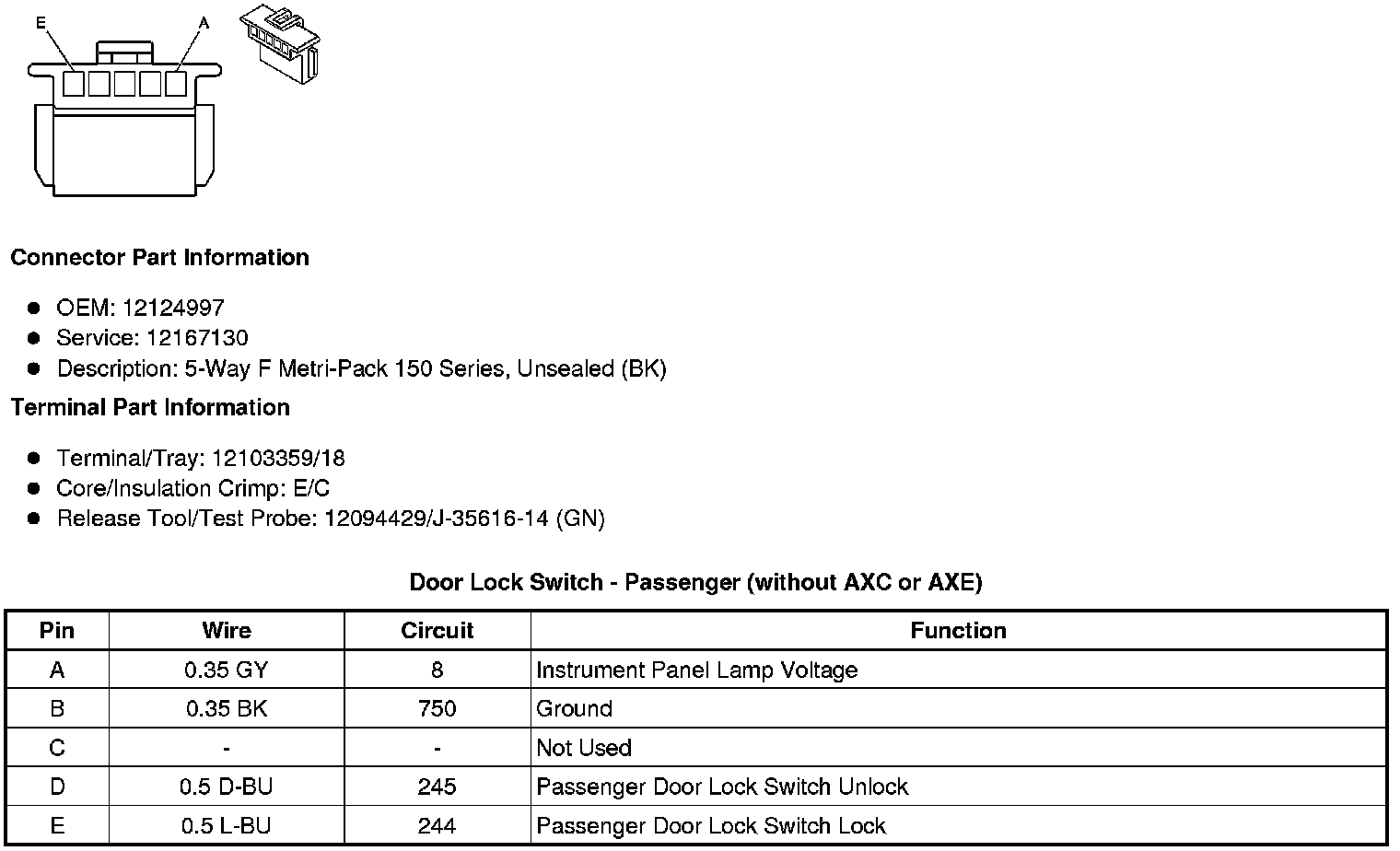

Door Lock Switch - Passenger (without AXC or AXE)
