Home >> Chevy Truck >> 2009 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Steering Mounted Controls Assembly >> Diagrams

Steering Mounted Controls Assembly: Diagrams




Component Connector End Views

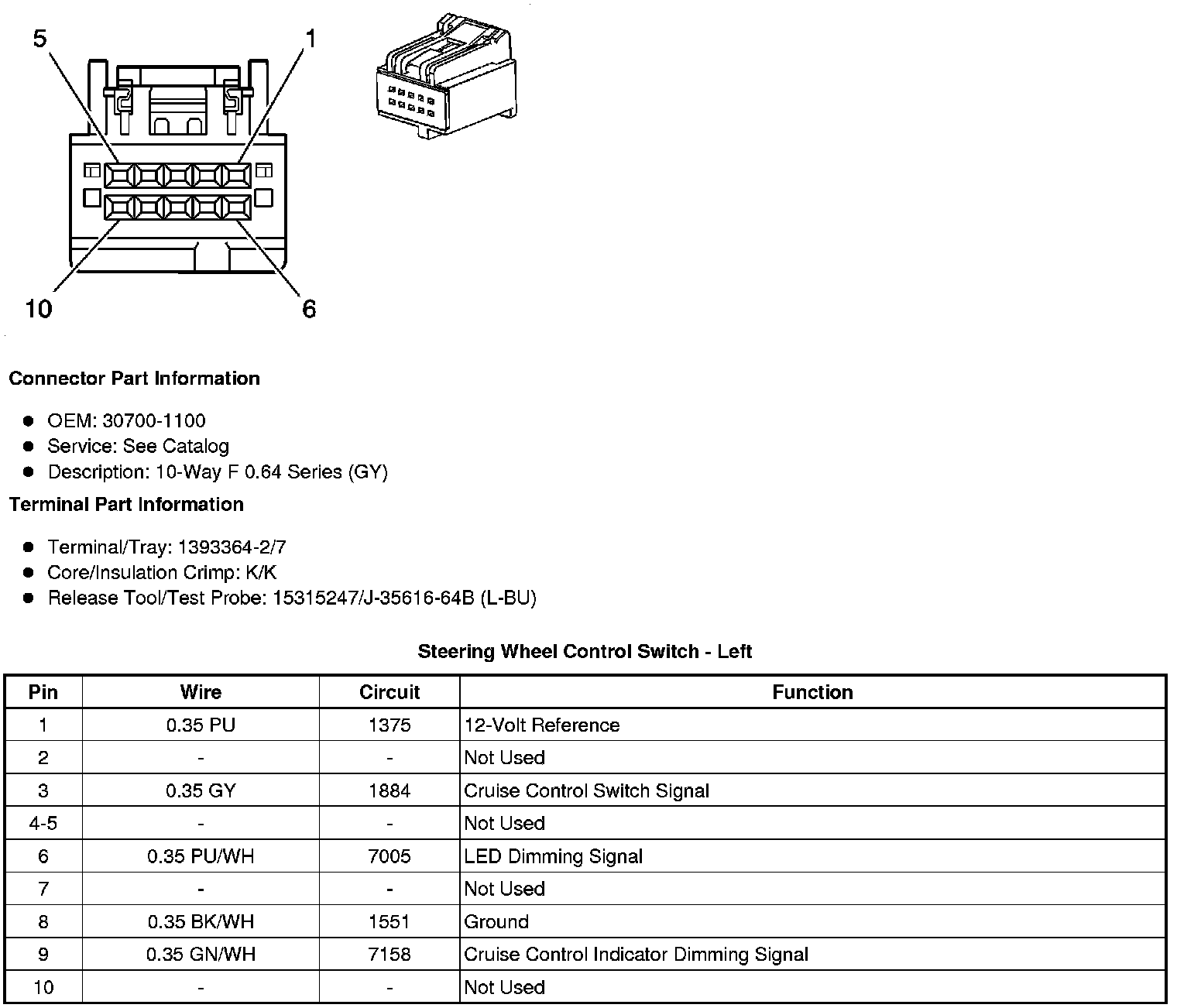

Steering Wheel Control Switch - Left






Steering Wheel Control Switch - Right (UK3)
