Parking Assist Distance Sensor: Diagrams




Component Connector End Views

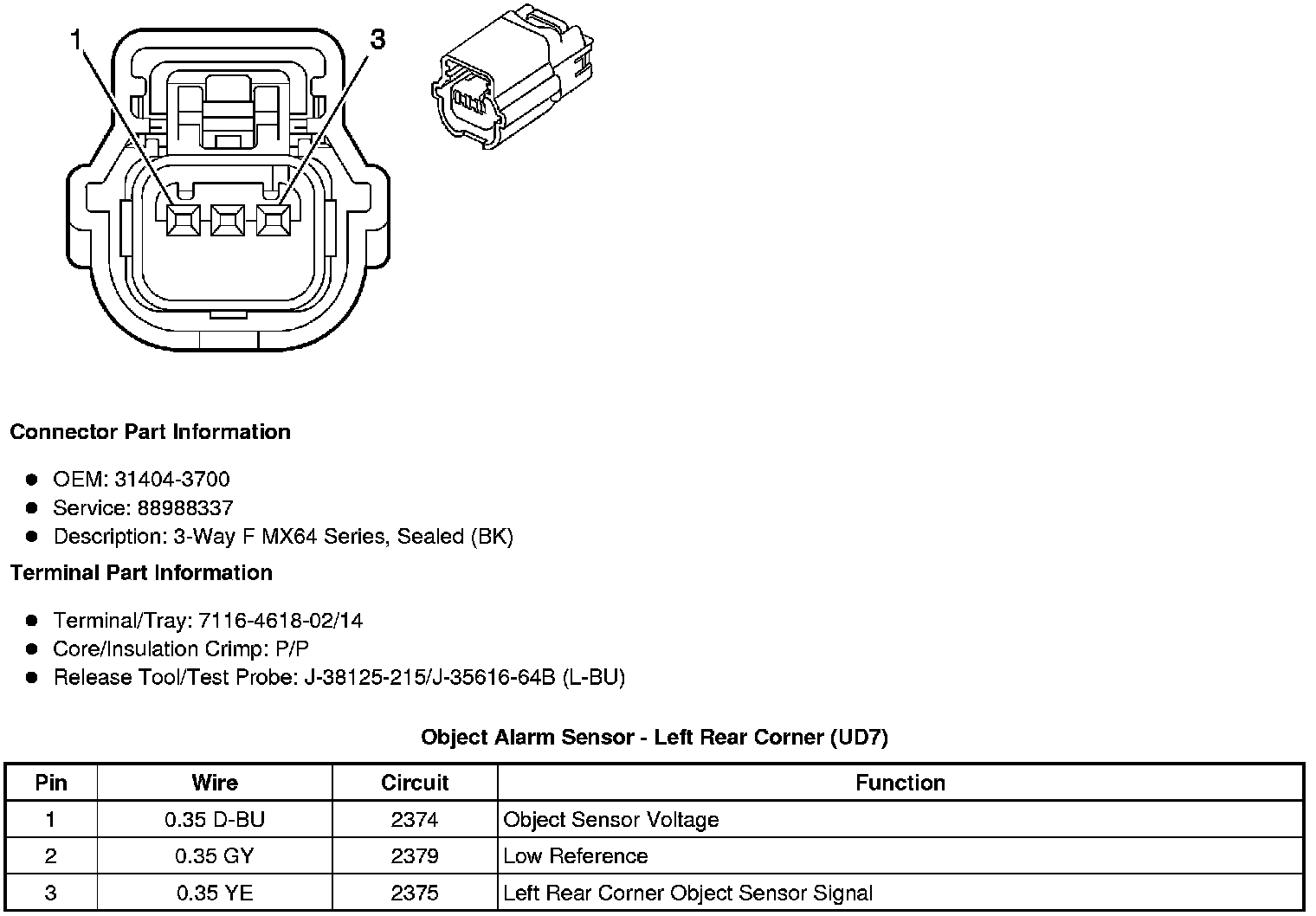

Object Alarm Sensor - Left Rear Corner (UD7)

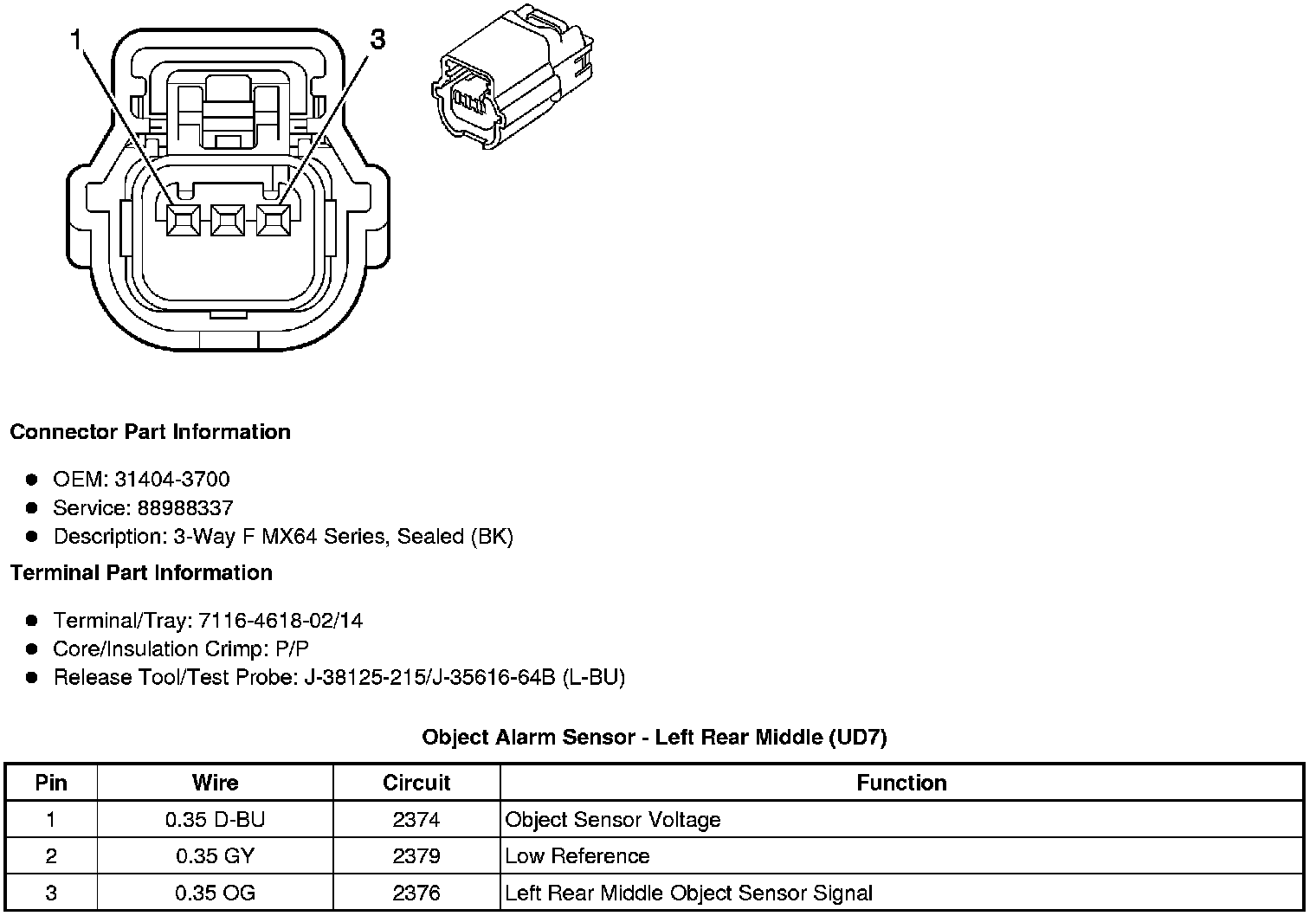

Object Alarm Sensor - Left Rear Middle (UD7)

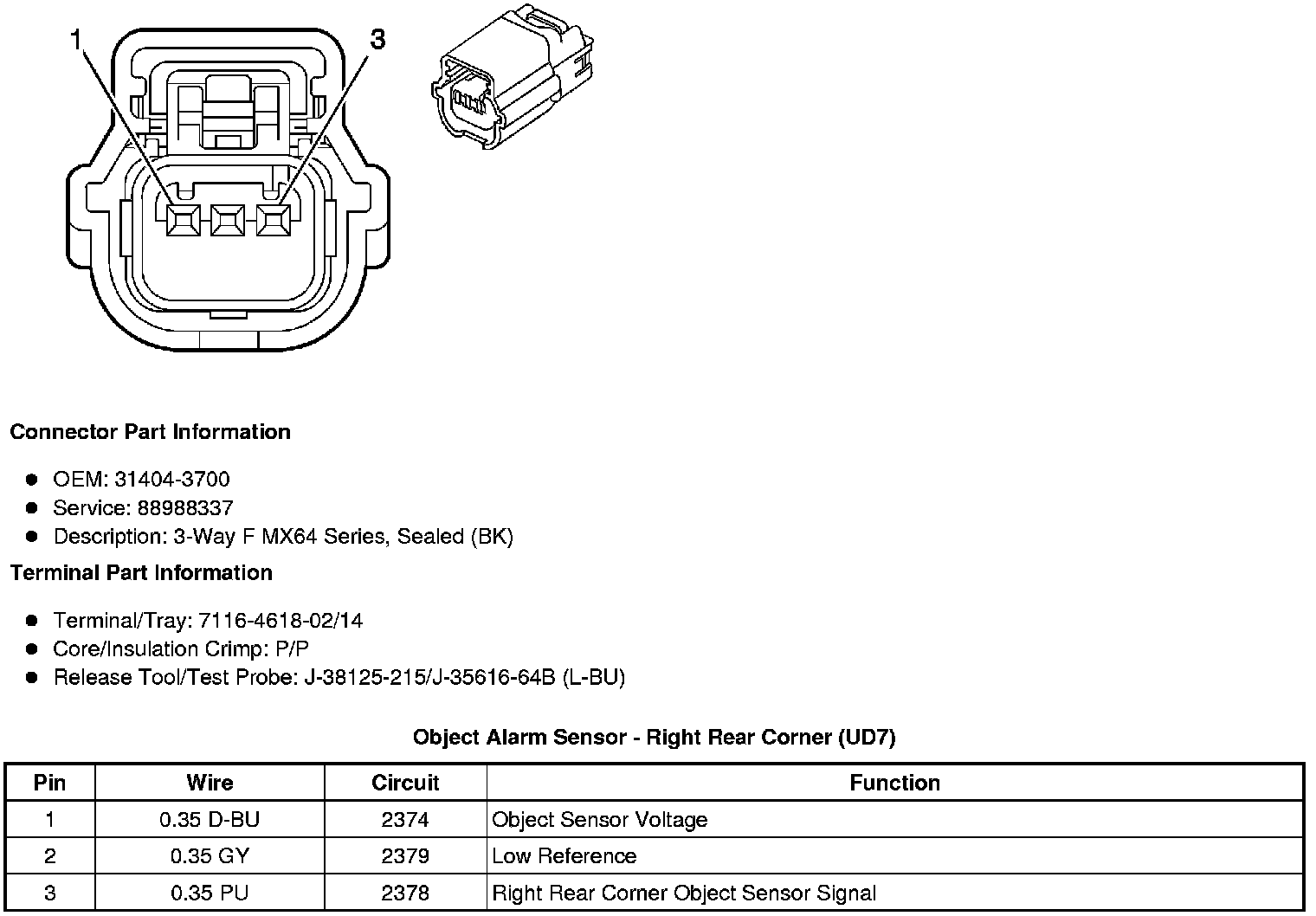

Object Alarm Sensor - Right Rear Corner (UD7)

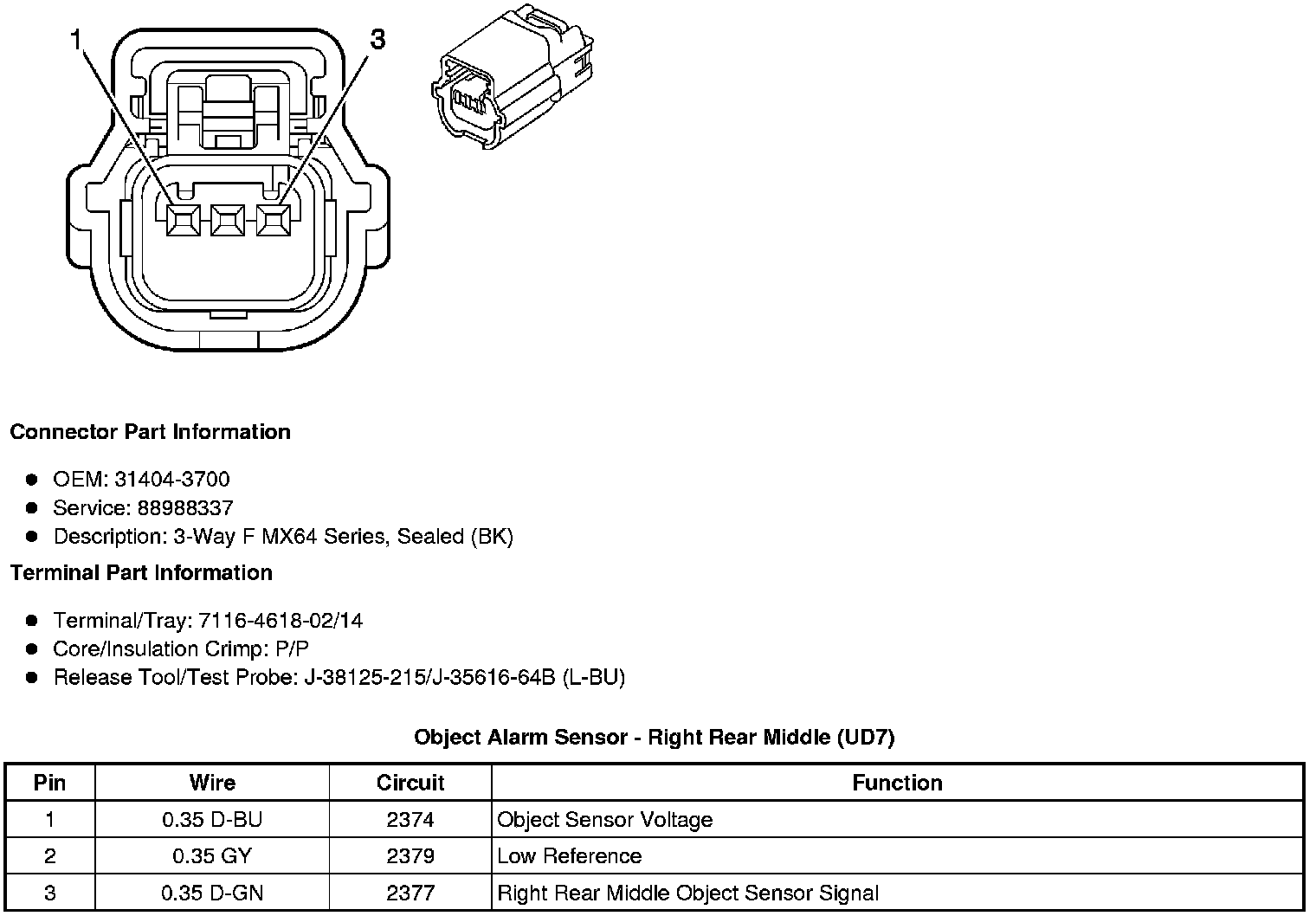

Object Alarm Sensor - Right Rear Middle (UD7)
