Metal Collar Quick Connect Fitting Service

Metal Collar Quick Connect Fitting Service

Special Tools

J 37088-A - Fuel Line Disconnect Tool Set

Removal Procedure


Warning: Refer to Gasoline/Gasoline Vapors Warning (Service Precautions).




1. Relieve the fuel system pressure. Refer to the Fuel Pressure Relief (With CH-48027) (Fuel Pressure Relief (With CH-48027))Fuel Pressure Relief (Without CH-48027) (Fuel Pressure Relief (Without CH-48027)).

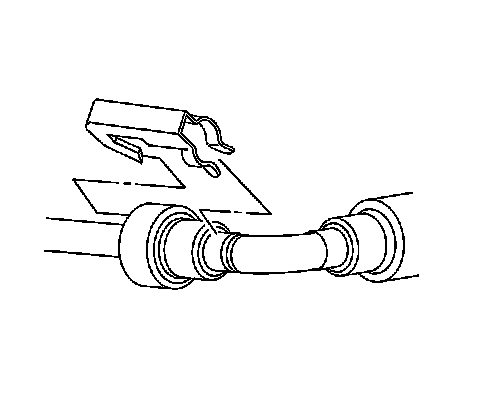

2. Remove the fuel feed line quick connect fitting retainer.





Warning: Refer to Gasoline/Gasoline Vapors Warning (Service Precautions).

Caution: Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Caution (Service Precautions).

3. Blow dirt out of the fitting using compressed air.




4. Choose the correct tool from the J 37088-A - Tool Set for the size of the fitting. Insert the tool into the female connector, then push inward in order to release the locking tabs.





Warning: Refer to Relieving Fuel Pressure Warning (Service Precautions).

5. Pull the connection apart.
6. Use a clean shop towel in order to wipe off the male pipe end.
7. Inspect both ends of the fitting for dirt and burrs. Clean or replace the components as required.

Installation Procedure






Warning: Refer to Fuel Pipe Fitting Warning (Service Precautions).

1. Apply a few drops of clean engine oil to the male pipe end.




2. Push both sides of the fitting together in order to snap the retaining tabs into place.




3. Once installed, pull on both sides of the fitting in order to make sure the connection is secure.




4. Install the retainer to the quick-connect fitting.
