Trailer Connector/Provision Diagrams




Trailer Connector/Provision Schematics

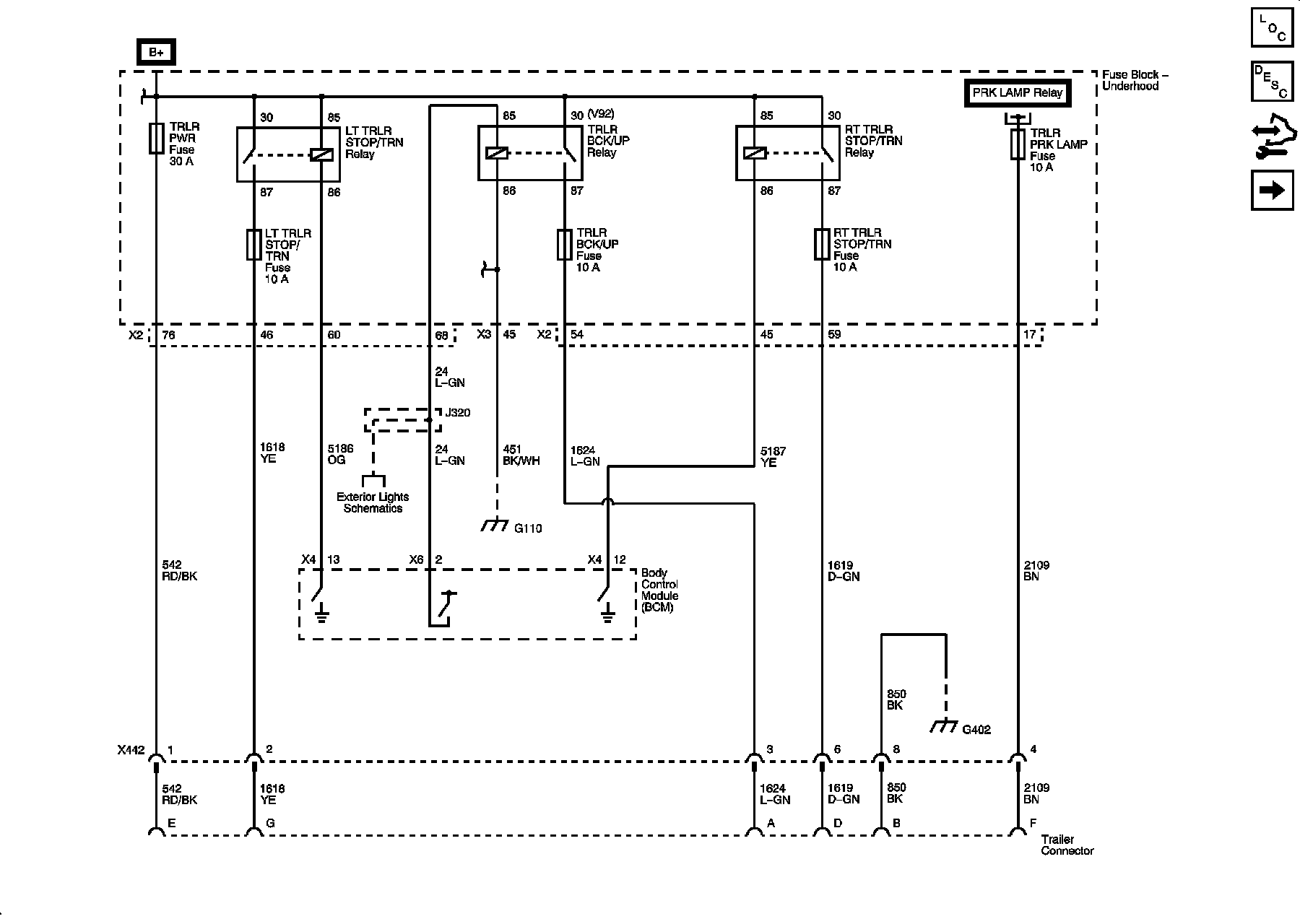

Trailer Connector

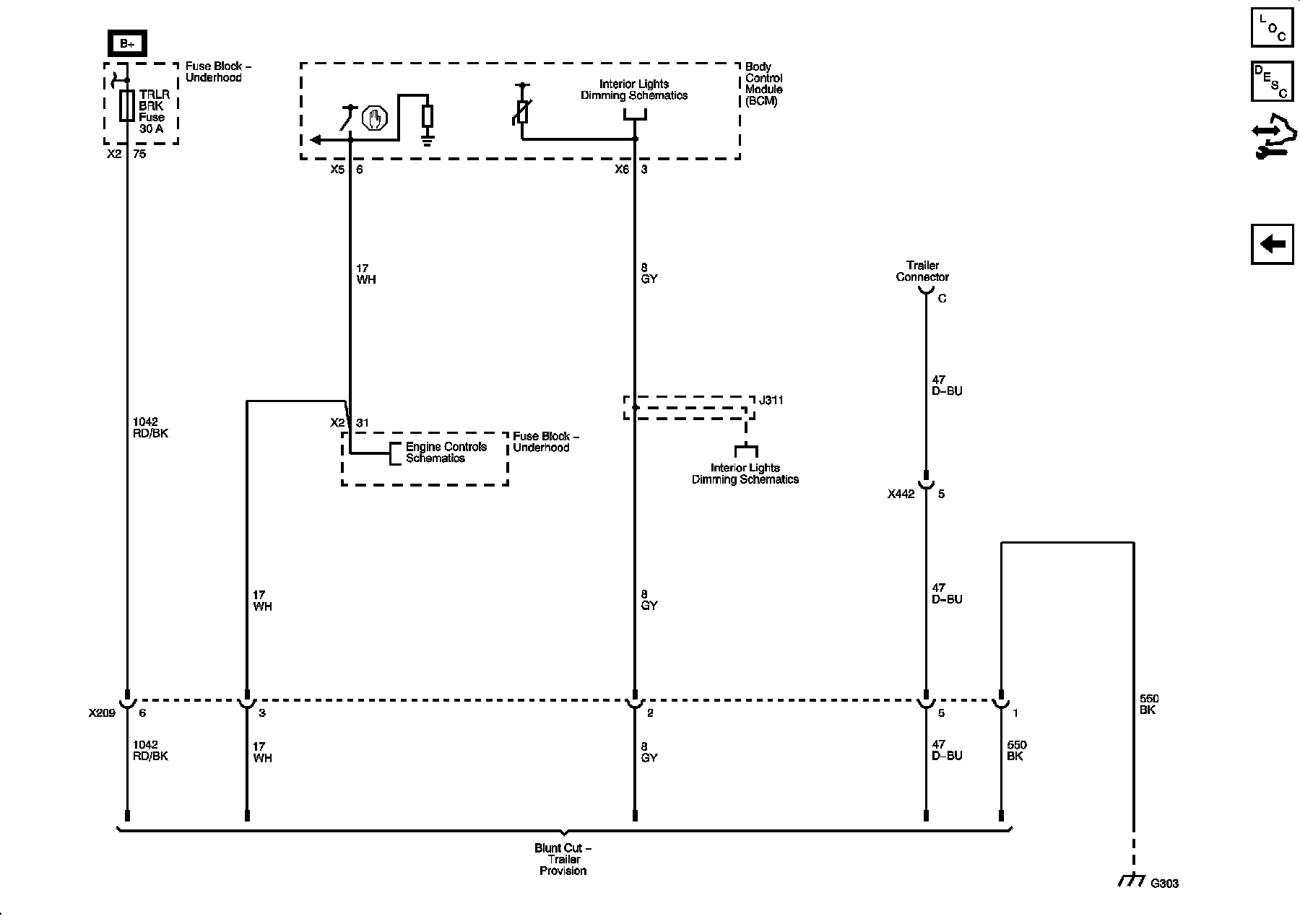

Blunt Cuts
