HVAC - Automatic




HVAC Schematics

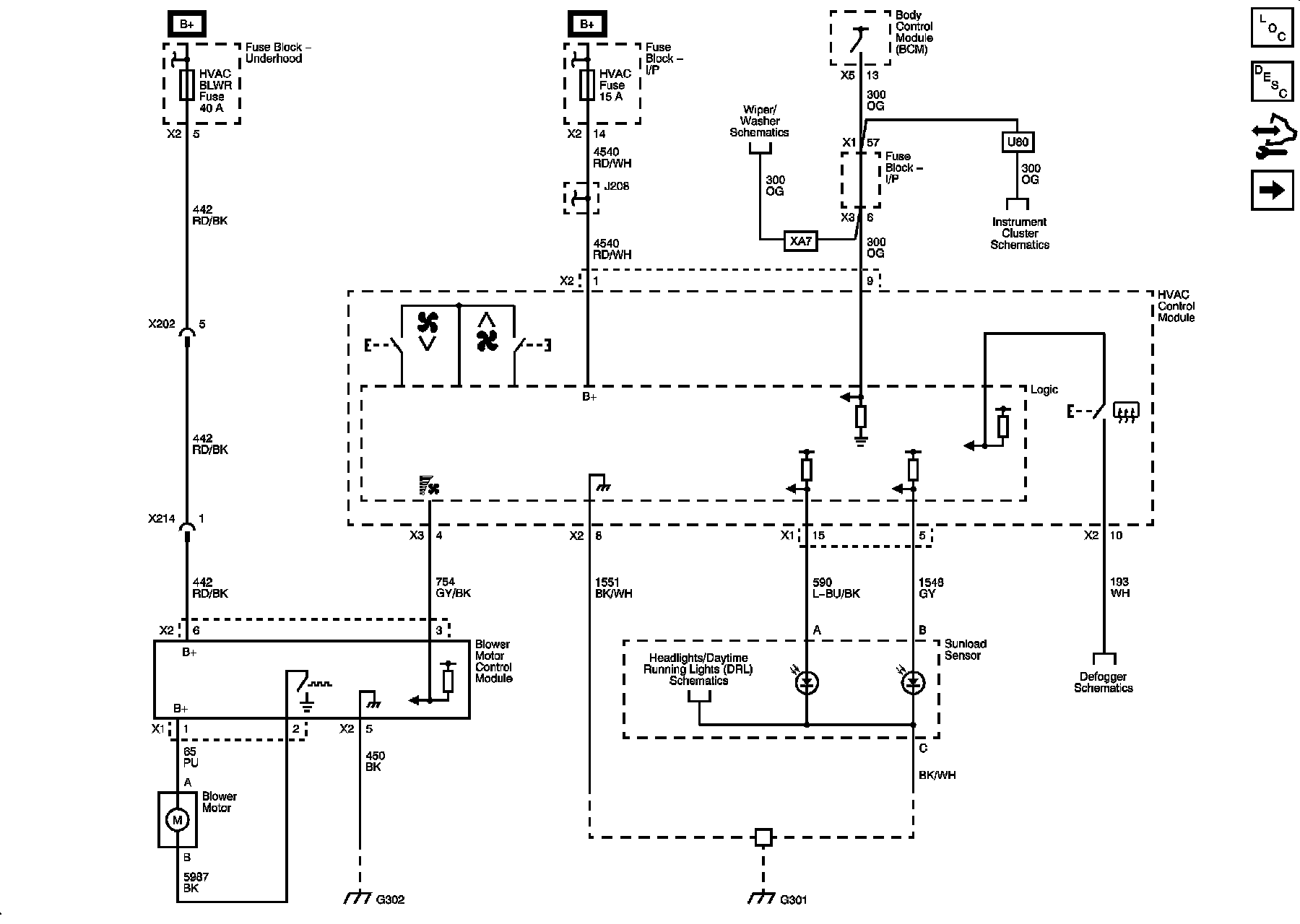

Module Power and Ground, Blower Control, Data Communication and Sunload

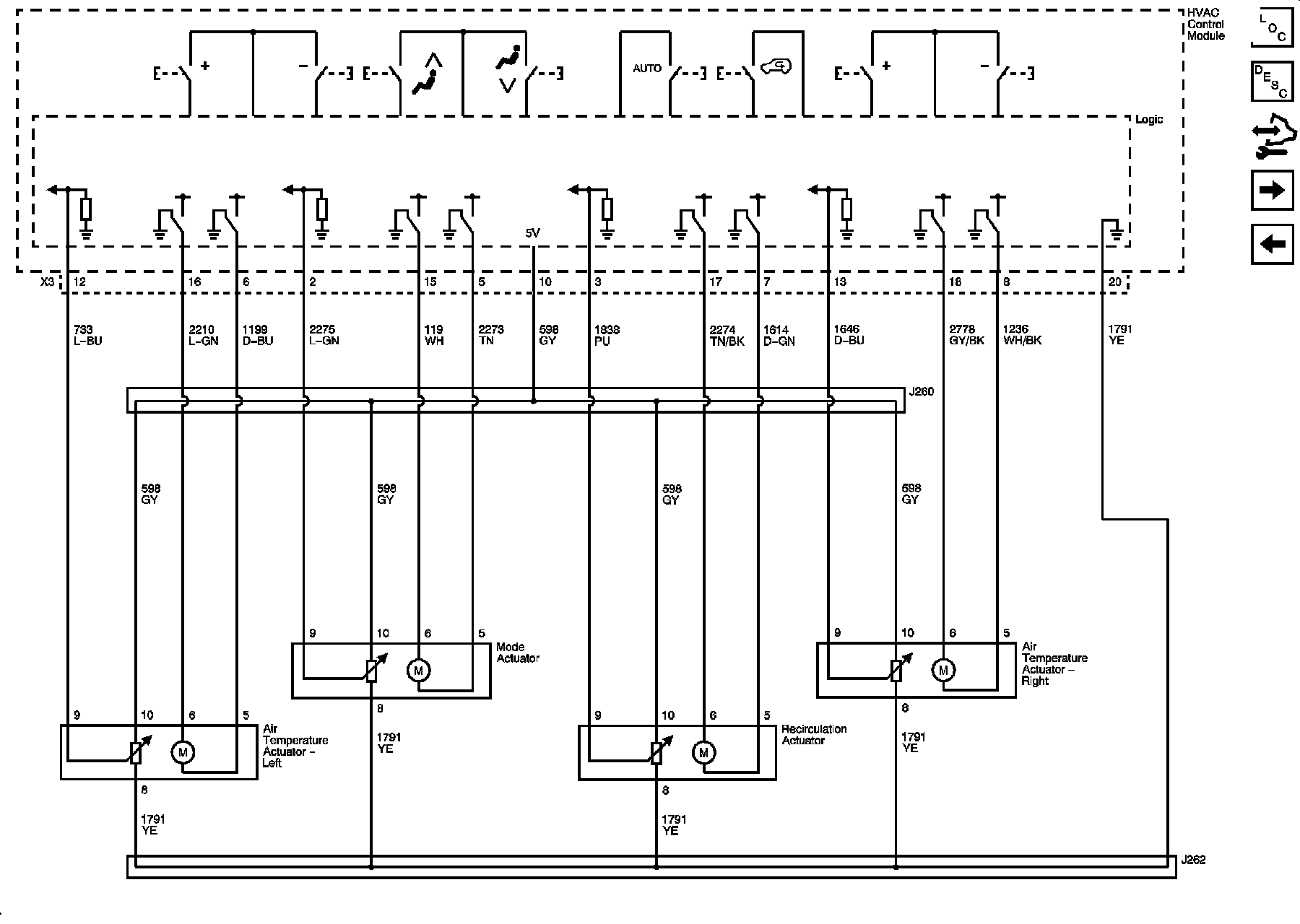

Actuators

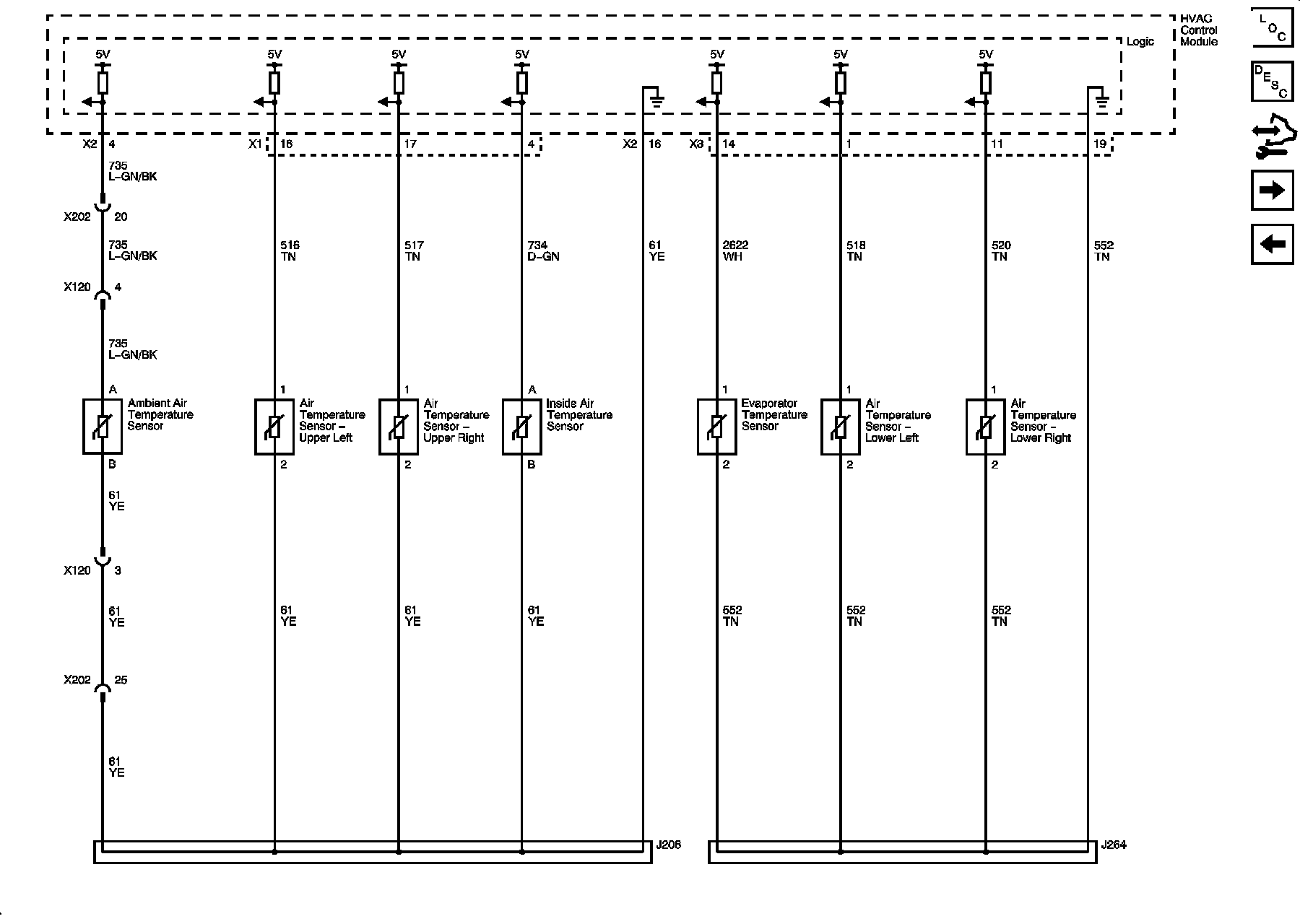

Sensors

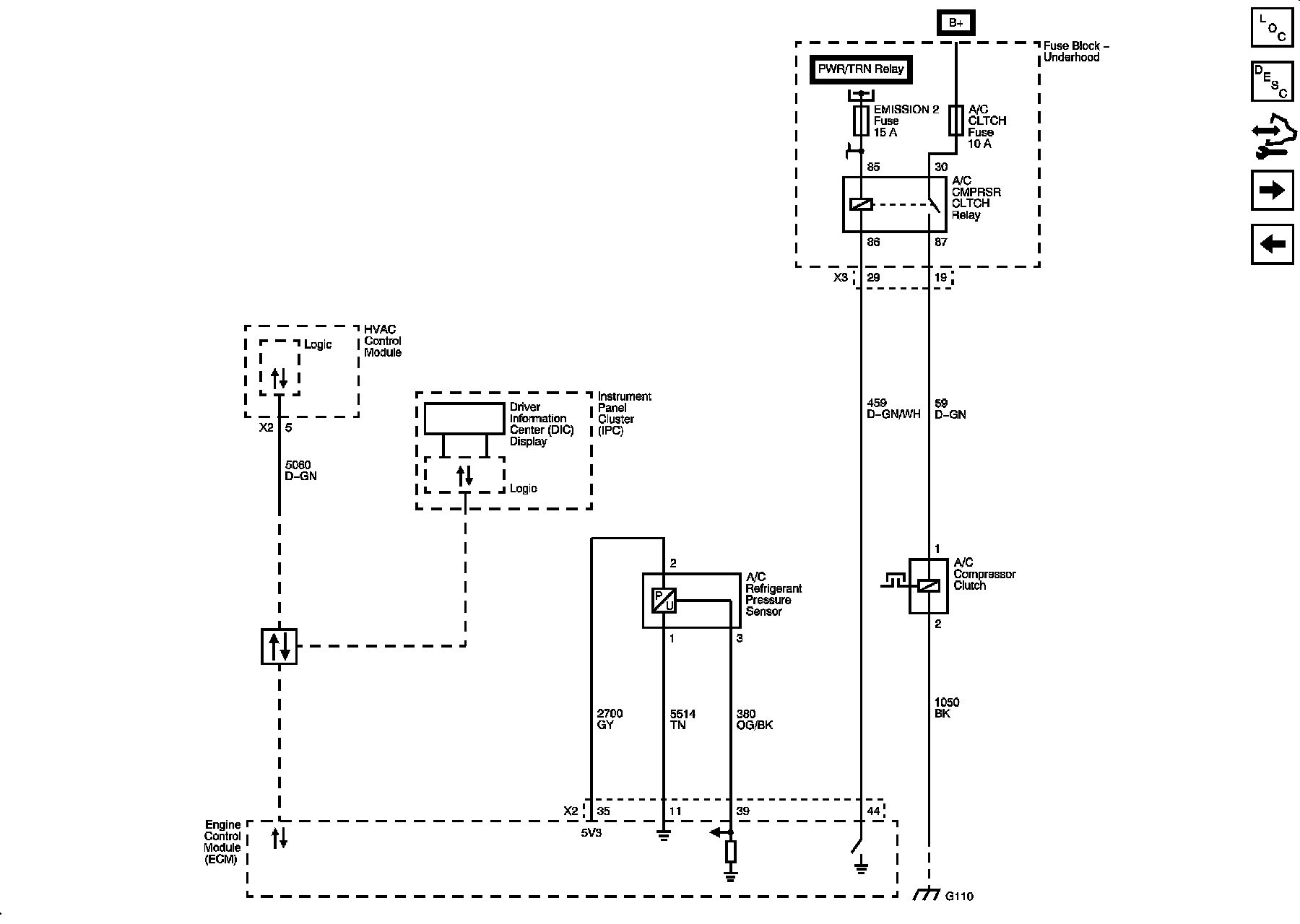

Compressor Controls

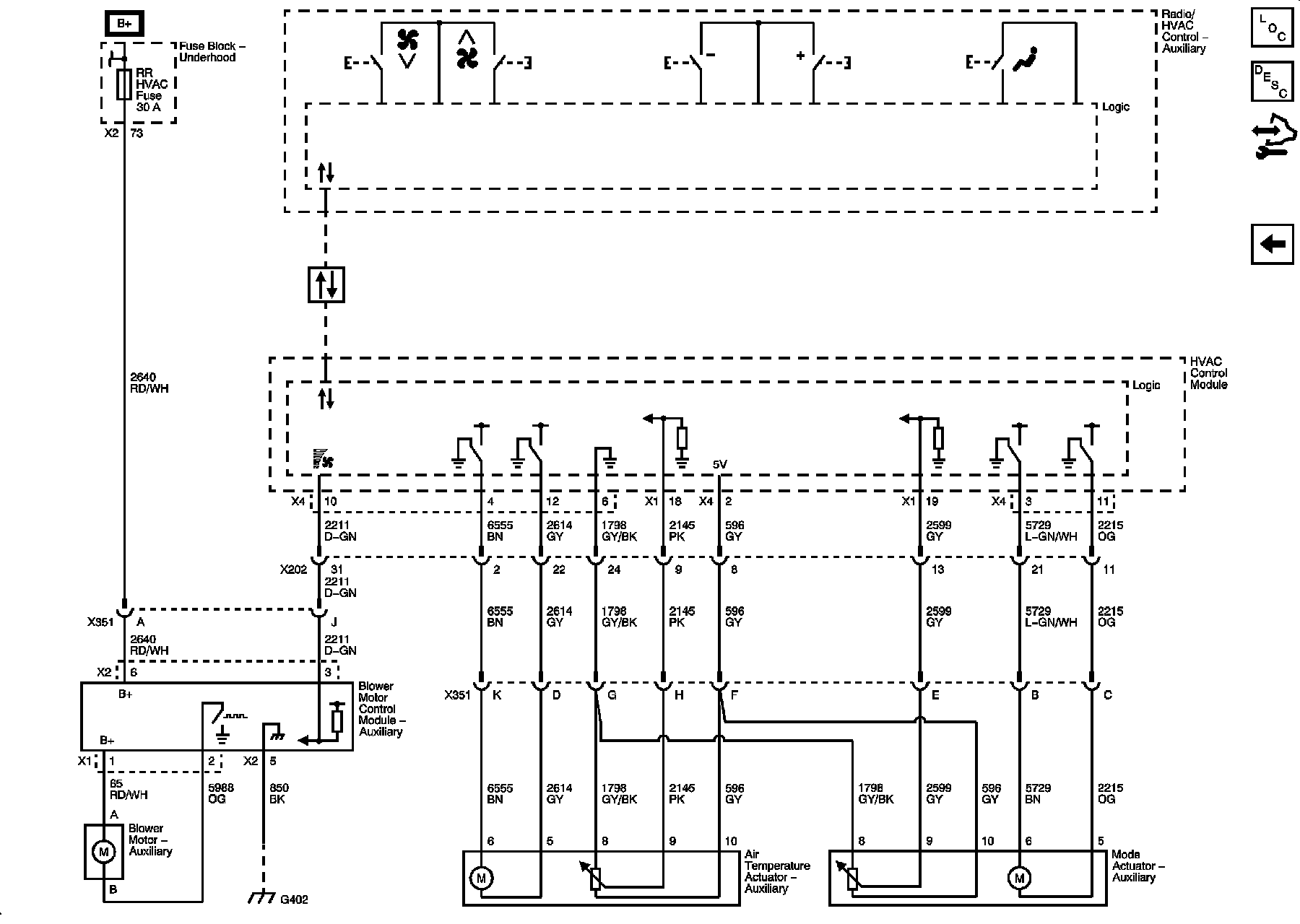

Rear HVAC
