System Diagram




Component Connector End Views

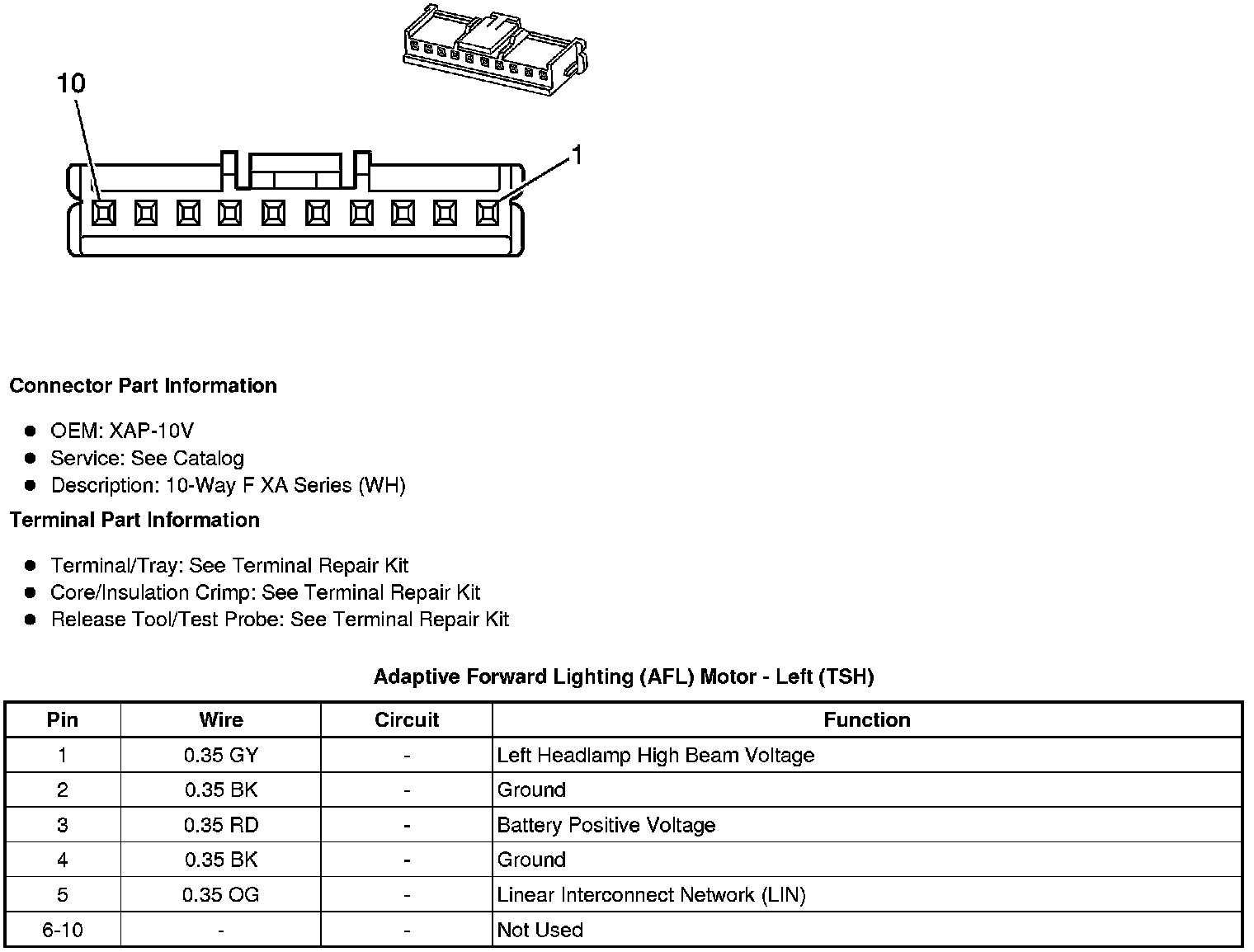

Adaptive Forward Lighting (AFL) Motor - Left (TSH)






Adaptive Forward Lighting (AFL) Motor - Right (TSH)
