Home >> Chevy Truck >> 2009 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Headlamp >> Headlamp Control Module

Headlamp Control Module




Component Connector End Views

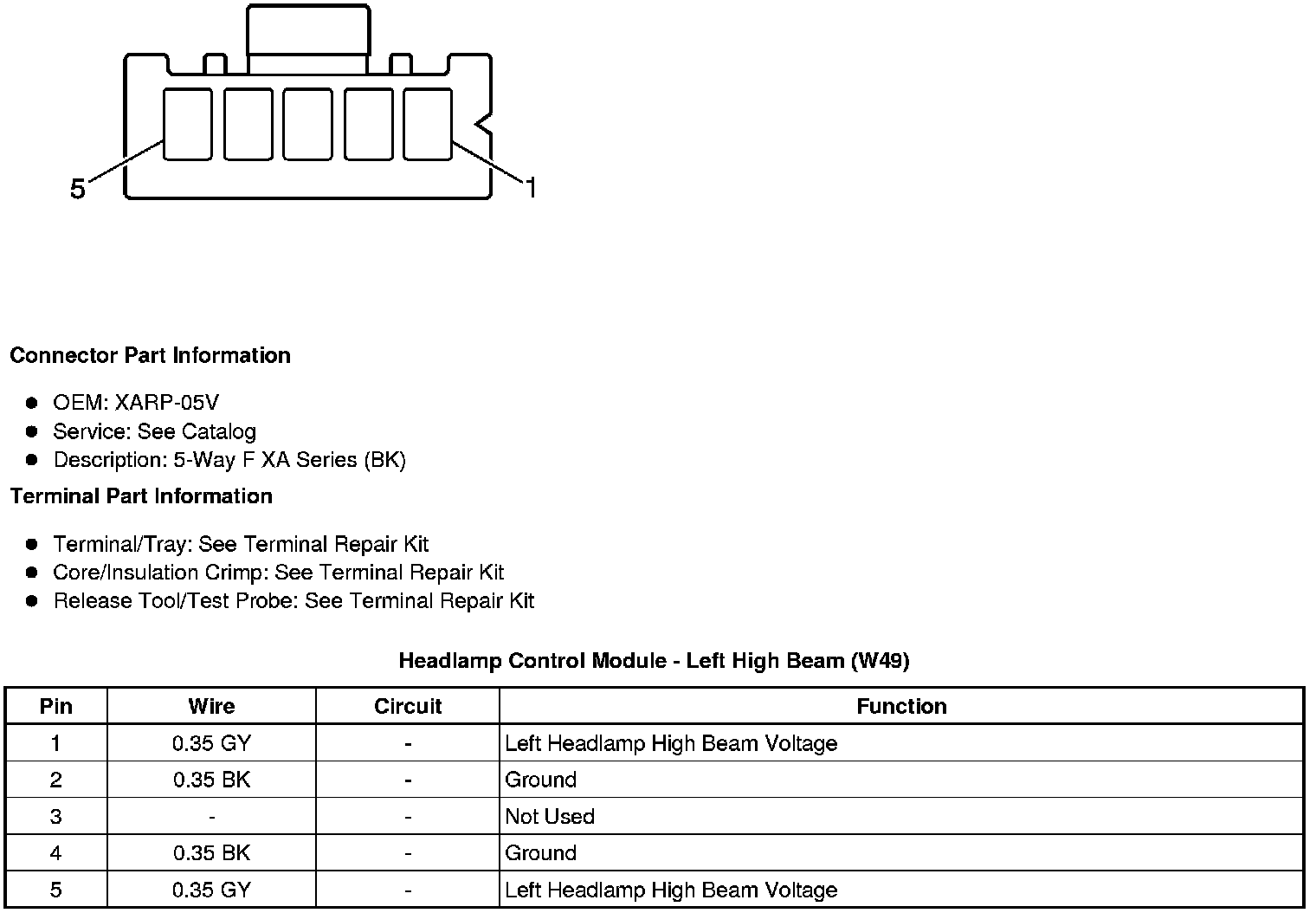

Headlamp Control Module - Left High Beam (W49)






Headlamp Control Module - Right High Beam (W49)

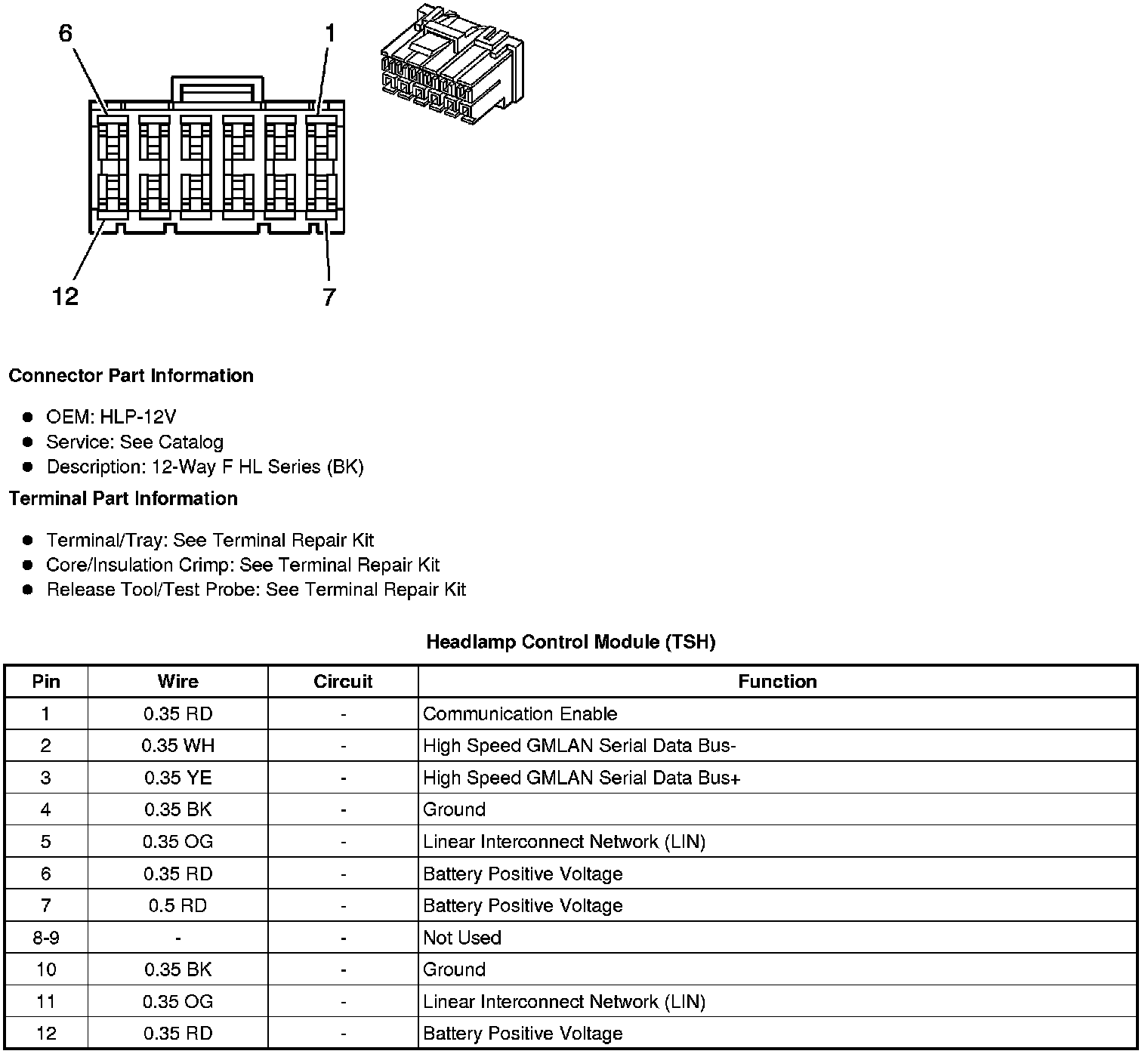

Headlamp Control Module (TSH)
