Seat Temperature Switch: Diagrams




Component Connector End Views

Heated and Cooled Seat Switch - Driver (KB6)

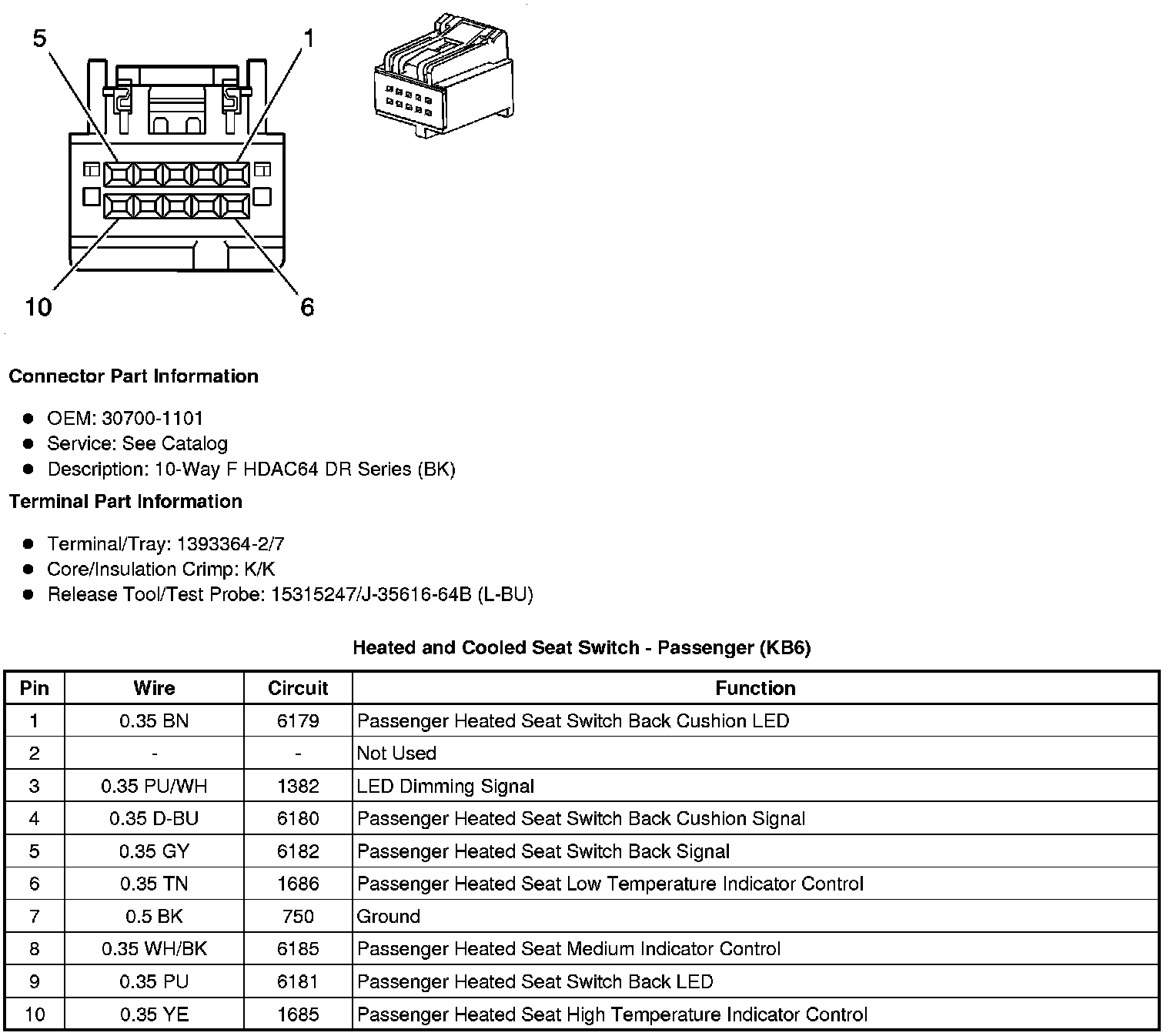

Heated and Cooled Seat Switch - Passenger (KB6)

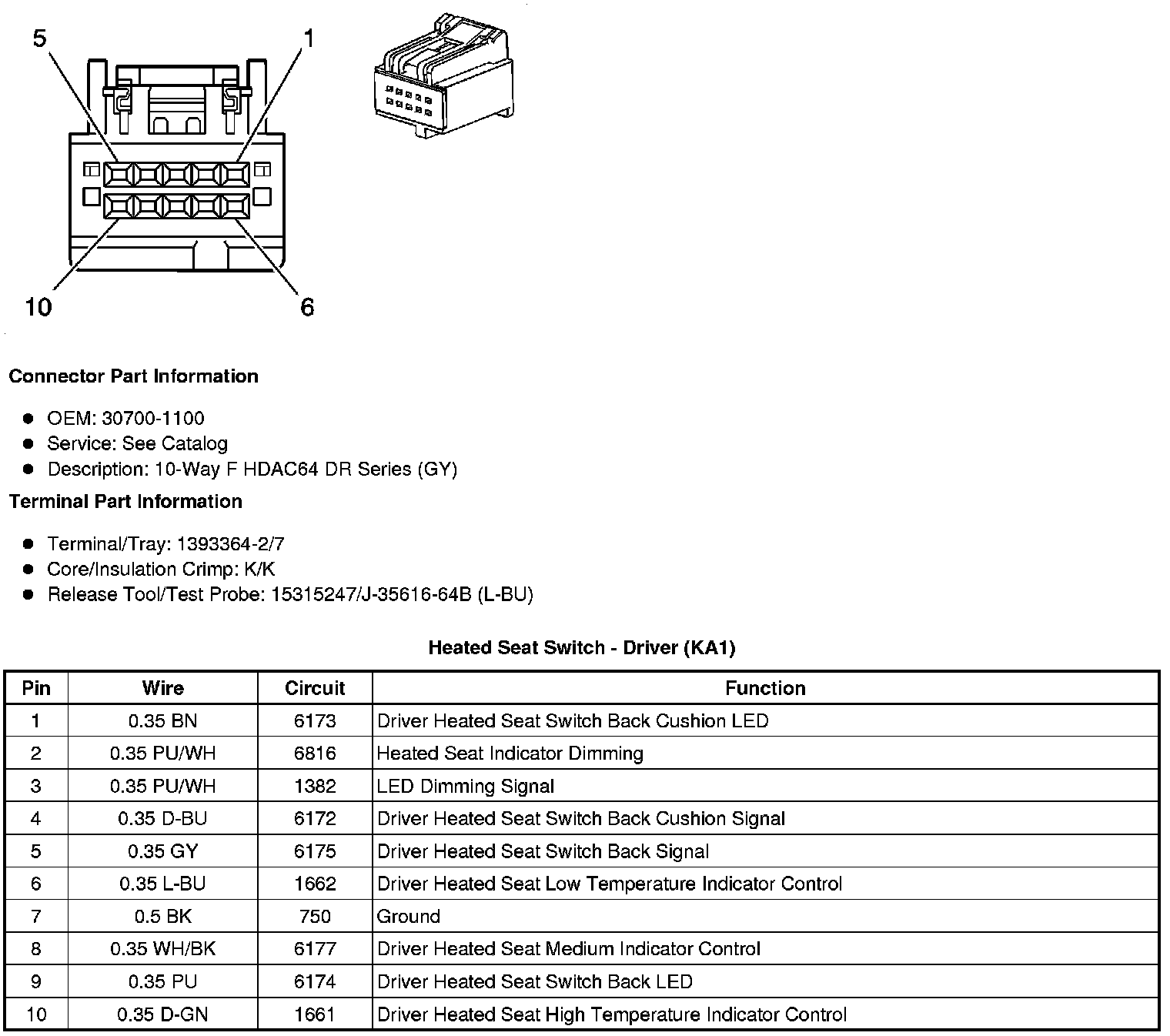

Heated Seat Switch - Driver (KA1)

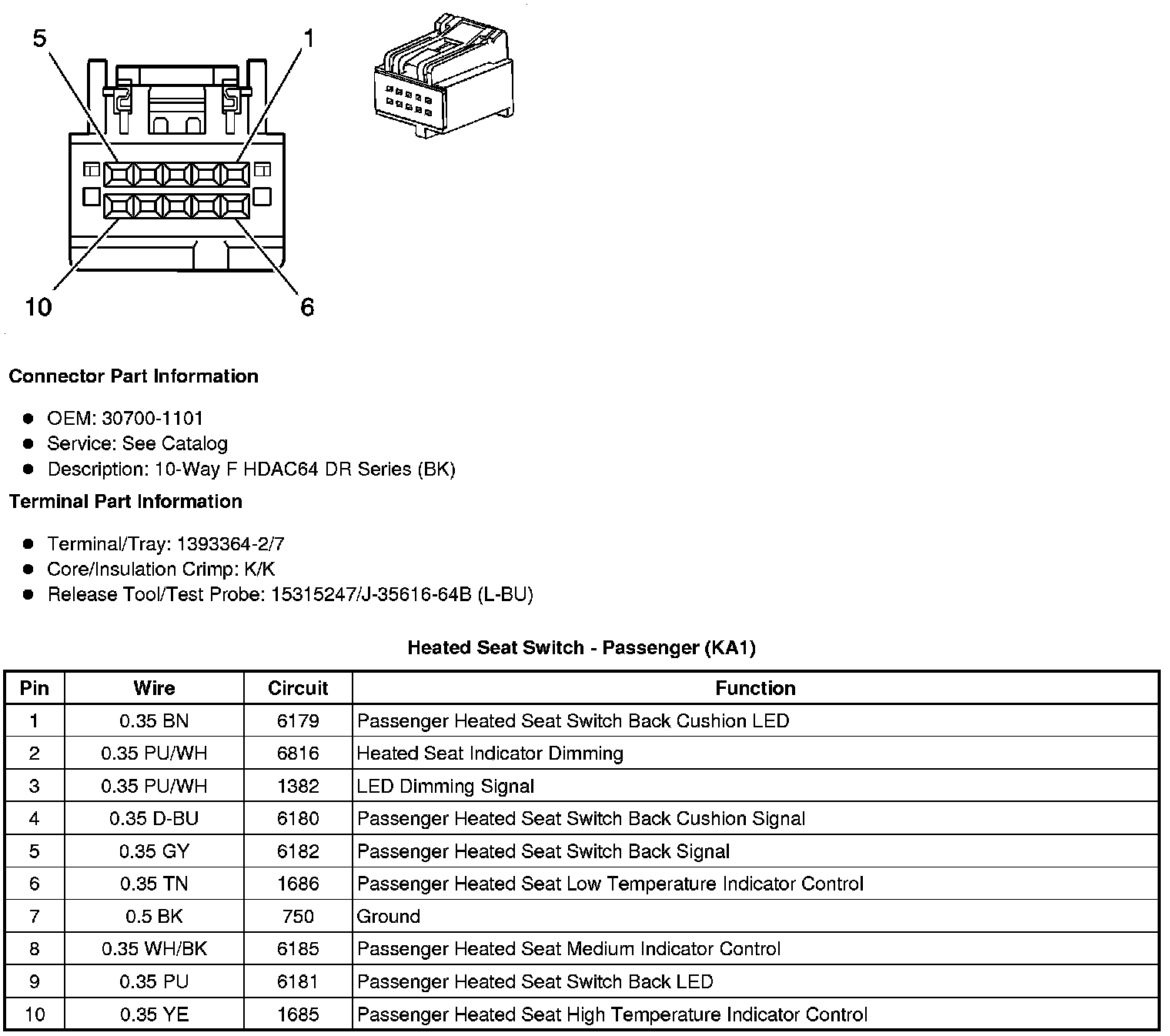

Heated Seat Switch - Passenger (KA1)
