Connector Views




Component Connector End Views

Heated Seat Element - Driver Back (KA1)

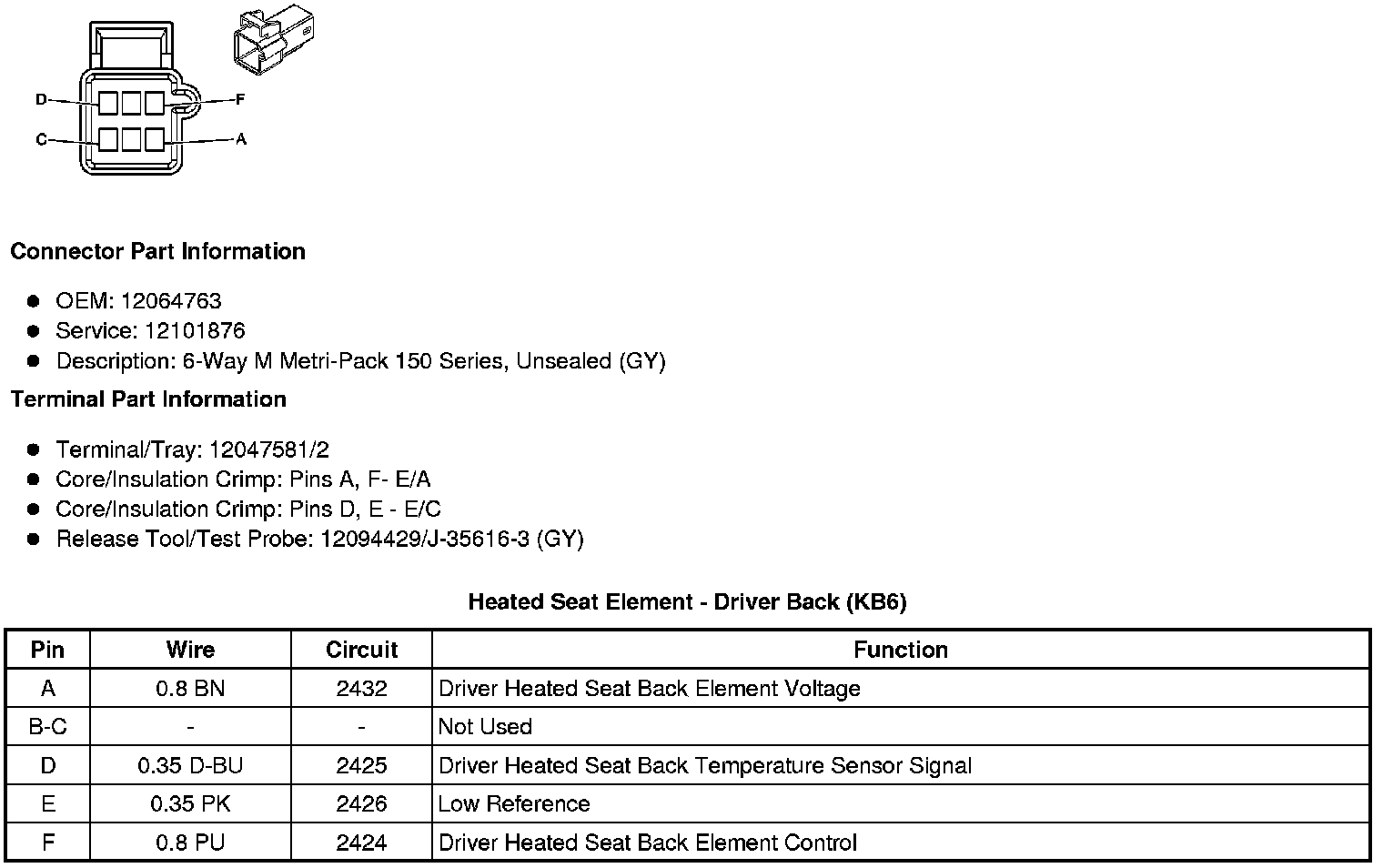

Heated Seat Element - Driver Back (KB6)

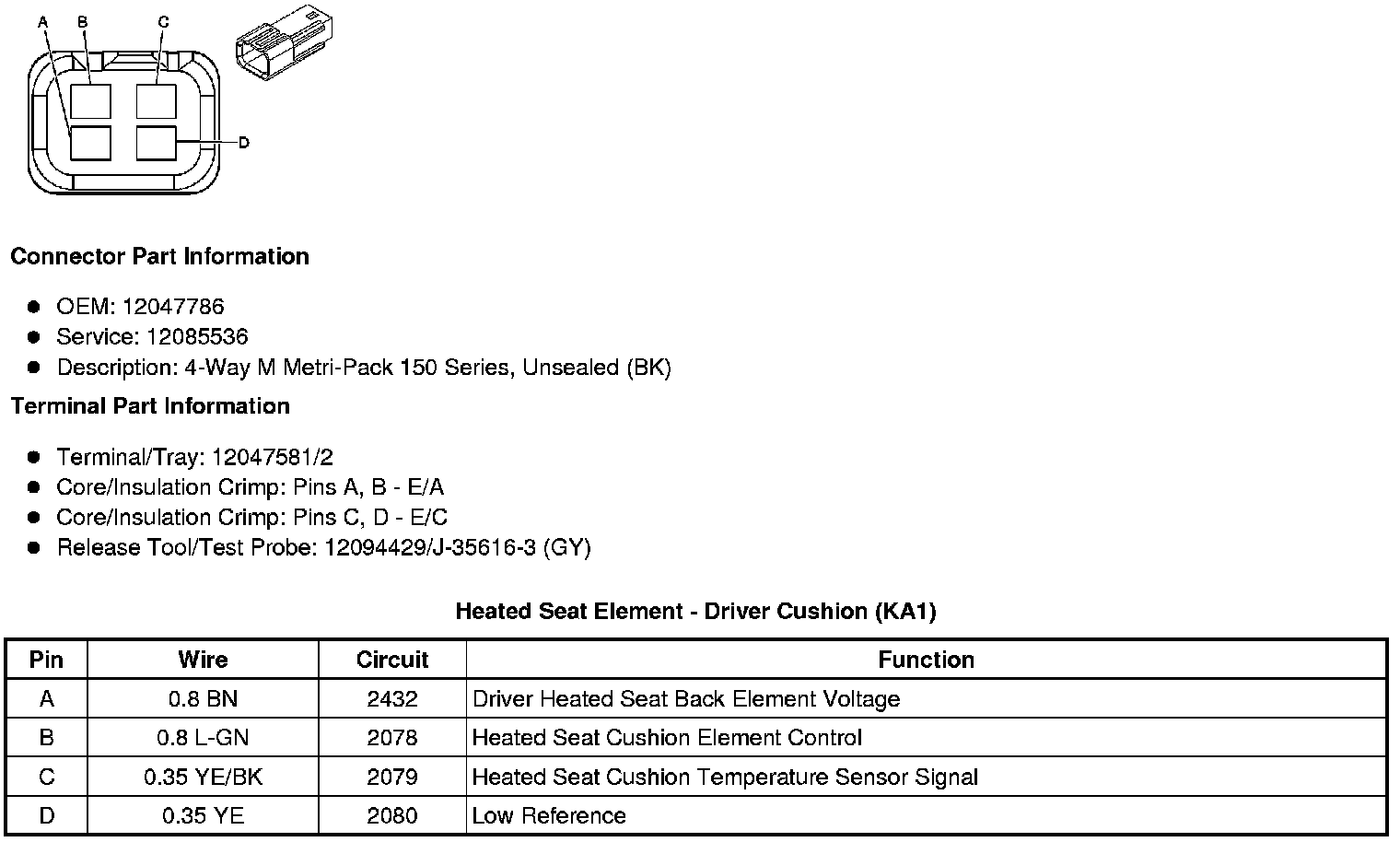

Heated Seat Element - Driver Cushion (KA1)

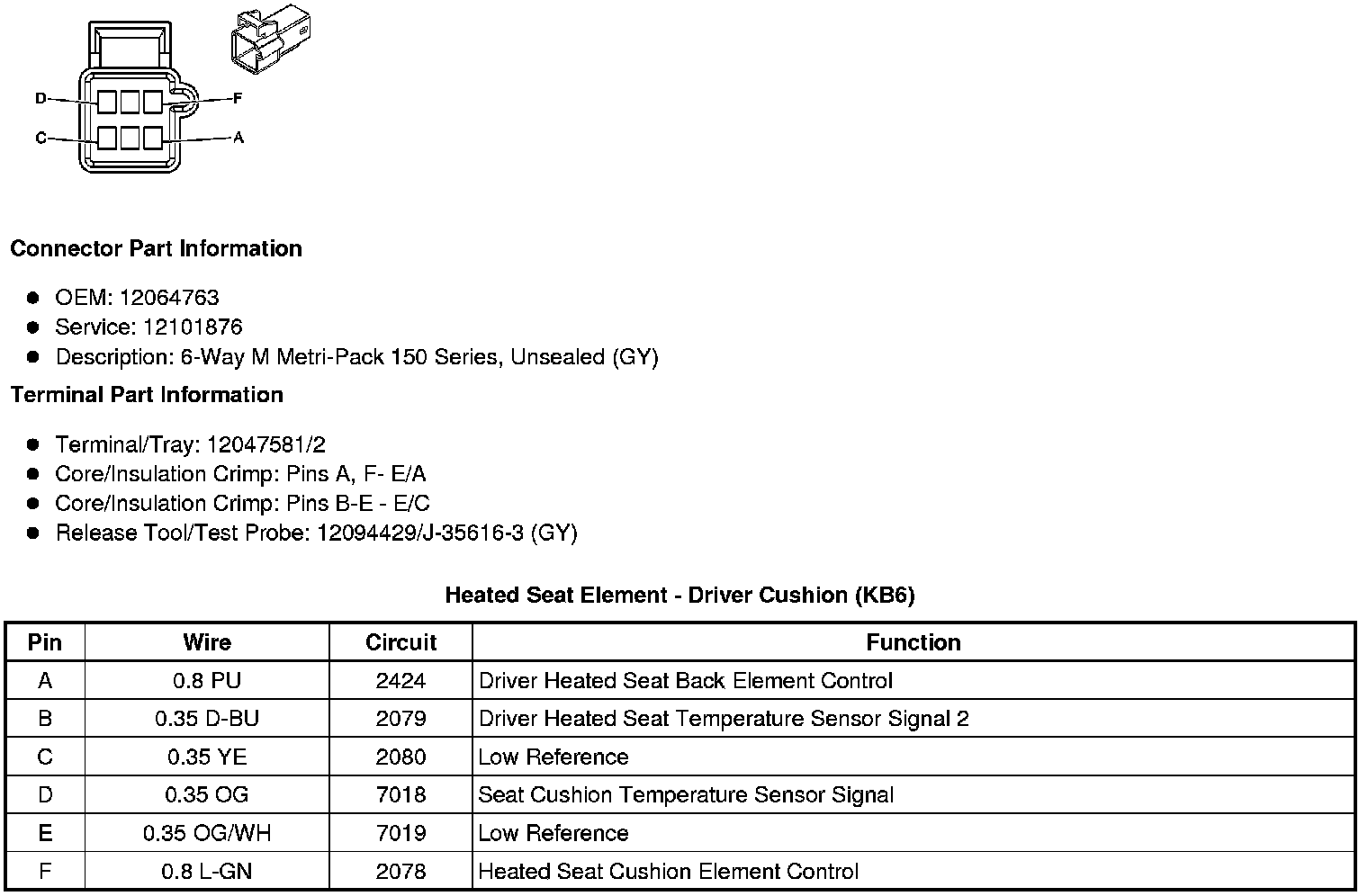

Heated Seat Element - Driver Cushion (KB6)

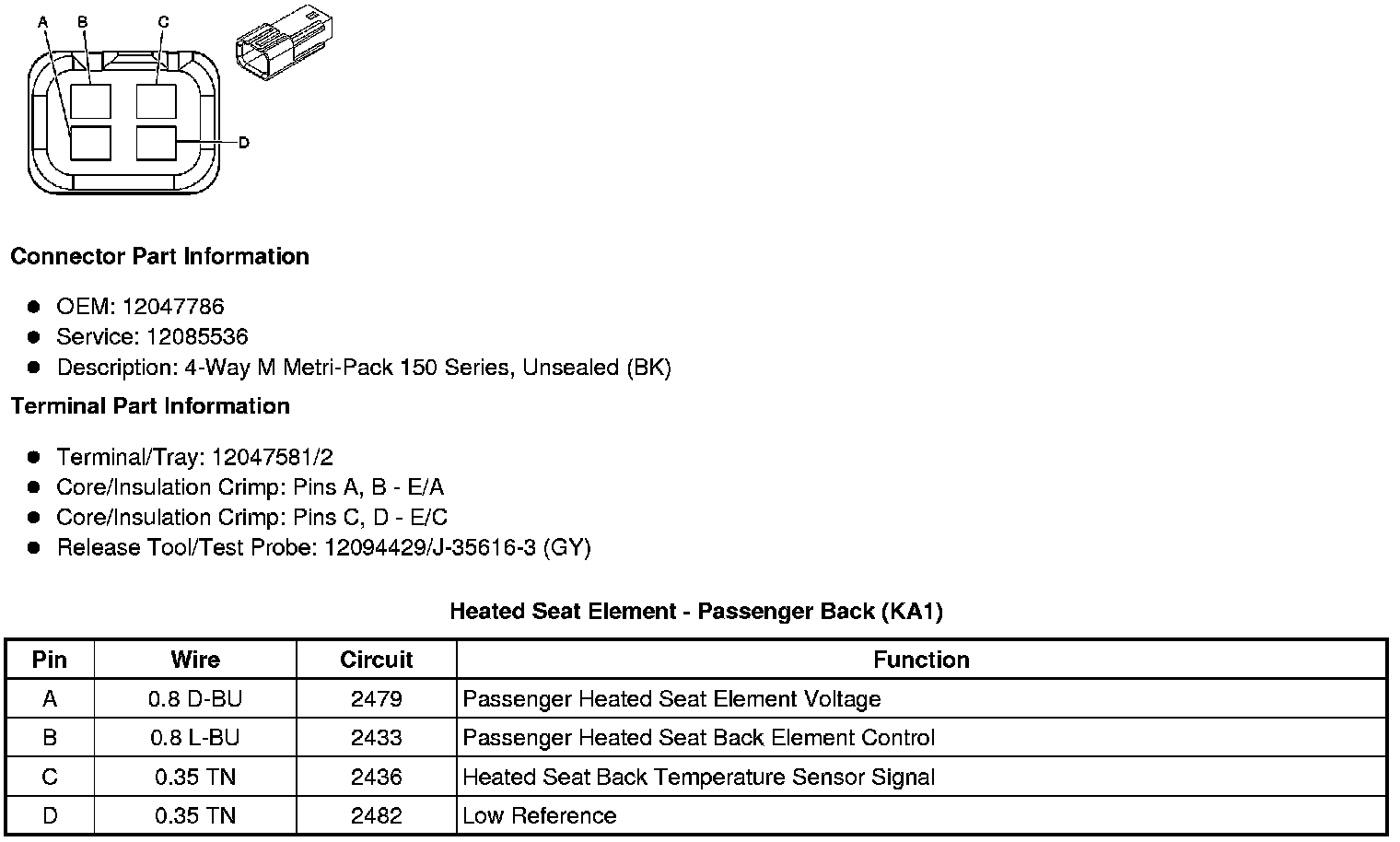

Heated Seat Element - Passenger Back (KA1)

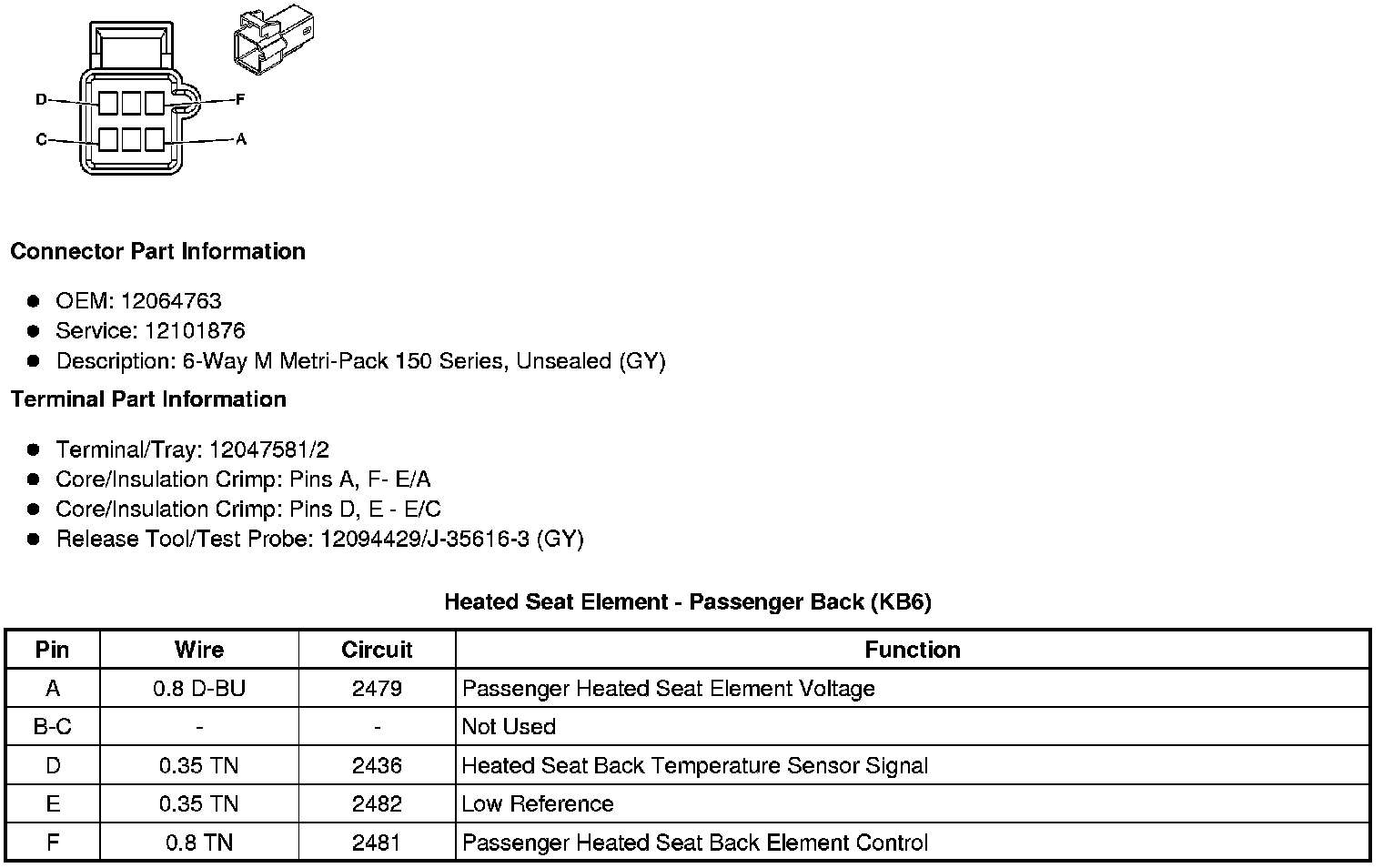

Heated Seat Element - Passenger Back (KB6)

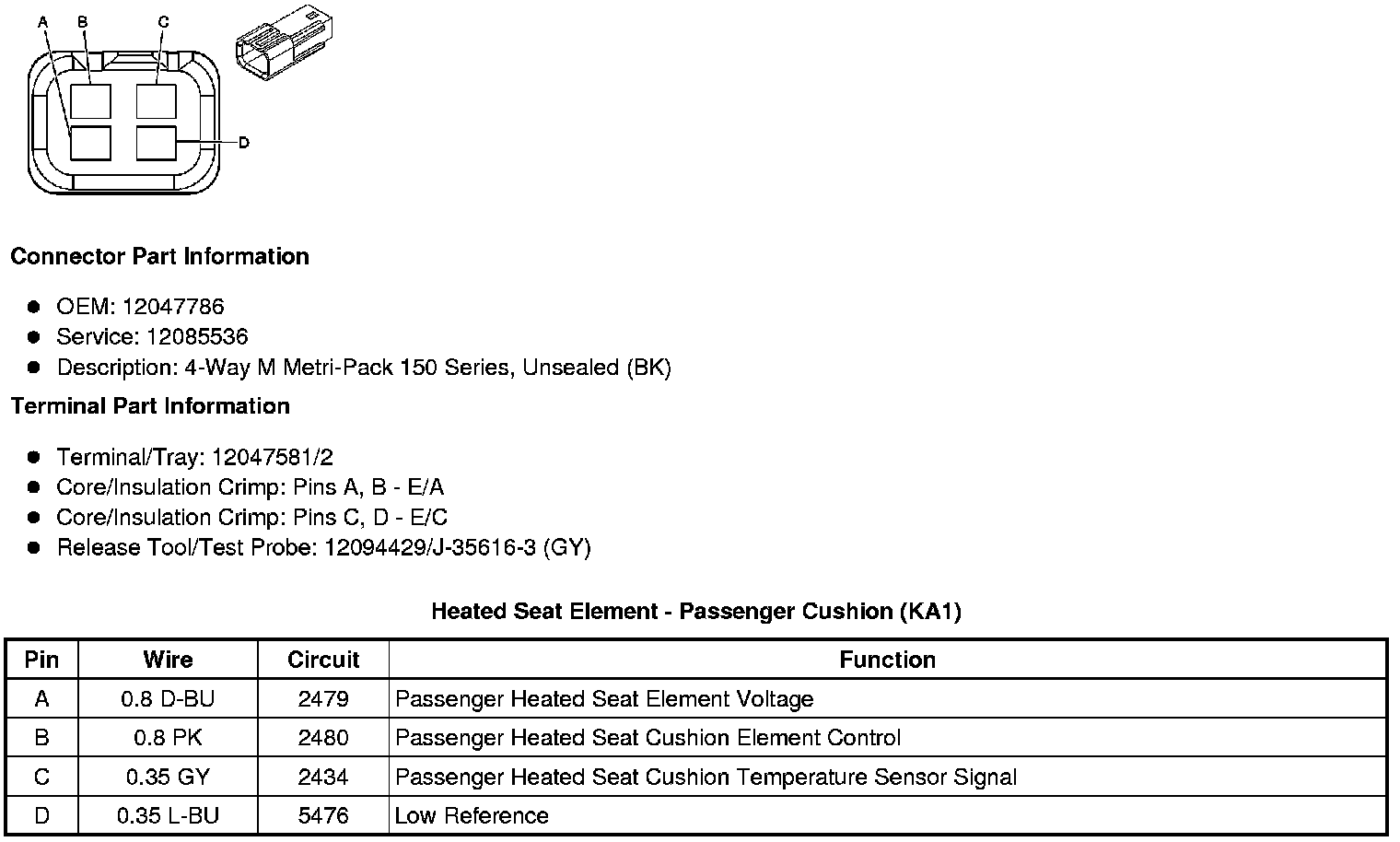

Heated Seat Element - Passenger Cushion (KA1)

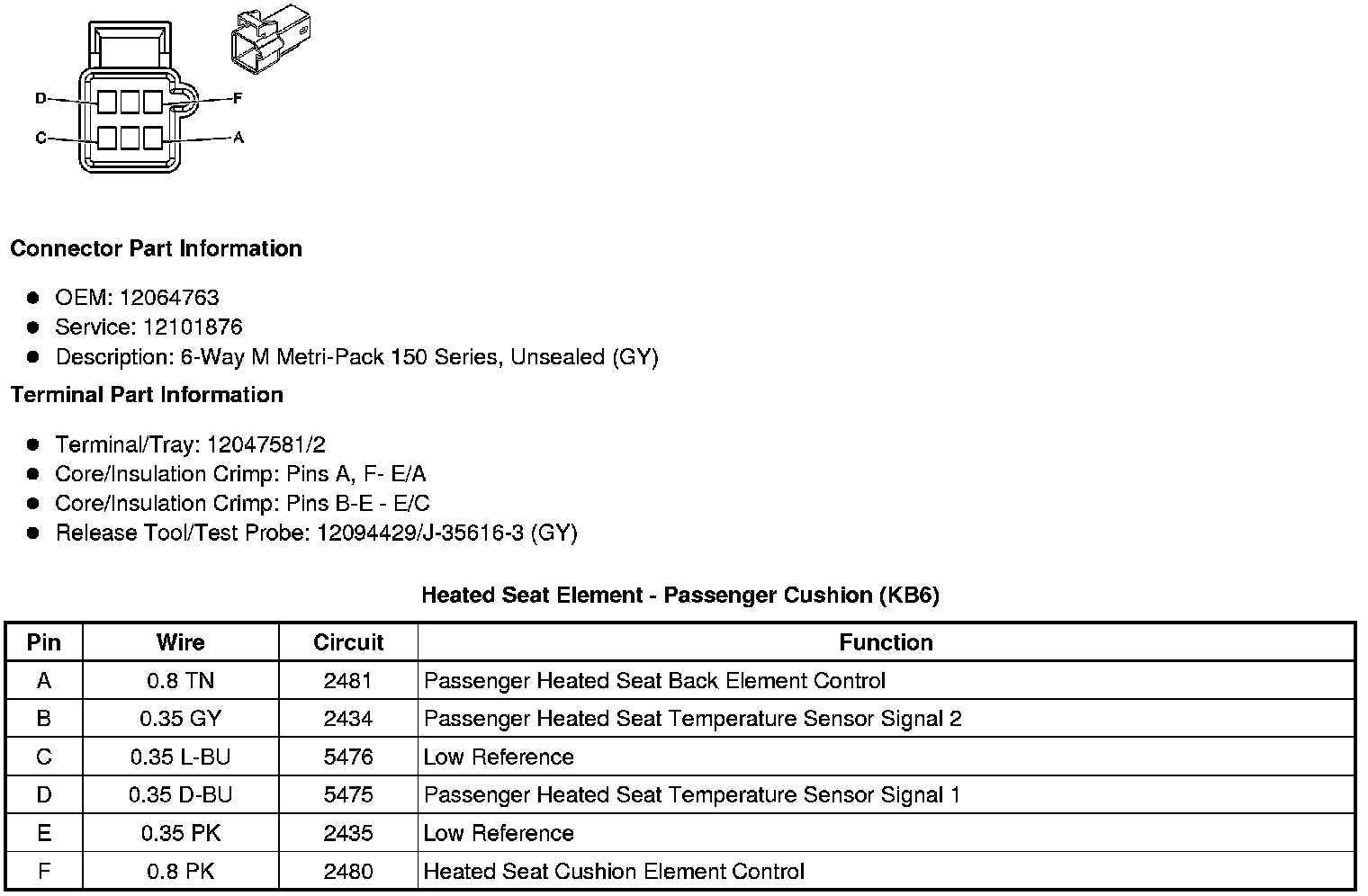

Heated Seat Element - Passenger Cushion (KB6)
