Door Lock/Indicator Schematics (Except AXC or AXE)

Door Lock/Indicator Schematics (Except AXC or AXE)

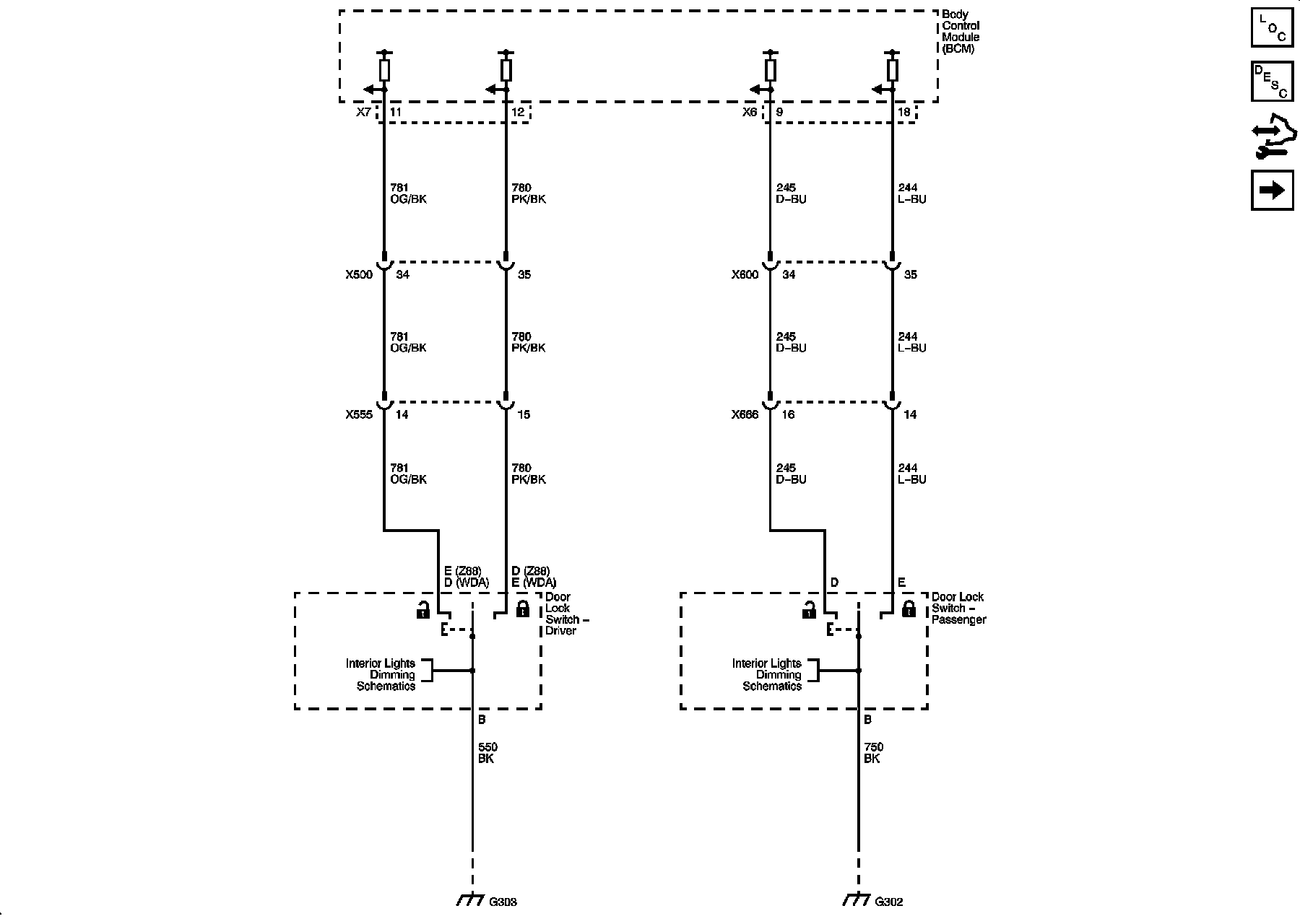

Switches

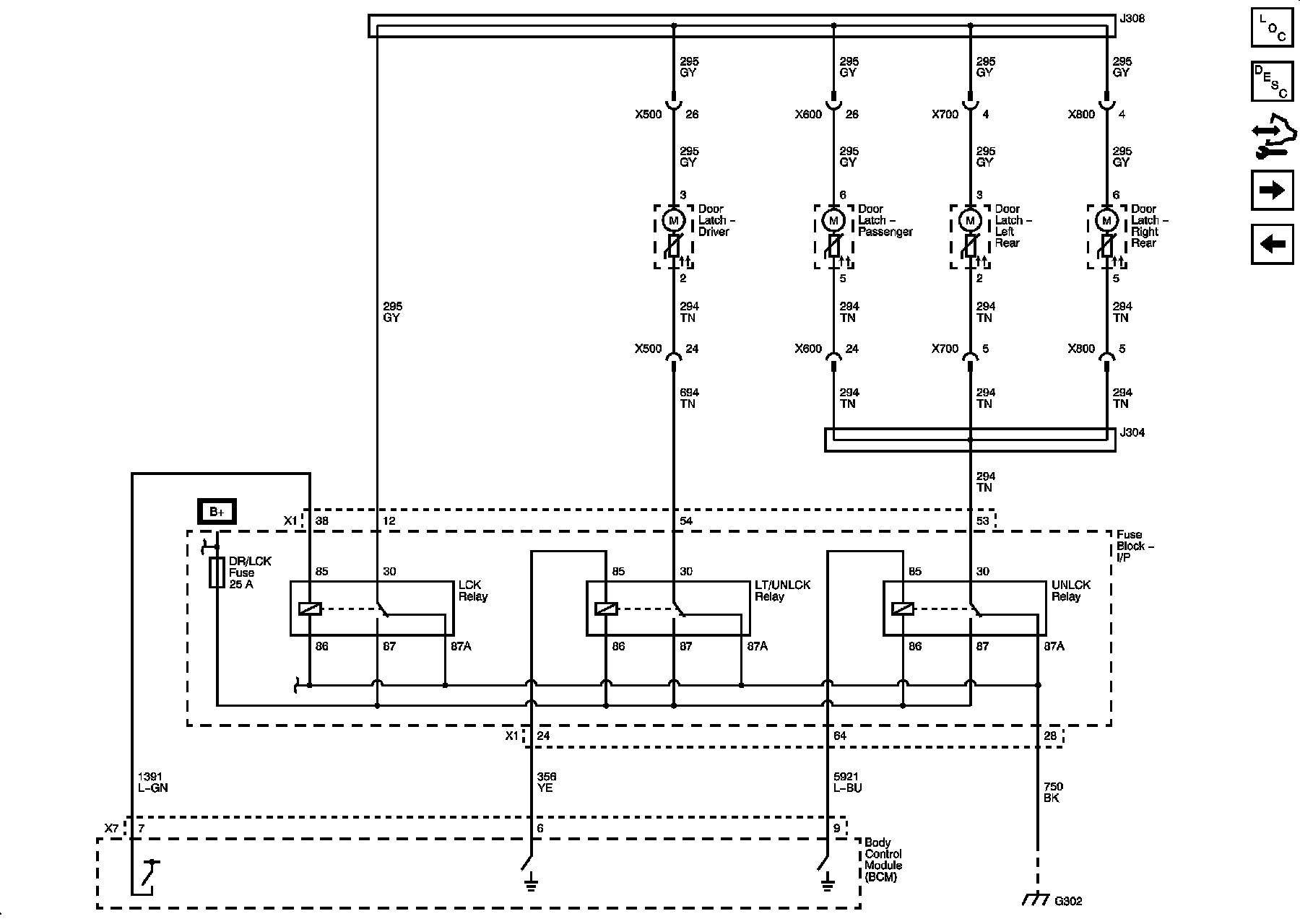

Actuators

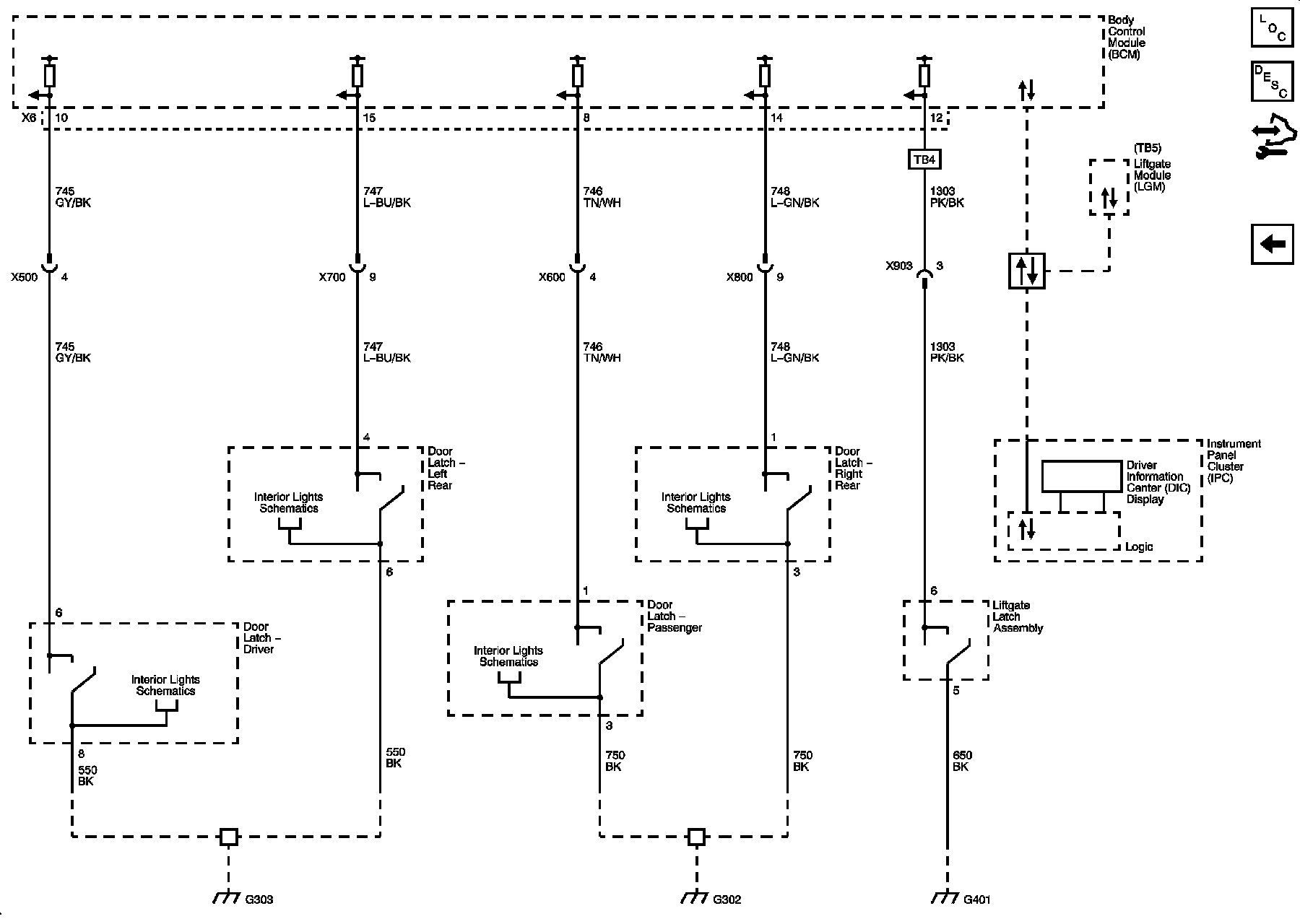

Indicators
