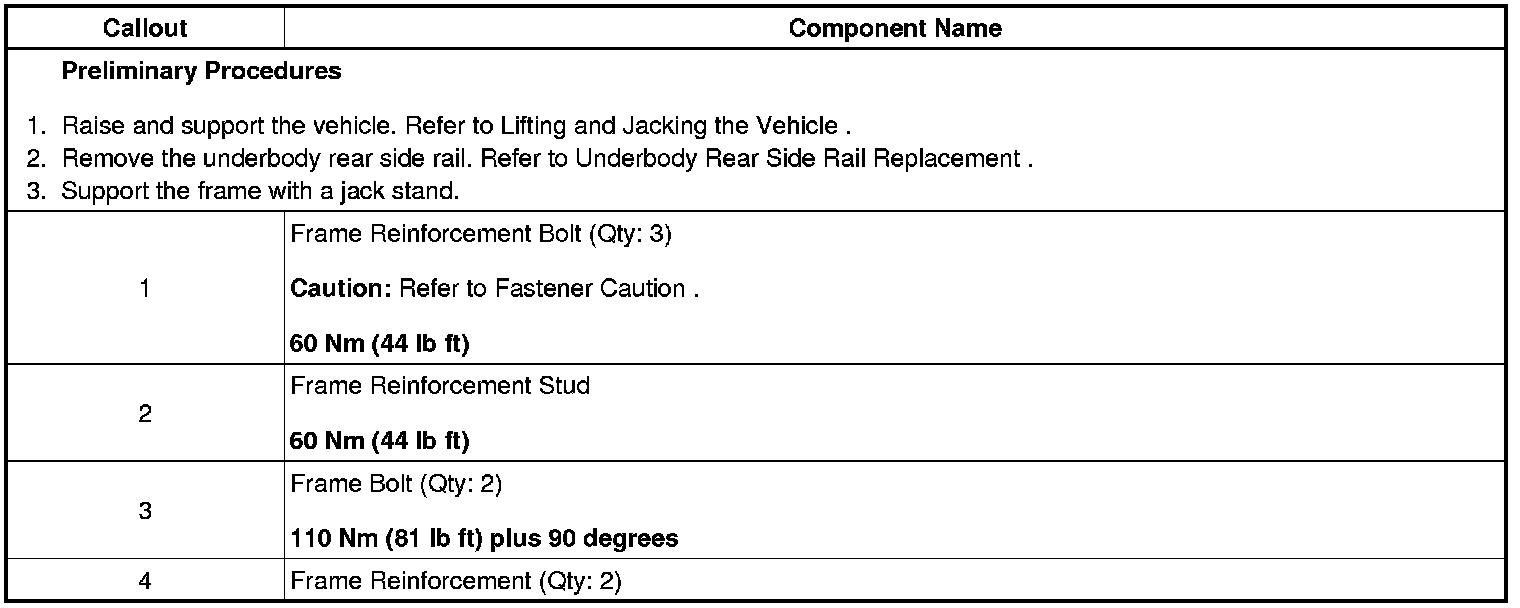

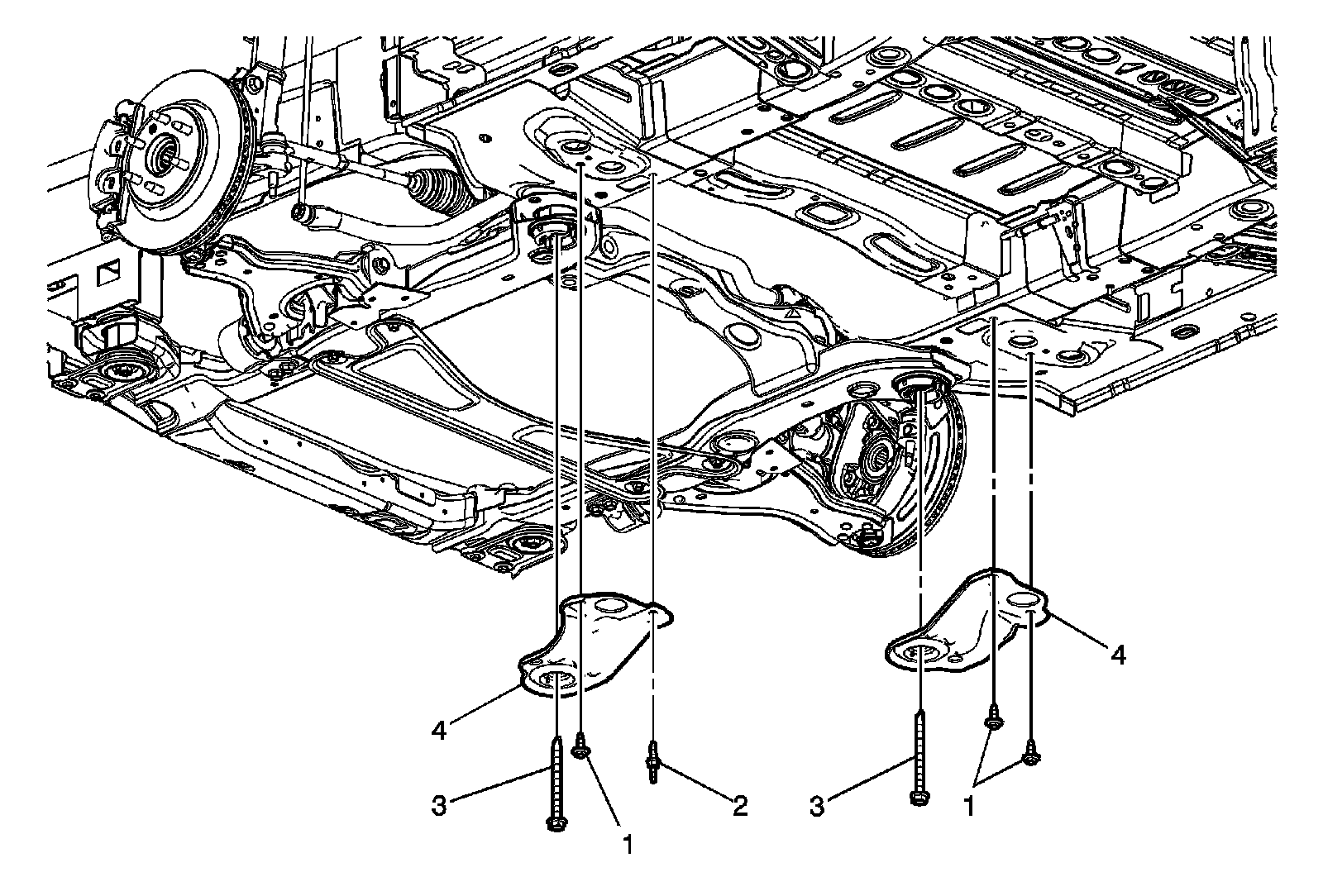

Drivetrain and Front Suspension Frame Reinforcement Replacement

Drivetrain and Front Suspension Frame Reinforcement Replacement
