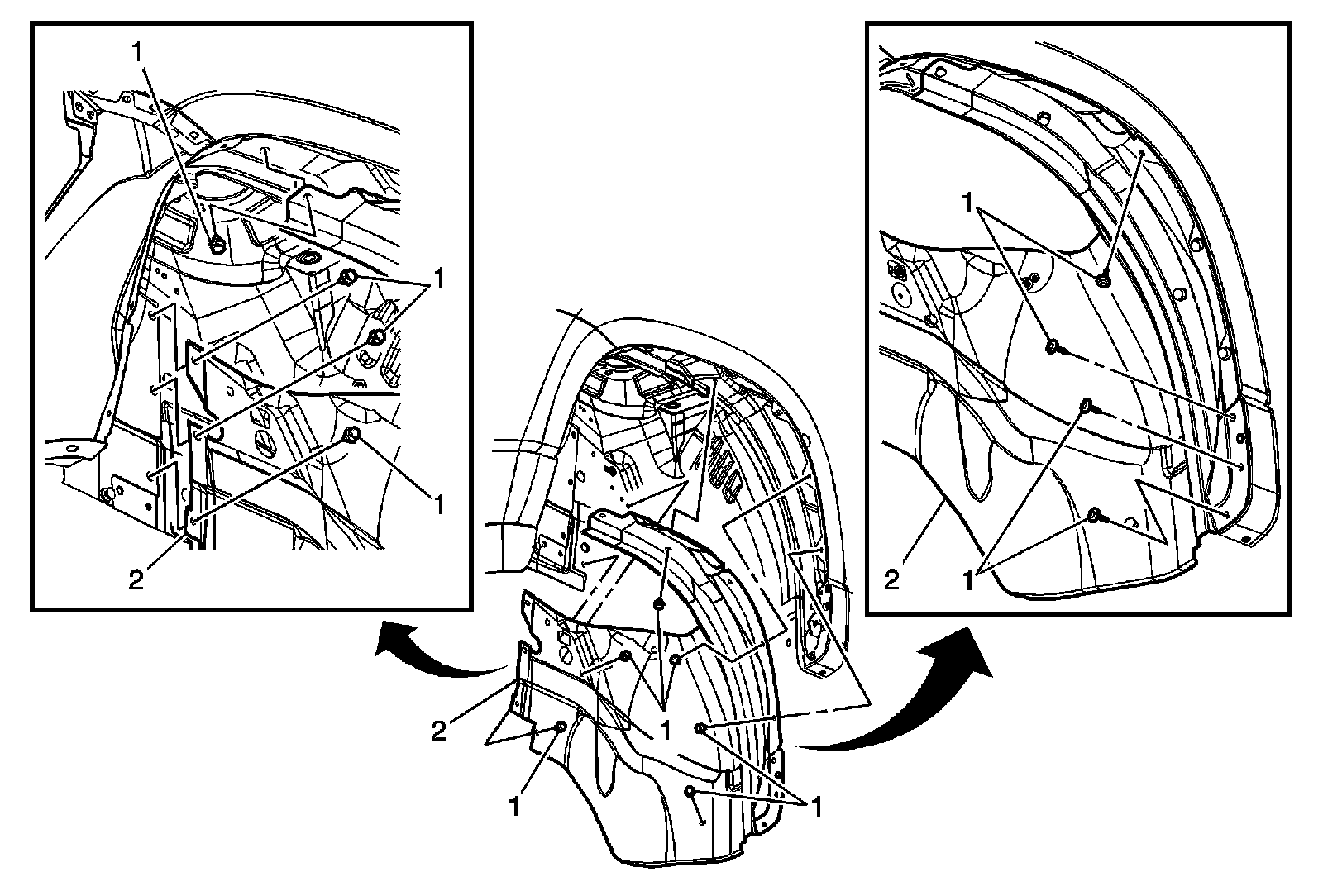

Front Wheelhouse Rear Liner Replacement (Outlook)


Front Wheelhouse Rear Liner Replacement (OUTLOOK)

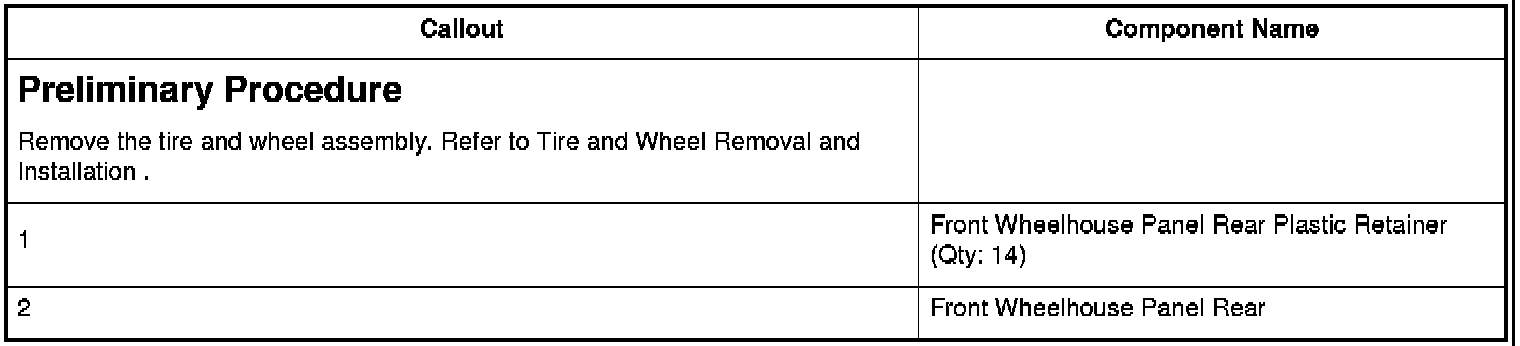

Preliminary Procedure
