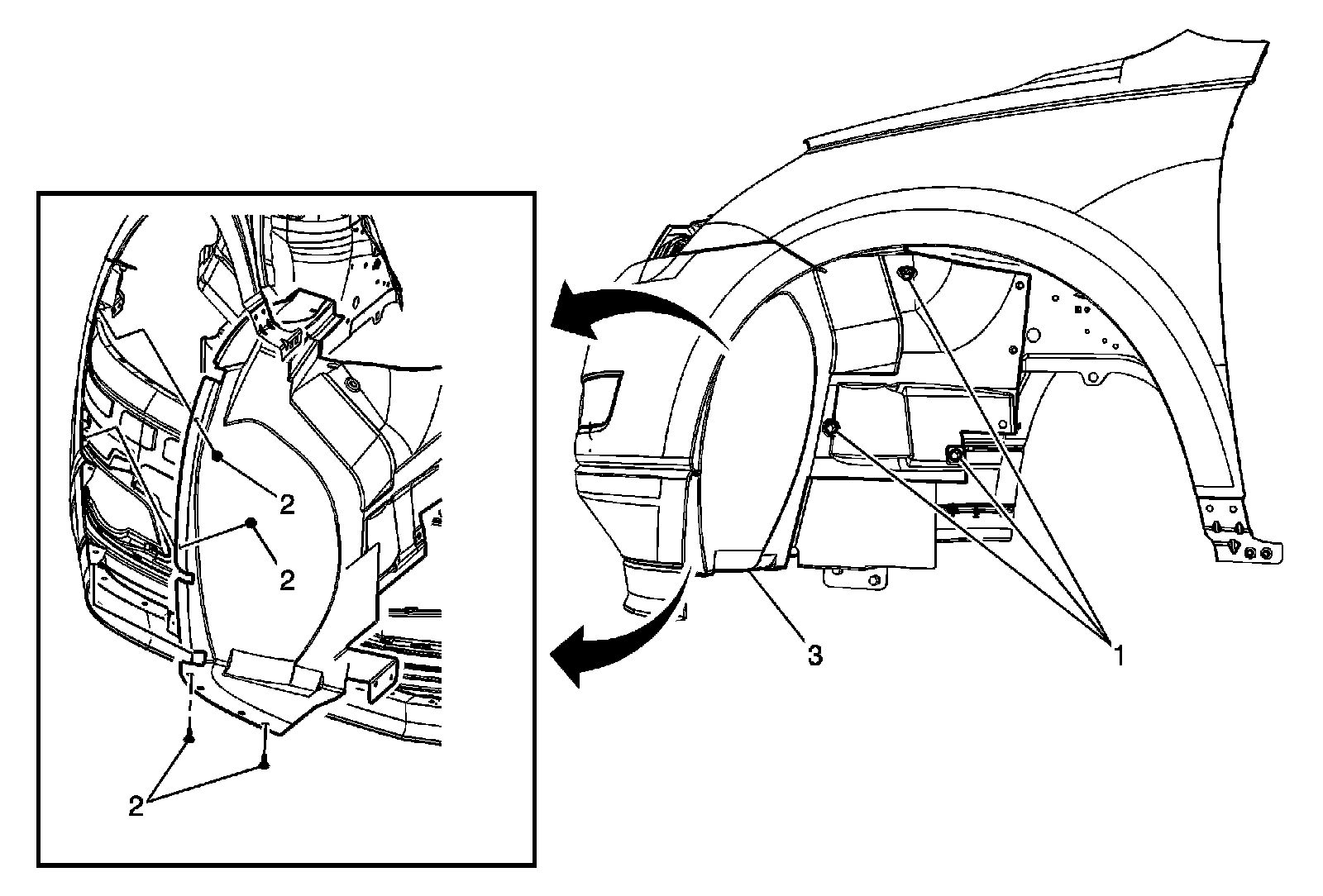

Front Wheelhouse Front Liner Replacement (Enclave - Acadia)


Front Wheelhouse Front Liner Replacement (Enclave - Acadia)

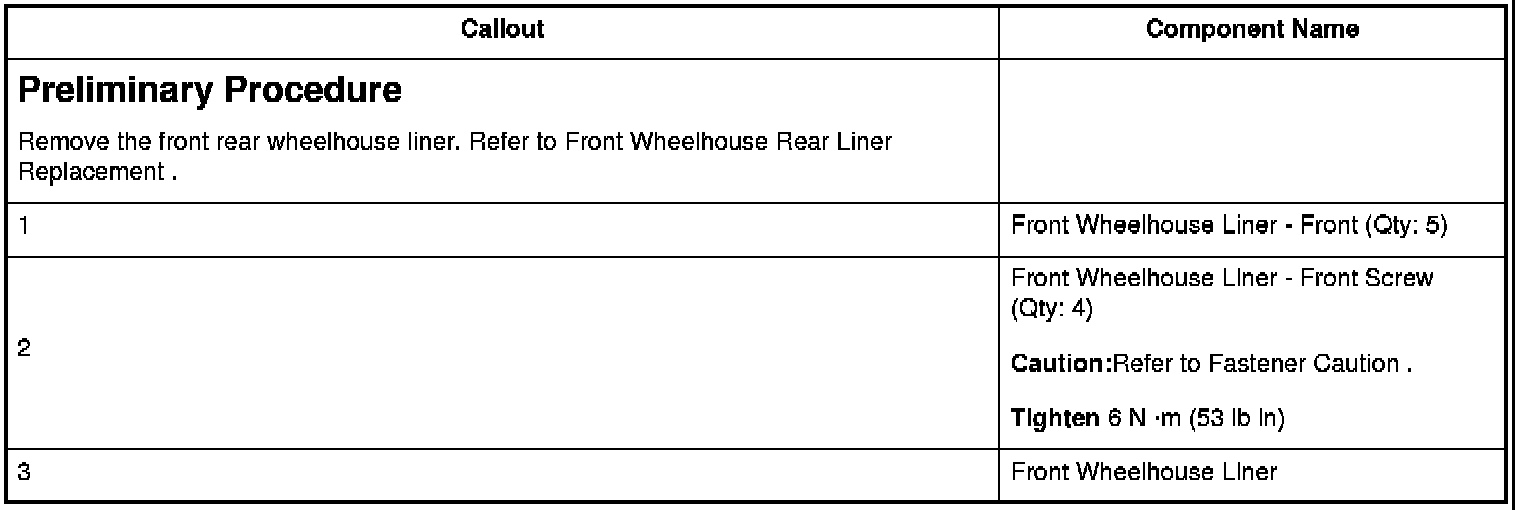

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
