Home >> Chevy Truck >> 2009 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Front Door Latch >> Diagrams

Front Door Latch: Diagrams




Component Connector End Views

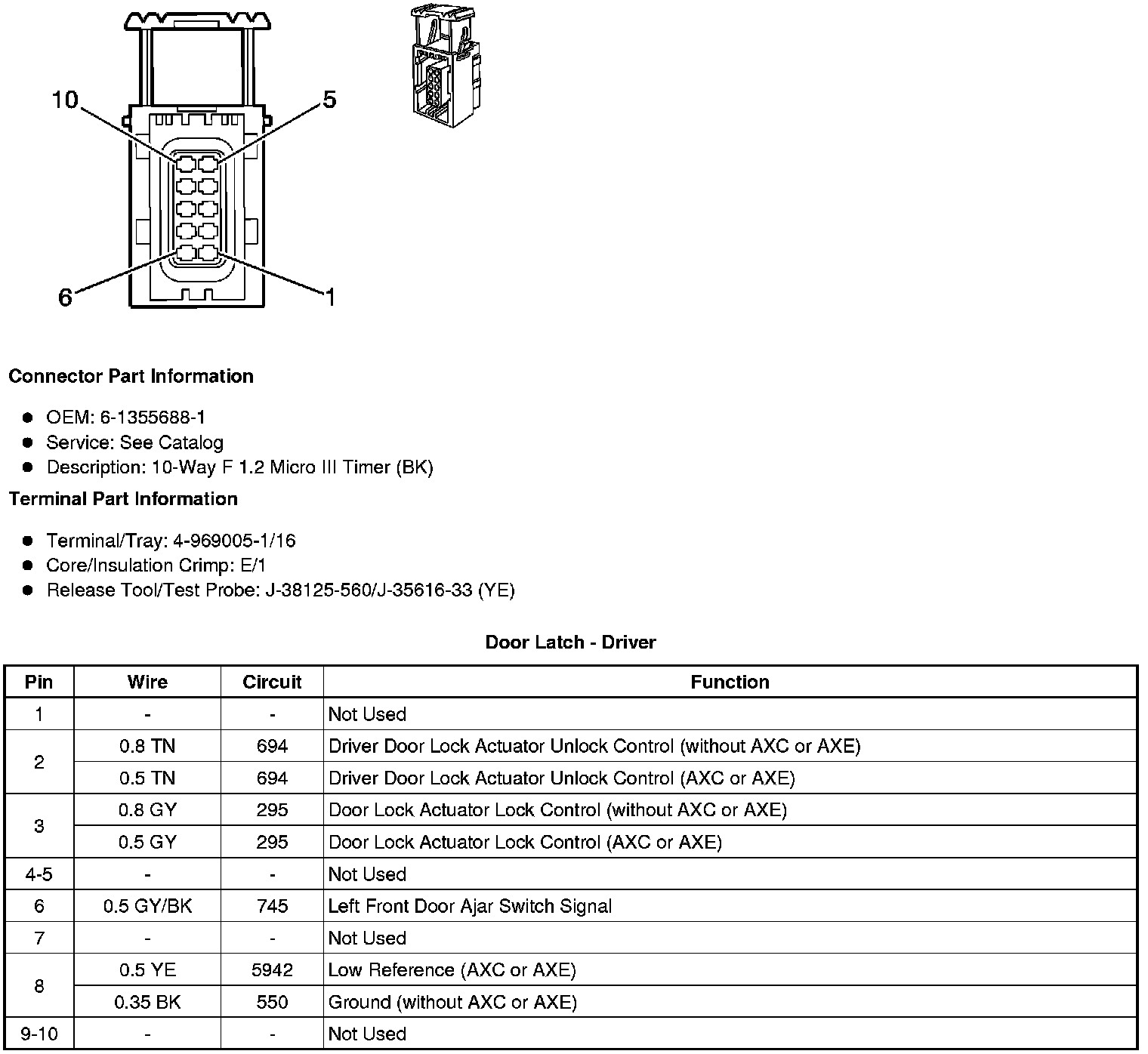

Door Latch - Driver

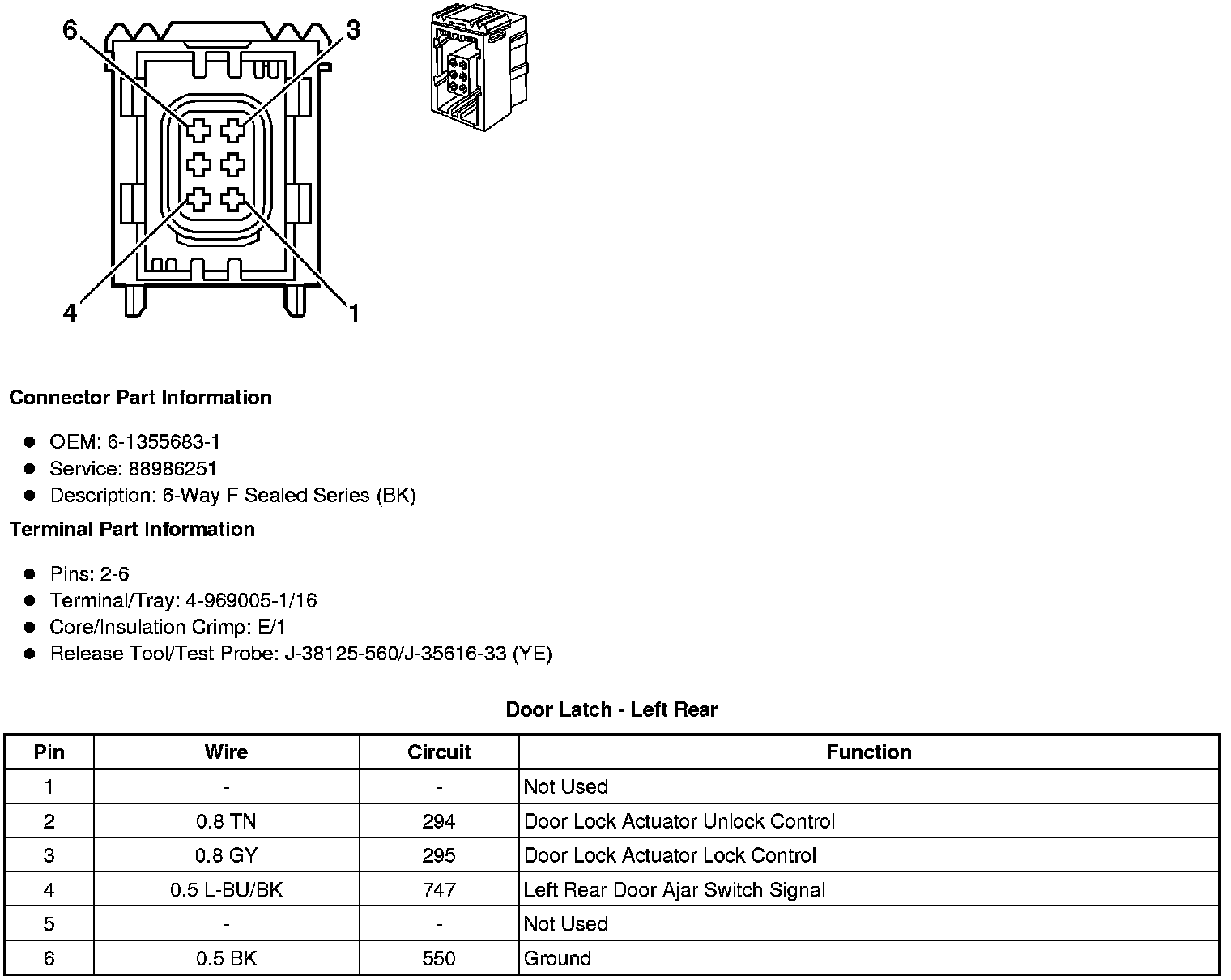

Door Latch - Left Rear

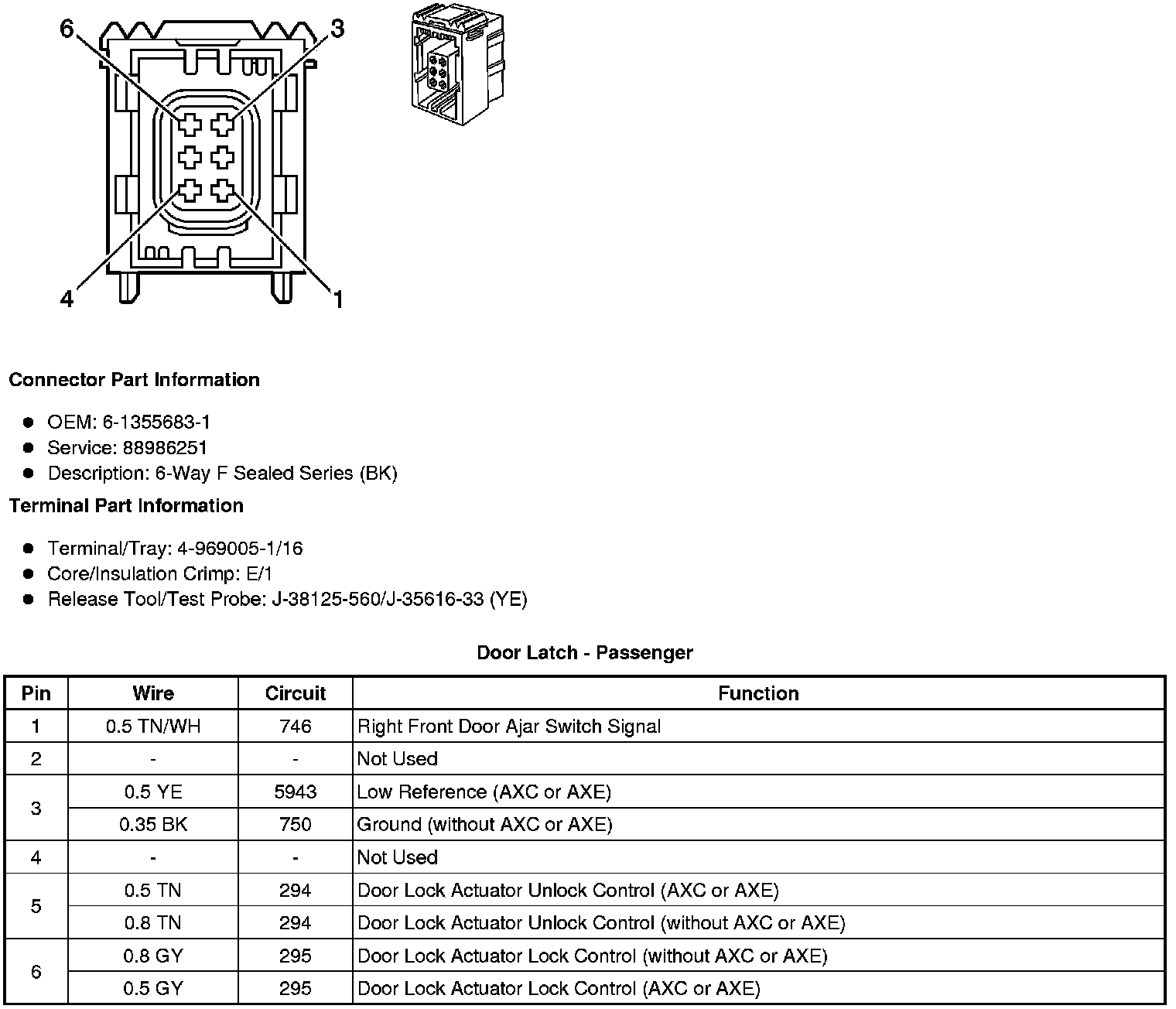

Door Latch - Passenger






Door Latch - Right Rear
