B2585




DTC B2585

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.

DTC Descriptor
DTC B2585 00
- Left Parklamp Control Circuit

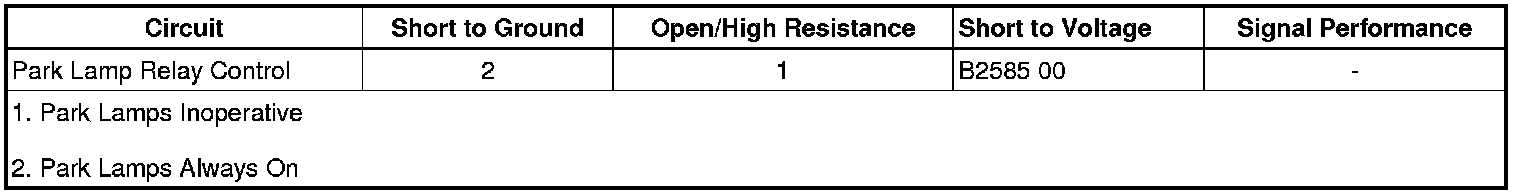

Diagnostic Fault Information





Circuit/System Description

Battery positive voltage is supplied to the PRK LAMP relay at all times. The body control module (BCM) grounds the park lamp relay control circuit in order to activate the relay. With the park lamp relay activated, voltage is supplied to the park lamp control circuit illuminating the park lamps, license lamps, and marker lamps.

Conditions for Running the DTC

* The ignition switch is in the RUN position.
* The ambient light sensor senses a dark condition, automatic lamp control (ALC) park lamps ON, or the headlamp switch is in the park or head ON position.

Conditions for Setting the DTC

The park lamp control circuit is shorted to voltage.

Action Taken When the DTC Sets

The park lamps are inoperative.

Conditions for Clearing the DTC

100 consecutive ignition cycles have been recorded without the DTC being detected.

Reference Information
Schematic Reference

Exterior Lights Schematics (Exterior Lights Schematics)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Exterior Lighting Systems Description and Operation (Exterior Lighting Systems Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information

Circuit/System Verification

Ignition ON, command the park lamps ON and OFF with a scan tool, observe the operation of park lamps. The park lamps should turn ON and OFF with each command.

Circuit/System Testing

1. Ignition OFF, disconnect the PRK LAMP relay.
2. Ignition ON, verify that a test lamp does not illuminate between the control circuit terminal 86 and ground.

If the test lamp illuminates, test the control circuit for a short to voltage.

3. If all circuits test normal, replace the BCM.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Relay Replacement (Attached to Wire Harness) (Relay Replacement (Attached to Wire Harness))Relay Replacement (Within an Electrical Center) (Relay Replacement (Within an Electrical Center))
* Control Module References (Programming and Relearning) for BCM replacement, setup, and programming
