B2580

DTC B2580

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.

DTC Descriptor
DTC B2580 00
- Headlamp High Beam Control Circuit

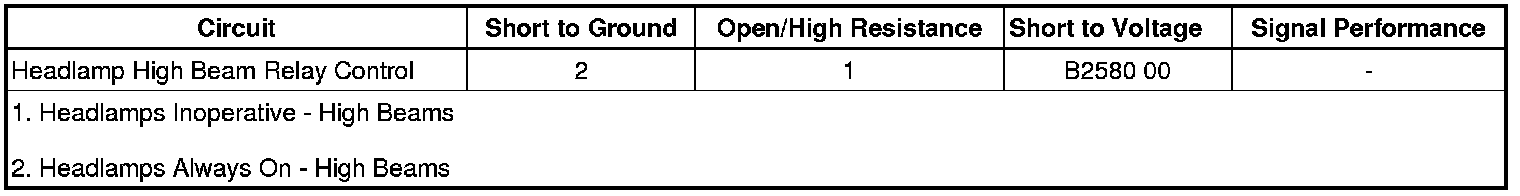

Diagnostic Fault Information





Circuit/System Description

When the body control module (BCM) receives a ground signal from the multifunction high beam or flash to pass (FTP) switch commanding to illuminate the high beam headlamps, the BCM will energize the high beam relay by grounding the high beam relay control circuit.

Conditions for Running the DTC

The battery voltage must be between 9-16 volts.

Conditions for Setting the DTC

The high beam headlamp relay control circuit is shorted to voltage.

Action Taken When the DTC Sets

The high beam headlamps will not operate or will remain always on.

Conditions for Clearing the DTC

* This DTC will clear on current status after the condition for setting the fault is corrected.
* A history DTC will clear after 100 consecutive ignition cycles without a fault present.

Reference Information
Schematic Reference

Headlights/Daytime Running Lights (DRL) Schematics (Headlights/Daytime Running Lights (DRL) Schematics)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Exterior Lighting Systems Description and Operation (Exterior Lighting Systems Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information

Circuit/System Verification

Ignition ON, command the High Beam ON with a scan tool. The High Beam Relay Command parameter should display On and the high beam headlamps should illuminate.

Circuit/System Testing

1. Ignition OFF, disconnect the HI BEAM relay.
2. Ignition ON, verify that a test lamp does not illuminate between the control circuit terminal 86 and ground.

• If the test lamp illuminates, test the control circuit for a short to voltage.

3. If all circuits test normal, replace the BCM.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Relay Replacement (Attached to Wire Harness) (Relay Replacement (Attached to Wire Harness))Relay Replacement (Within an Electrical Center) (Relay Replacement (Within an Electrical Center))
* Control Module References (Programming and Relearning) for BCM replacement, setup, and programming
