B0073
DTC B0073
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.
DTC Descriptors
DTC B0073 01
- Passenger Seat Belt Sensor Circuit Short to Battery
DTC B0073 02
- Passenger Seat Belt Sensor Circuit Short to Ground
DTC B0073 04
- Passenger Seat Belt Sensor Circuit Open Circuit
DTC B0073 06
- Passenger Seat Belt Sensor Circuit Short To Ground or Open Circuit
DTC B0073 08
- Passenger Seat Belt Sensor Circuit Signal Invalid

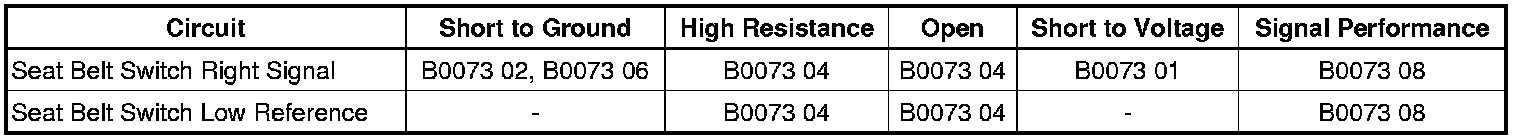

Diagnostic Fault Information
Circuit/System Description
The inflatable restraint seat belt buckle switch is within the seat belt buckle and provides an input to the inflatable restraint sensing and diagnostic module (SDM). The SDM supplies a low reference circuit and a seat belt switch signal circuit to determine a buckled or unbuckled condition. The SDM monitors the seat belt switch circuits, and if a fault is detected a DTC will be set.
Conditions for Running the DTC
Ignition voltage is between 9-16 volts.
Conditions for Setting the DTC
B0073 01
The SDM detects the seat switch signal circuit or low reference circuit is shorted to voltage for 500 milliseconds.
B0073 02
The SDM detects the seat switch signal circuit or low reference circuit is shorted to ground for 500 milliseconds.
B0073 04
The SDM detects the seat switch signal circuit or low reference circuit is open for 500 milliseconds.
B0073 06
The SDM detects the seat switch signal circuit or low reference circuit is shorted to ground or an open for 500 milliseconds.
B0073 08
The SDM detects an invalid signal in the seat switch signal circuit.
Action Taken When the DTC Sets
The SDM commands the AIR BAG indicator ON.
Conditions for Clearing the DTC
* The condition for setting the DTC no longer exists.
* A history DTC will clear once 100 malfunction-free ignition cycles have occurred.
Reference Information
Schematic Reference
* Seat Belt Schematics (Electrical Diagrams)
* SIR Schematics (Electrical Diagrams)
Connector End View Reference
Component Connector End Views (Connector Views)
Description and Operation
SIR System Description and Operation (Description and Operation)
Electrical Information Reference
* Circuit Testing (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information.
Circuit/System Verification
1. Ignition ON, with a scan tool perform the instrument panel cluster (IPC) Display Test and verify the passenger seat belt indicator is illuminated for 5 seconds.
• If the indicator does not illuminate, replace the IPC.
2. Monitor the SDM Passenger Seat Belt Switch parameter while connecting and disconnecting the seat belt. The parameter should display Buckled and Unbuckled when changing seat belt states.
Circuit/System Testing
Important:
* Refer to SIR Service Precautions (Technician Safety Information)
* The seat belt buckle switch is not serviced separately. The seat belt buckle with the seat belt buckle switch must be serviced as a complete unit.
* When removing connectors, inspect for damage or corrosion. Damage or corrosion in the following requires repair or replacement of the affected component/connector:
- The SDM
- The seat belt buckle switch wiring harness connector
- The seat belt buckle switch
- The SDM wiring harness connector
1. Ignition OFF, disconnect the harness connector of the seat belt switch.
2. Test for less than 1.0 ohm between low reference terminal 2 and ground.
• If greater than specified range, test the low reference circuit for open/high resistance. If the circuit tests normal, replace the SDM.
3. Ignition ON, with the passenger seat belt unbuckled, verify the scan tool Passenger Seat Belt Switch parameter is Unbuckled.
• If not the specified value, test the signal circuit terminal 1 for short to ground. If the circuit tests normal, replace the SDM.
4. Connect a 3A fused jumper wire between the signal circuit terminal 1 and the low reference circuit terminal 2. Verify the scan tool Passenger Seat Belt Switch parameter is Buckled.
• If not the specified value, test the signal circuit for short to voltage or an open/high resistance. If the circuit tests normal, replace the SDM.
5. If the circuits test normal, replace the seat belt buckle.
Component Testing
1. Ignition OFF, disconnect the harness connector at the seat belt switch.
2. With the seat belt buckled, test for infinite resistance between the signal circuit terminal 1 and the low reference terminal 2.
• If not the specified range, replace the seat belt switch.
3. With the seat belt unbuckled, test for less than 2 ohms between the signal circuit terminal 1 and the low reference terminal 2.
• If greater than the specified range, replace the seat belt switch.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
* Driver or Passenger Seat Belt Buckle Replacement (Driver or Passenger Seat Belt Buckle Replacement)
* SIR/SRS Wiring Repairs (Component Tests and General Diagnostics)
* Control Module References (Programming and Relearning) for SDM replacement, setup, and programming
