B0005

DTC B0005

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.

DTC Descriptors
DTC B0005 00
- In Park Signal Circuit

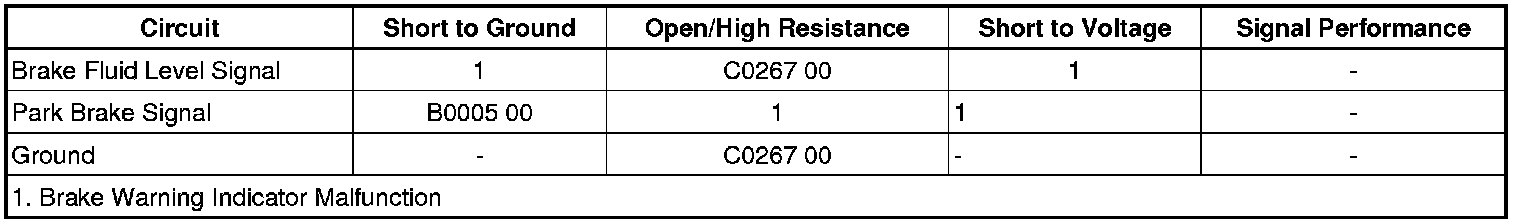

Diagnostic Fault Information





Circuit/System Description

The body control module (BCM) monitors the status of the park brake. When the BCM receives a ground input from the park brake switch, a serial data message is sent to the instrument panel cluster (IPC) requesting illumination of the red brake warning indicator.

Conditions for Running the DTC

The ignition is ON.

Conditions for Setting the DTC

The vehicle speed is greater than 8 km/h (5 mph) and the BCM receives a ground from the park brake switch.

Action Taken When the DTC Sets

The Red Brake Warning indicator illuminates.

Conditions for Clearing the DTC

* The condition for the DTC is no longer present.
* The electronic brake control module (EBCM) clears the history DTC when a current DTC is not detected in 100 consecutive drive cycles.

Diagnostic Aids

This DTC may indicate that the vehicle has been driven with the park brake engaged.

Reference Information
Schematic Reference

Hydraulic Brake Schematics (Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Connector Views)
Description and Operation

Brake Warning System Description and Operation (Brake Warning System Description and Operation)
Electrical Information Reference

* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)

Scan Tool Reference

Control Module References (Programming and Relearning) for scan tool information

Circuit/System Verification

Ignition ON, observe the scan tool BCM Park Brake Switch parameter. The reading should be Released and change between Applied and Released when pressing and depressing the park brake.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the park brake switch.
2. Ignition ON, verify the scan tool BCM Park Brake Switch parameter is Released.

• If not the specified value, test the signal circuit terminal A for a short to ground. If the circuit tests normal, replace the BCM.

3. Install a 3A fused jumper wire between the signal circuit terminal A and ground. Verify the scan tool BCM Park Brake Switch parameter is Applied.

• If not the specified value, test the signal circuit for a short to voltage or an open/high resistance.

4. If all circuits test normal, test or replace the park brake switch.

Component Testing

1. Ignition OFF, disconnect the harness connector at the park brake switch.
2. Test for infinite resistance between the park brake switch terminal A and ground, with the park brake released.

• If less than specified range, replace the park brake switch.

3. Test for less than 1 ohm between the park brake switch terminal A and ground with the park brake applied.

• If greater than specified range, replace the park brake switch.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Parking Brake Indicator Switch Replacement (Service and Repair)
* Control Module References (Programming and Relearning) for BCM and replacement, setup, and programming
