Starter Motor: Diagrams




Component Connector End Views

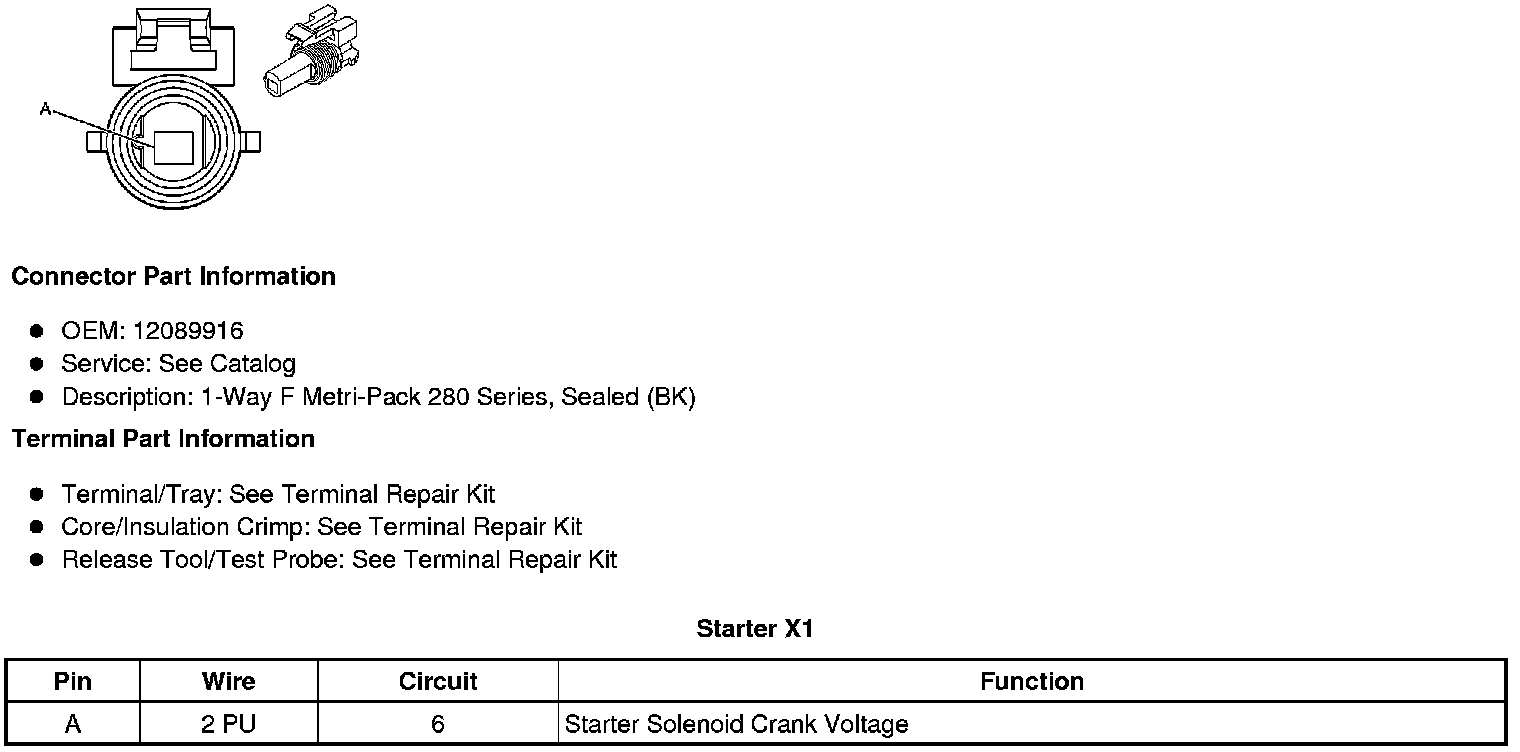

Starter X1

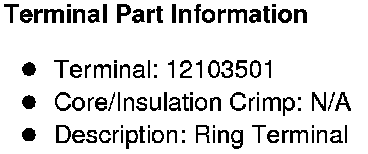

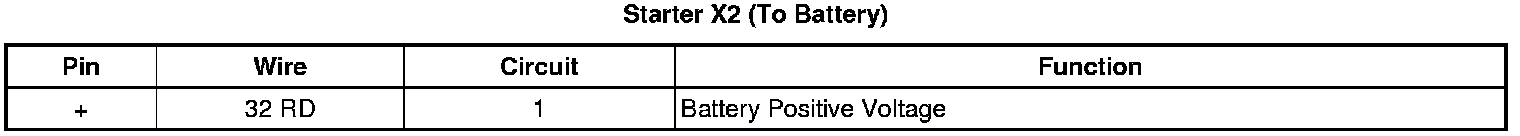

Starter X2 (To Battery)










Starter X2 (To Generator)
