X900 - X999

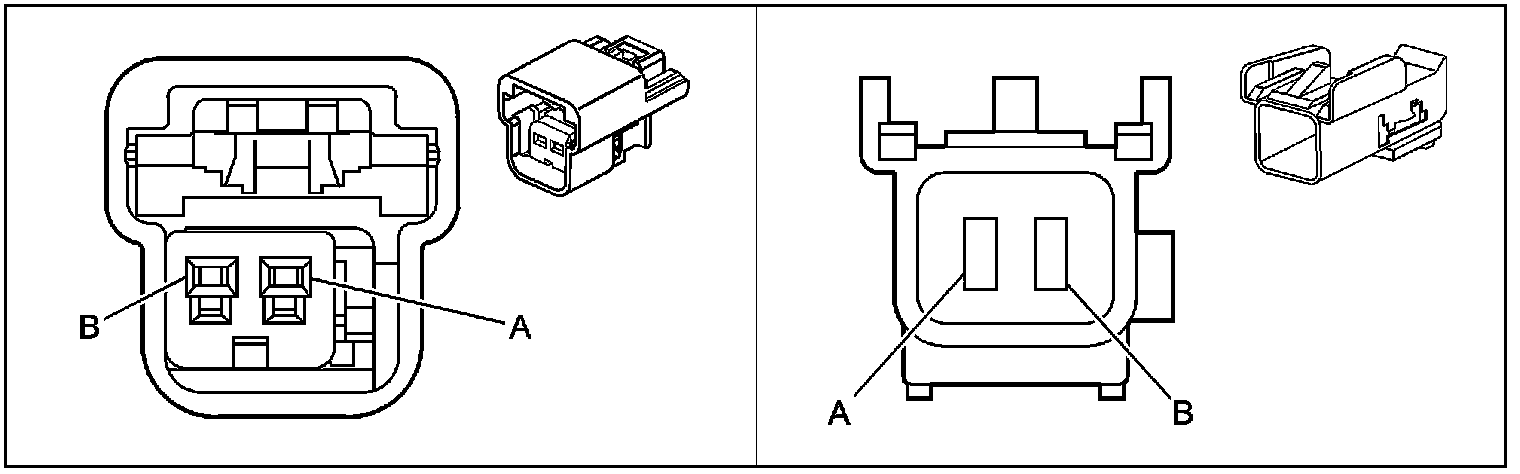

Inline Harness Connector End Views

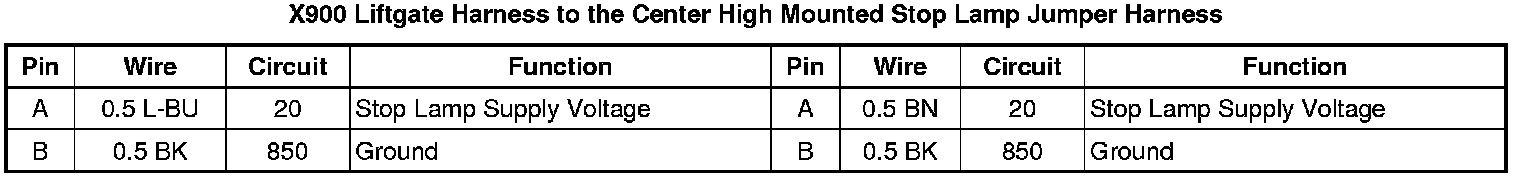

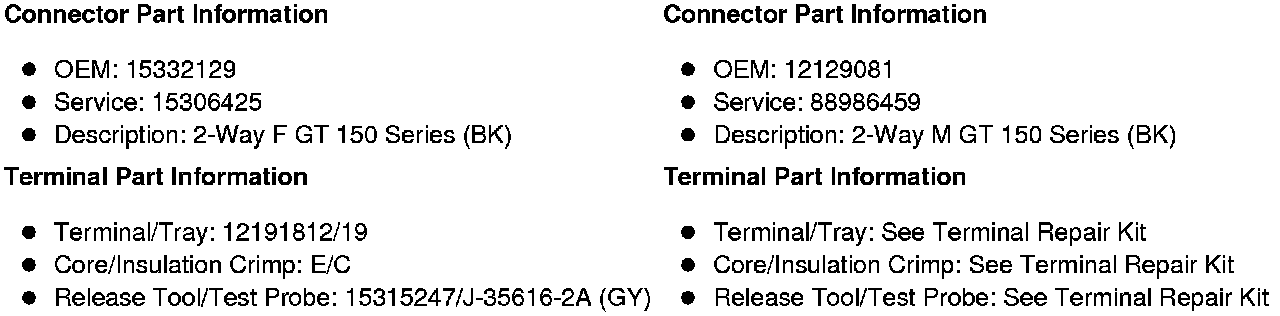

X900 Liftgate Harness to the Center High Mounted Stop Lamp Jumper Harness
