Home >> Chevy Truck >> 2009 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> X100 - X199 >> X113

X113

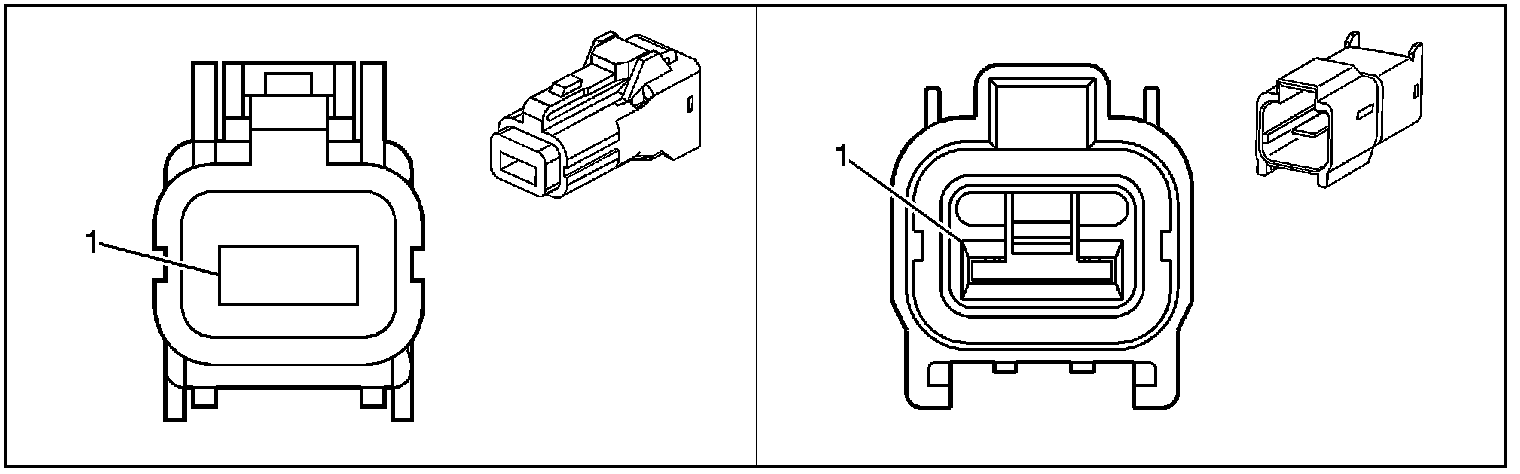

Inline Harness Connector End Views

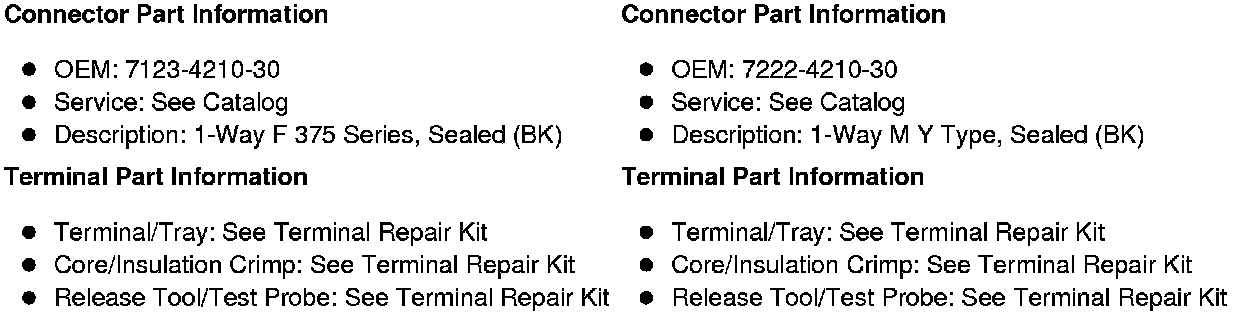

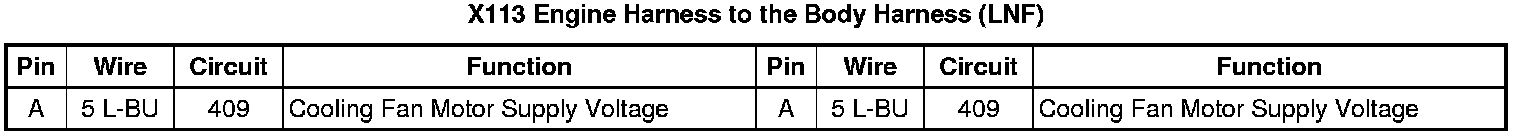

X113 Engine Harness to the Body Harness (LNF) (2.0L)
