Home >> Chevy Truck >> 2009 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Steering >> Steering Control Module >> Diagrams

Steering Control Module: Diagrams




Component Connector End Views

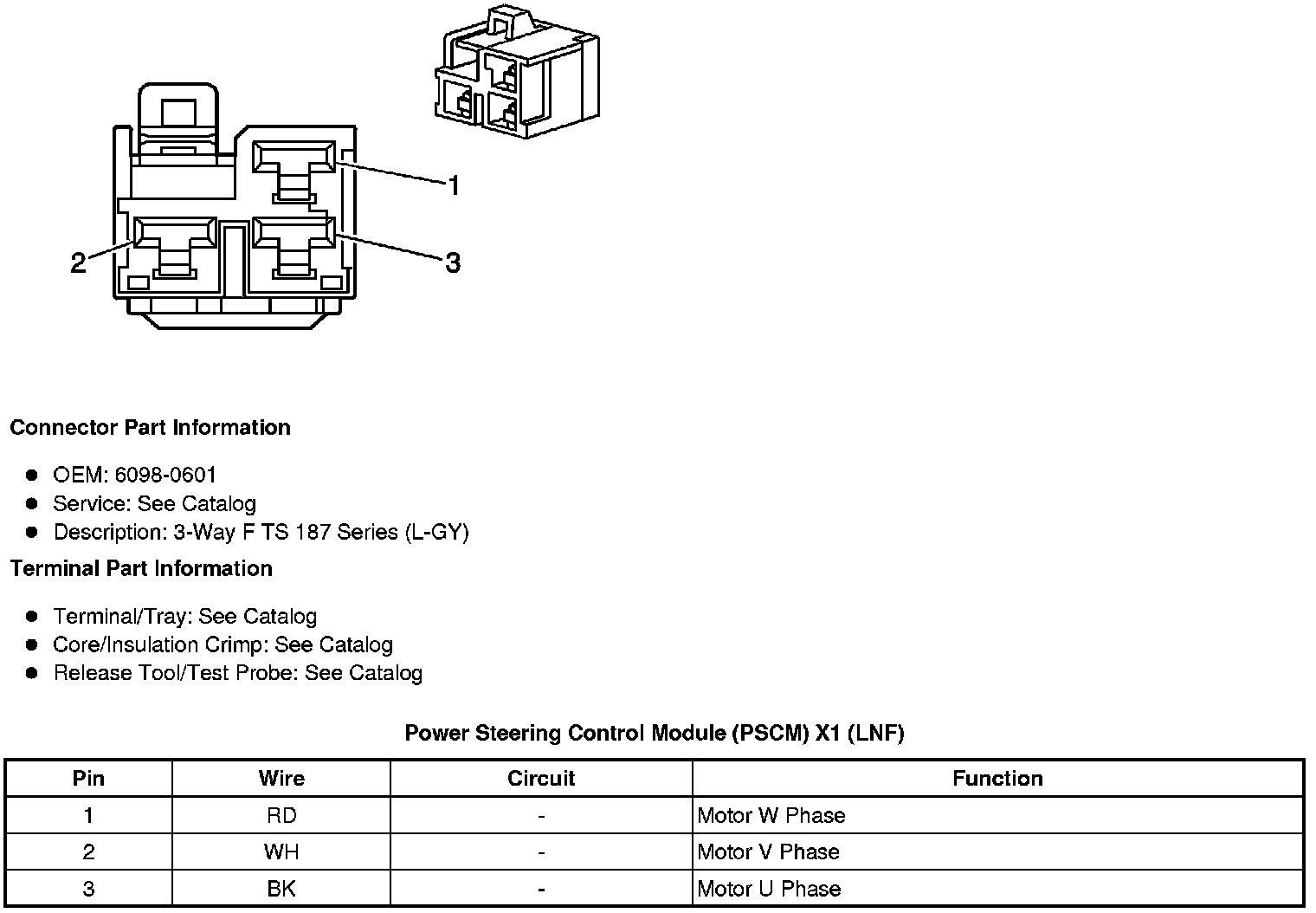

Power Steering Control Module (PSCM) X1 (LNF)

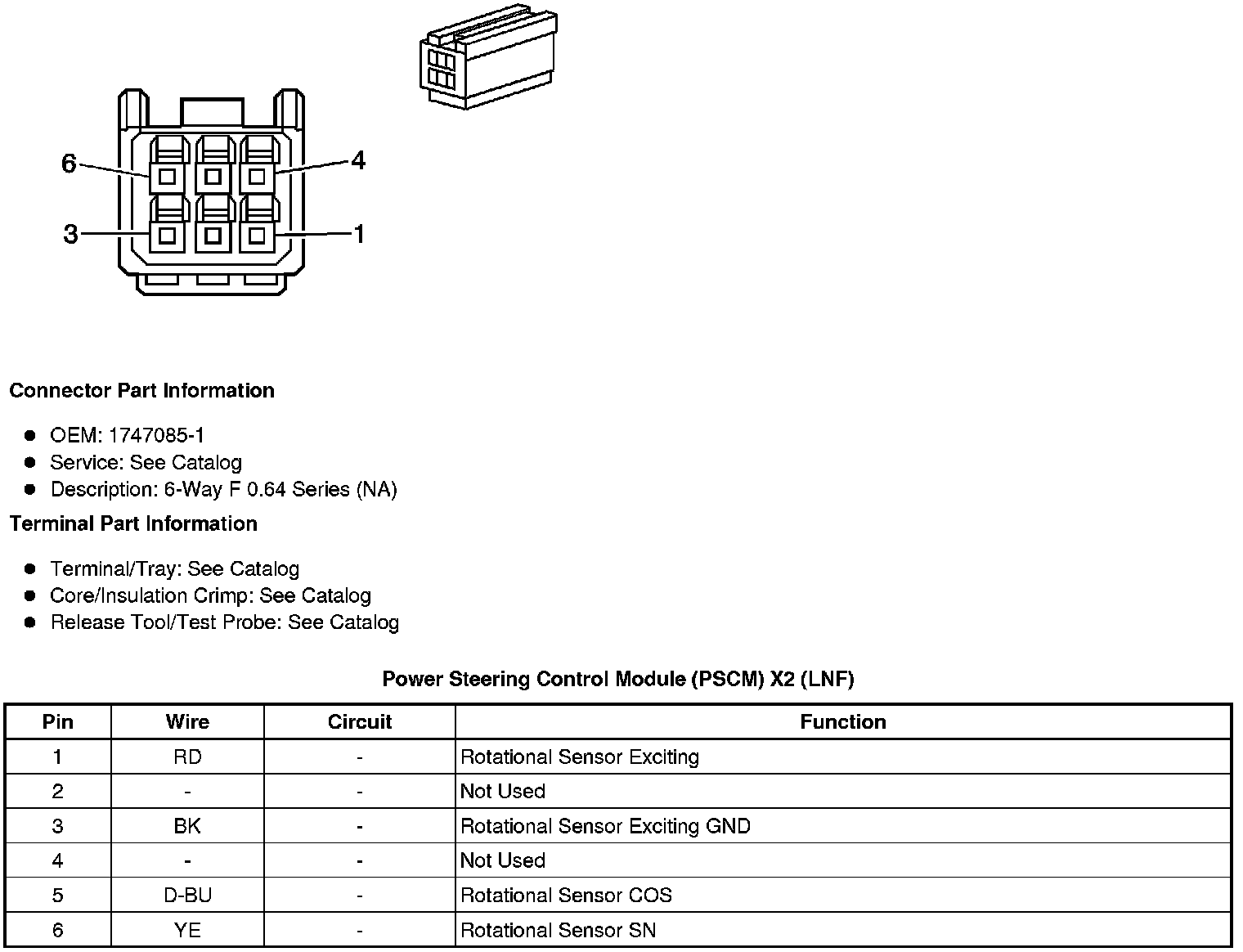

Power Steering Control Module (PSCM) X2 (LNF)

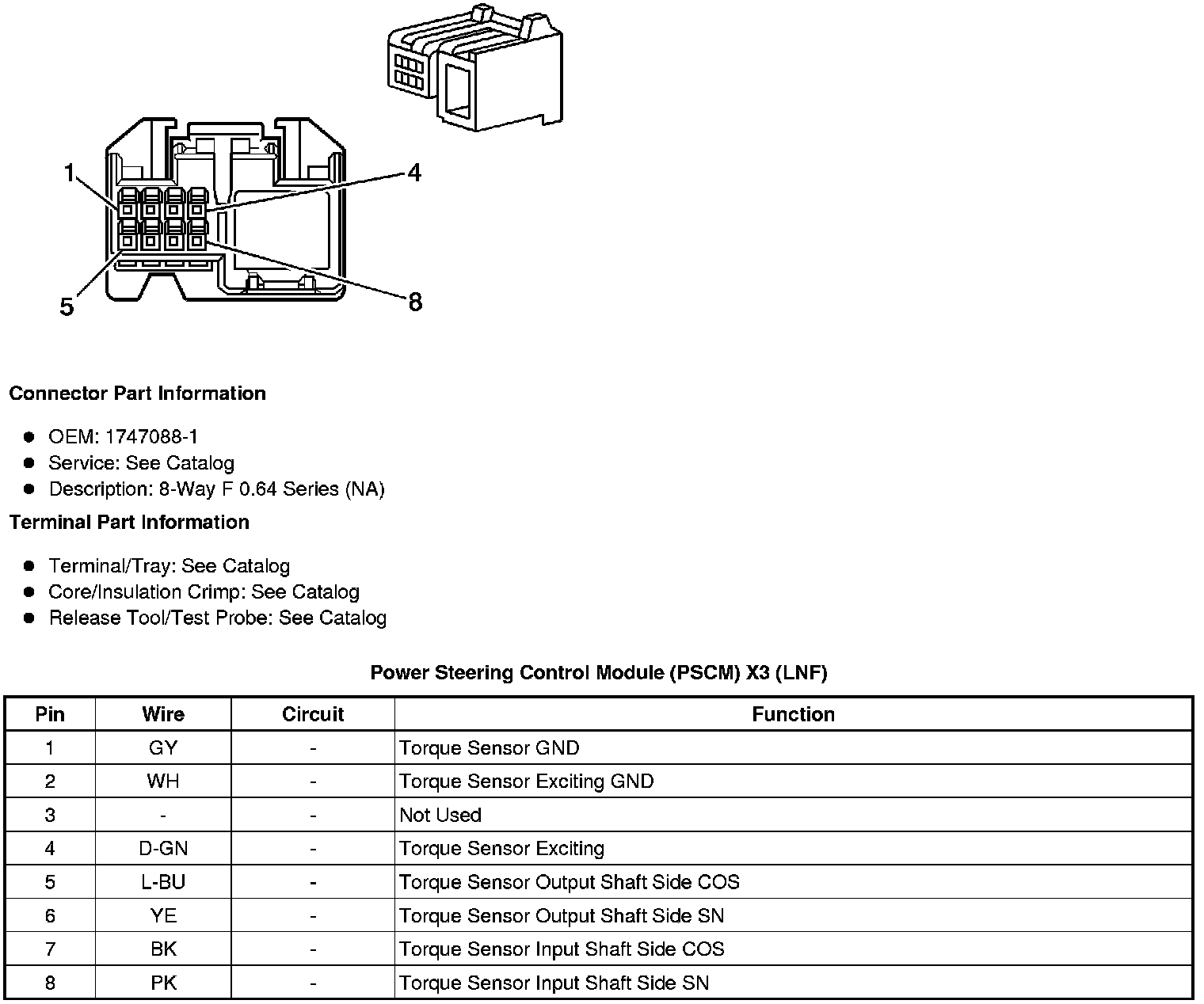

Power Steering Control Module (PSCM) X3 (LNF)

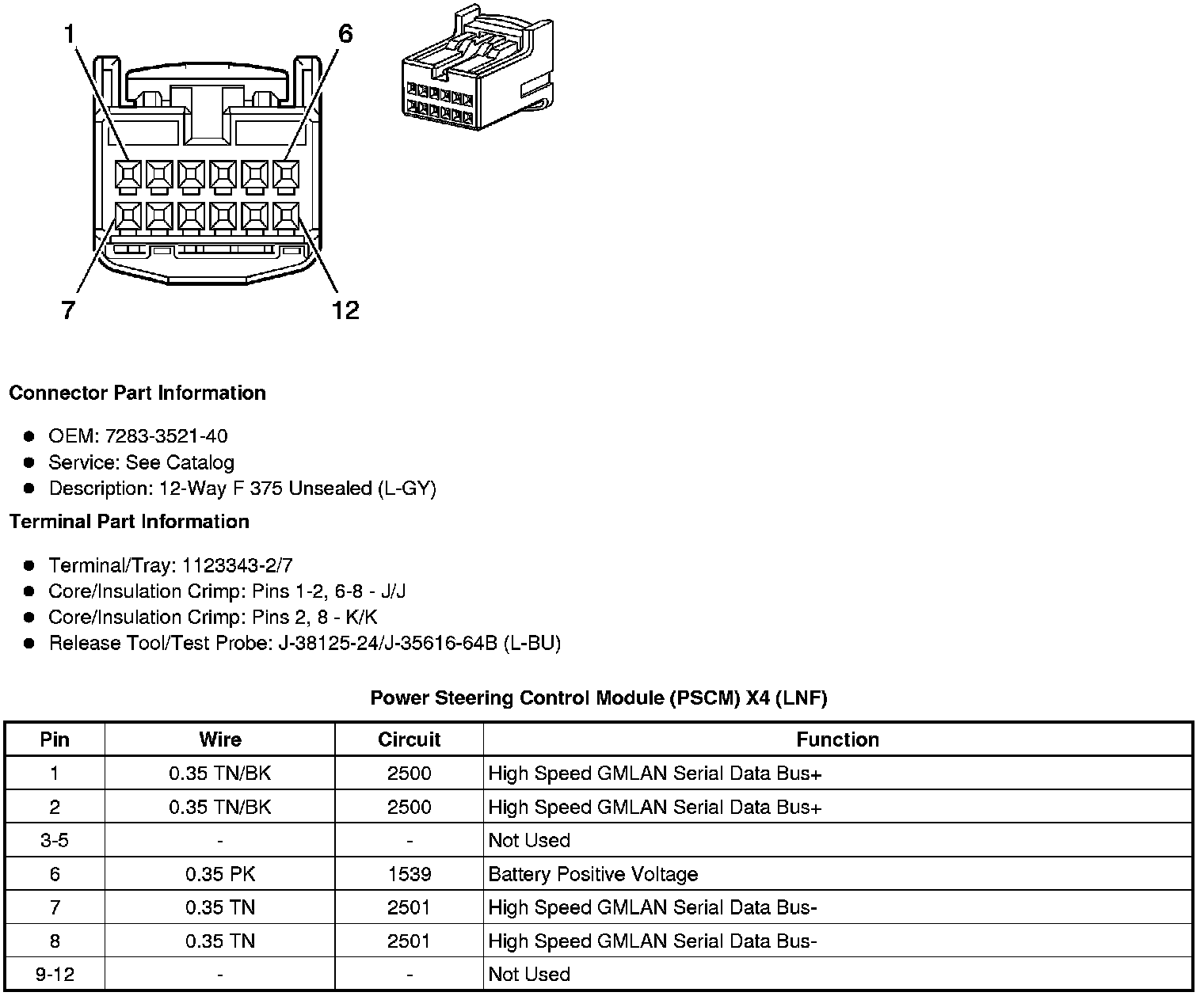

Power Steering Control Module (PSCM) X4 (LNF)

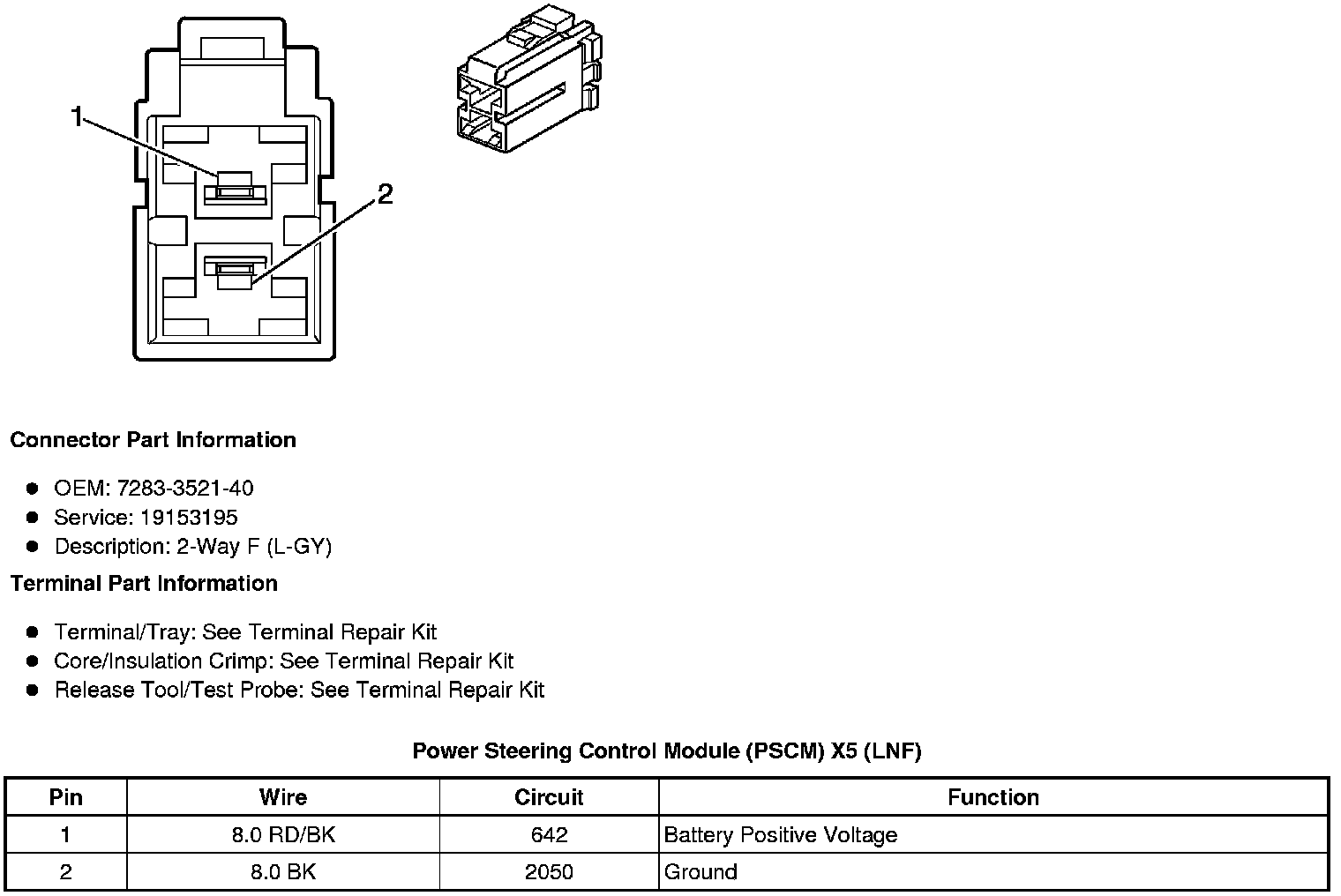

Power Steering Control Module (PSCM) X5 (LNF)
