Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil Module 1

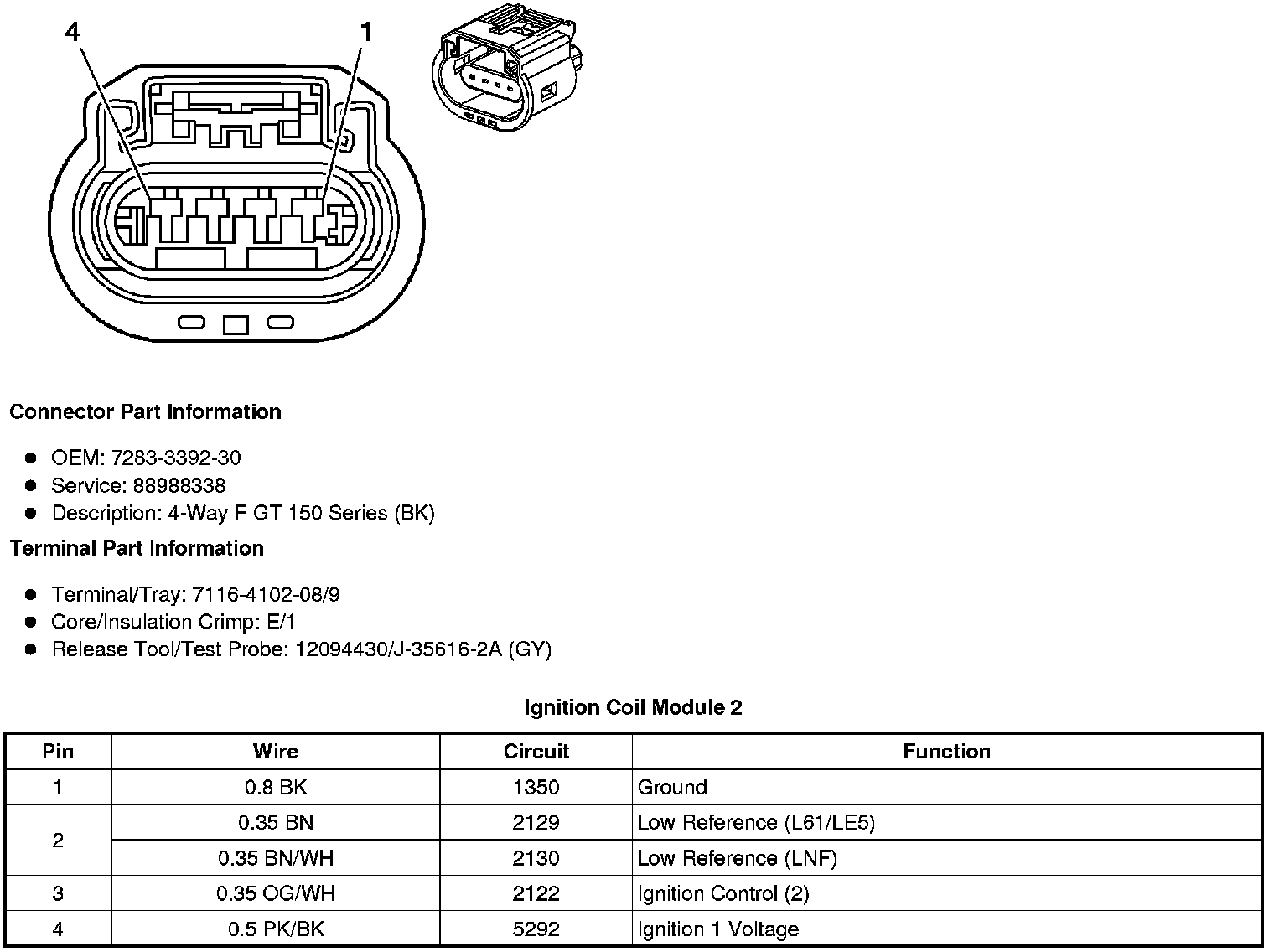

Ignition Coil Module 2






Ignition Coil Module 3






Ignition Coil Module 4
