Connector Views




Component Connector End Views

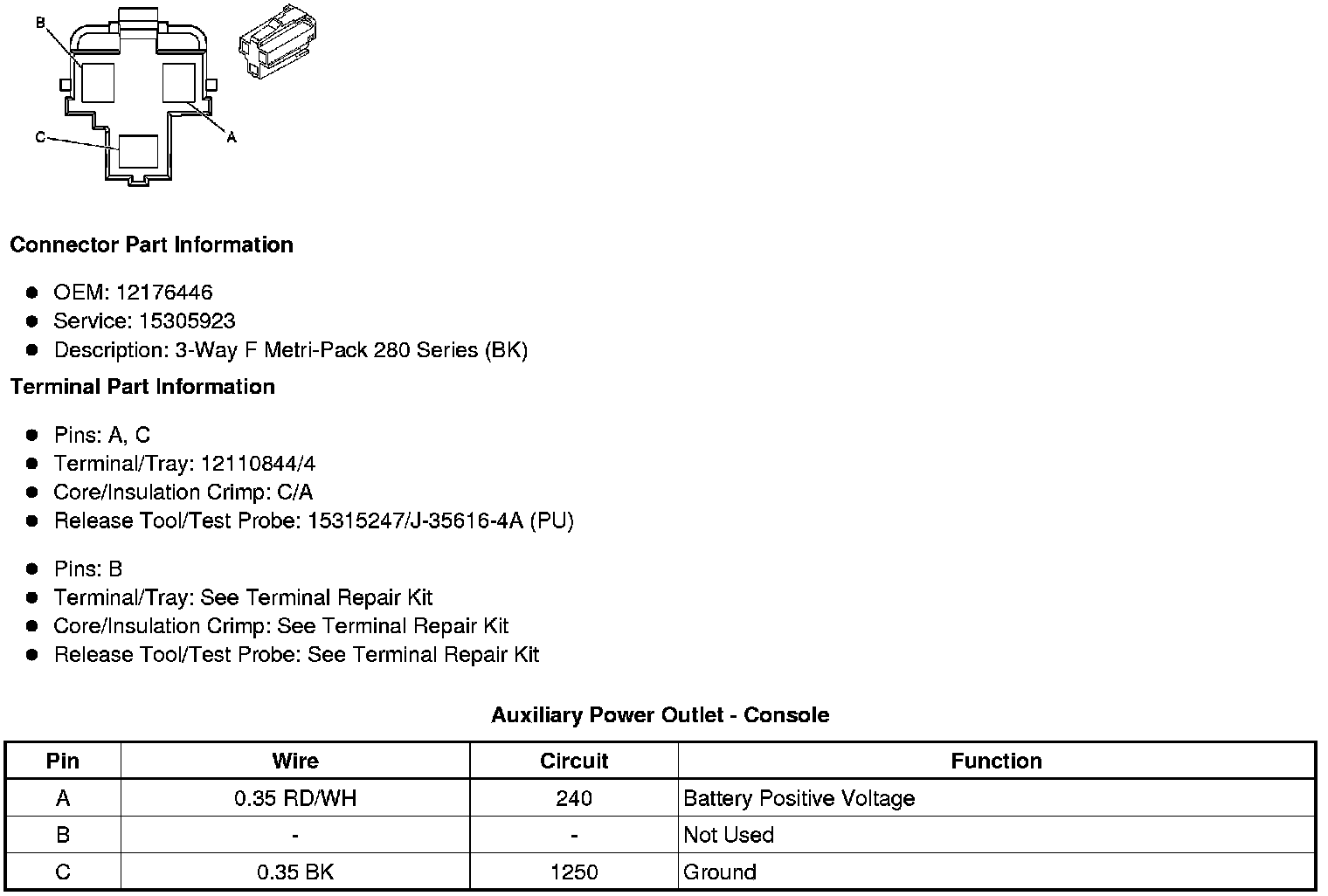

Auxiliary Power Outlet - Console

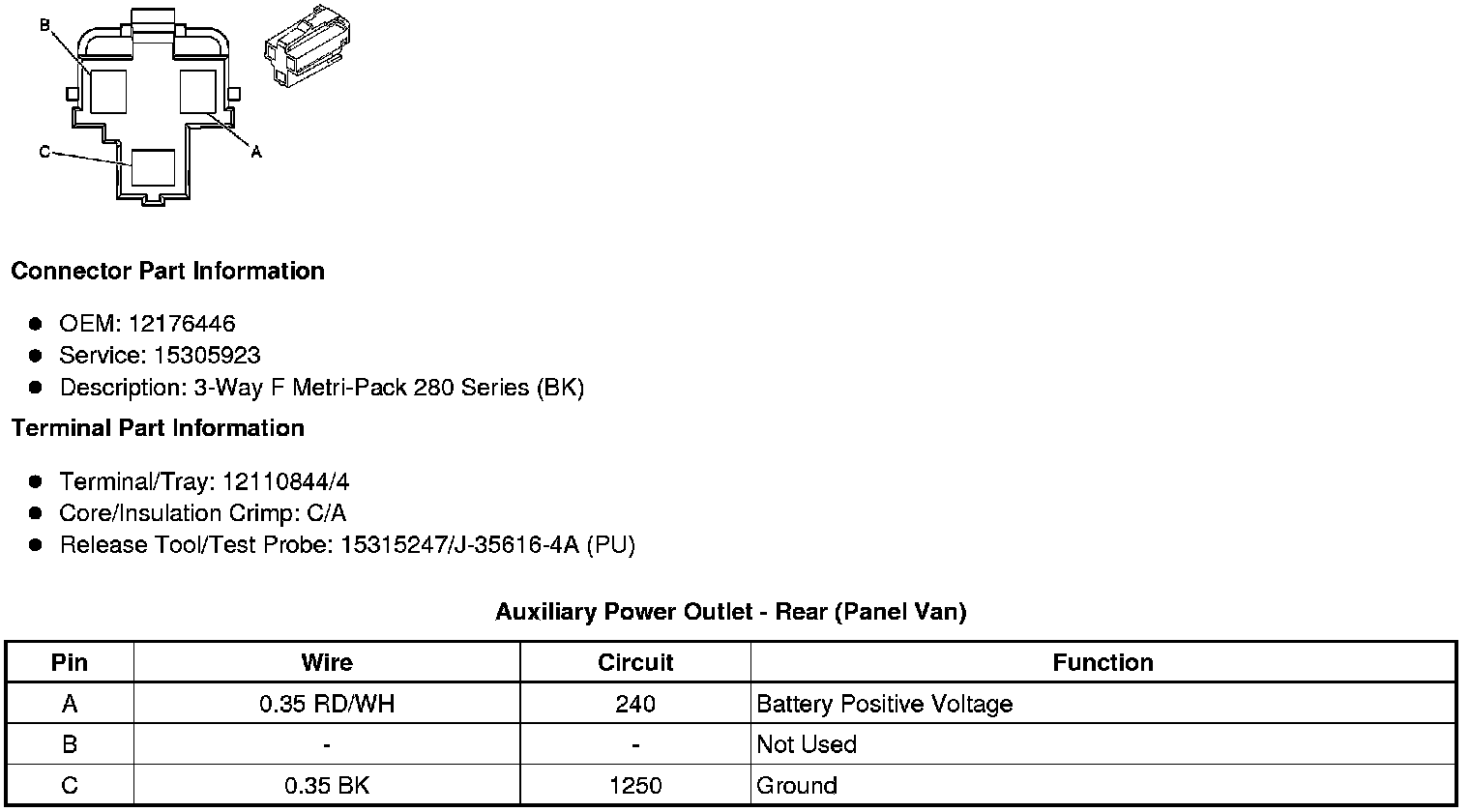

Auxiliary Power Outlet - Rear (Panel Van)

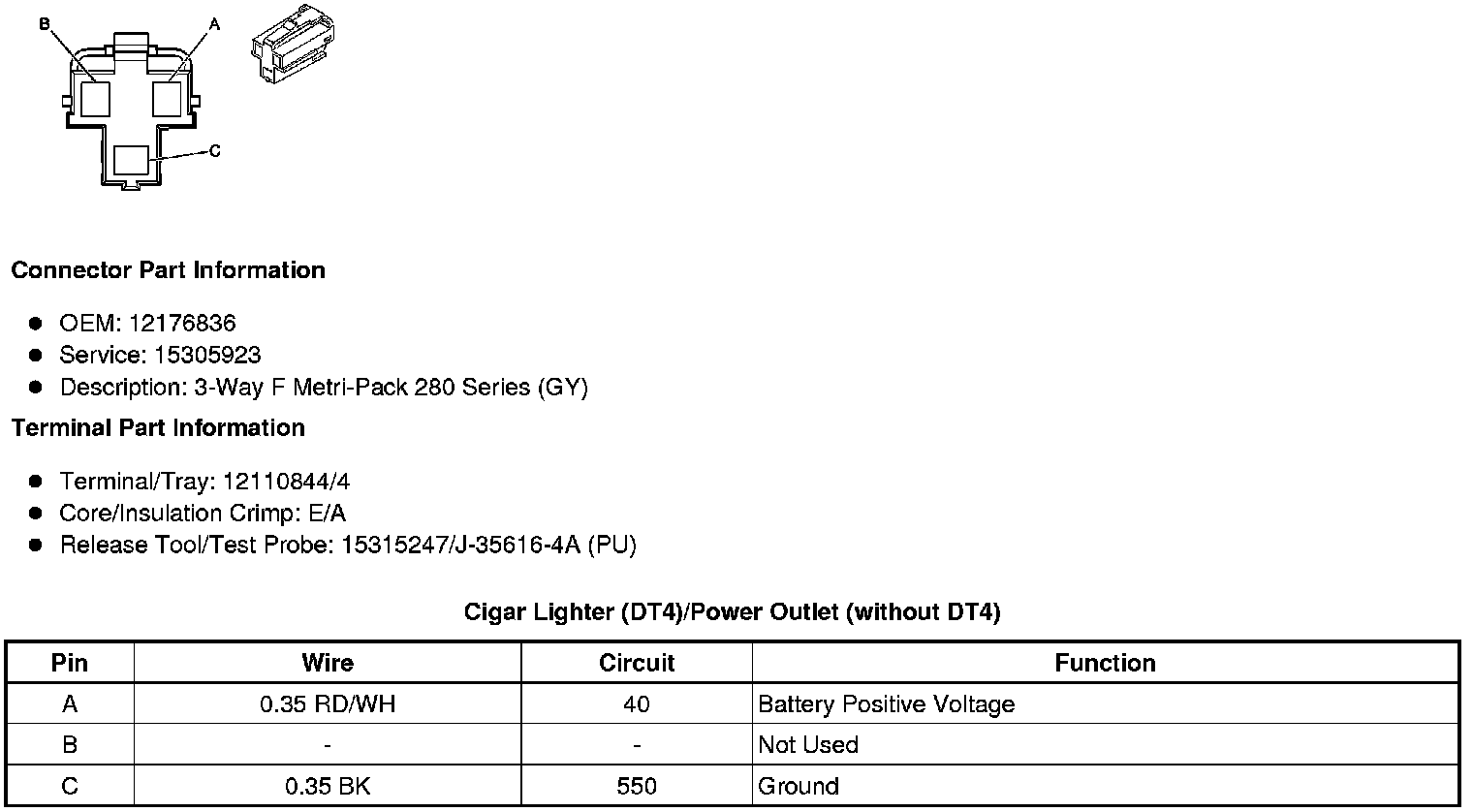

Cigar Lighter (DT4)/Power Outlet (without DT4)
