Ground Views




Ground Views

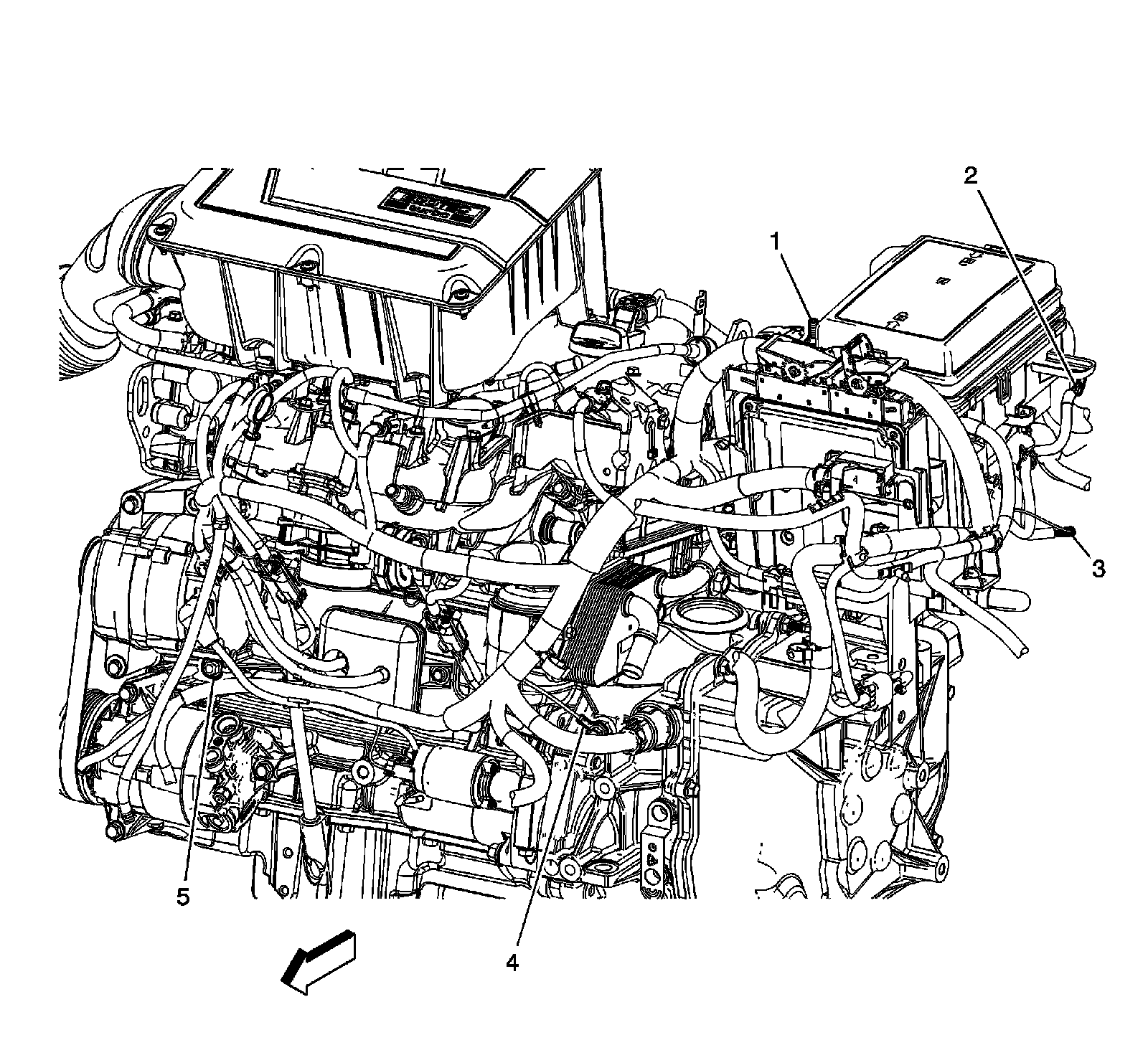

Engine Compartment - Front




1 - G103
2 - G109
3 - G111
4 - G107
5 - G105

Engine Compartment - Front (LNF)




1 - G103
2 - G109
3 - G111
4 - G107
5 - G105
