Exhaust Manifold Heat Shield Replacement

Exhaust Manifold Heat Shield Replacement

Removal Procedure




1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (Service and Repair).
2. Remove the air cleaner bracket nuts.
3. Remove the air cleaner bracket.

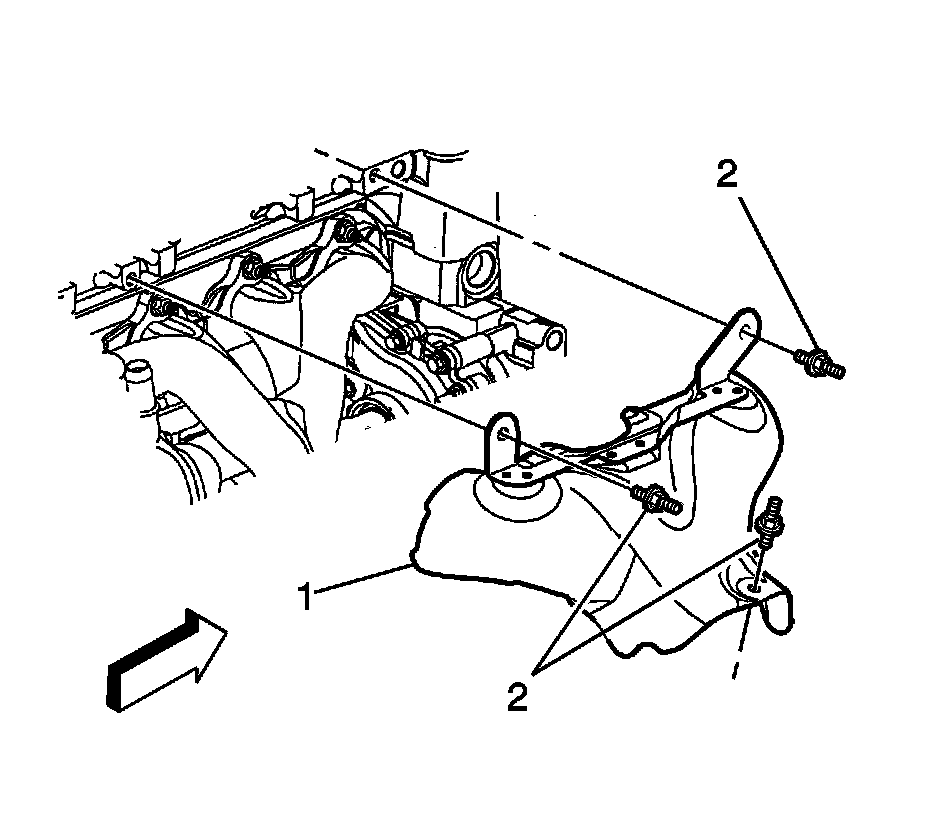

4. Remove the exhaust manifold heat shield studs (2).
5. Remove the exhaust manifold heat shield (1).

Installation Procedure




1. Install the exhaust manifold heat shield (1).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the exhaust manifold heat shield studs (2).

Tighten the studs to 22 Nm (16 lb ft).




3. Install the air cleaner bracket.
4. Install the air cleaner bracket nuts.

Tighten the nuts to 25 Nm (18 lb ft).

5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (Service and Repair).
