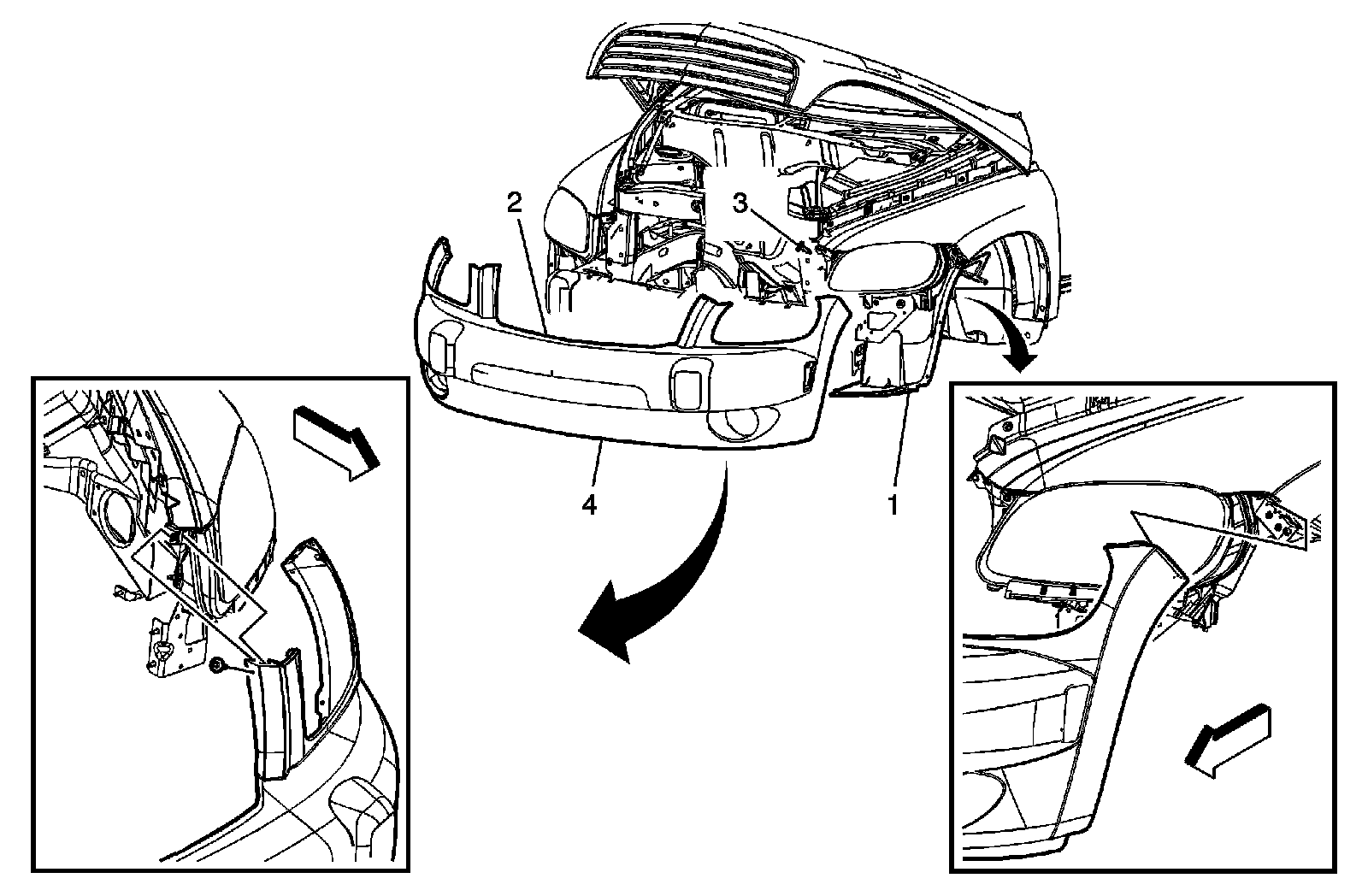

Front Bumper Fascia Replacement (Standard)

Front Bumper Fascia Replacement (Standard)

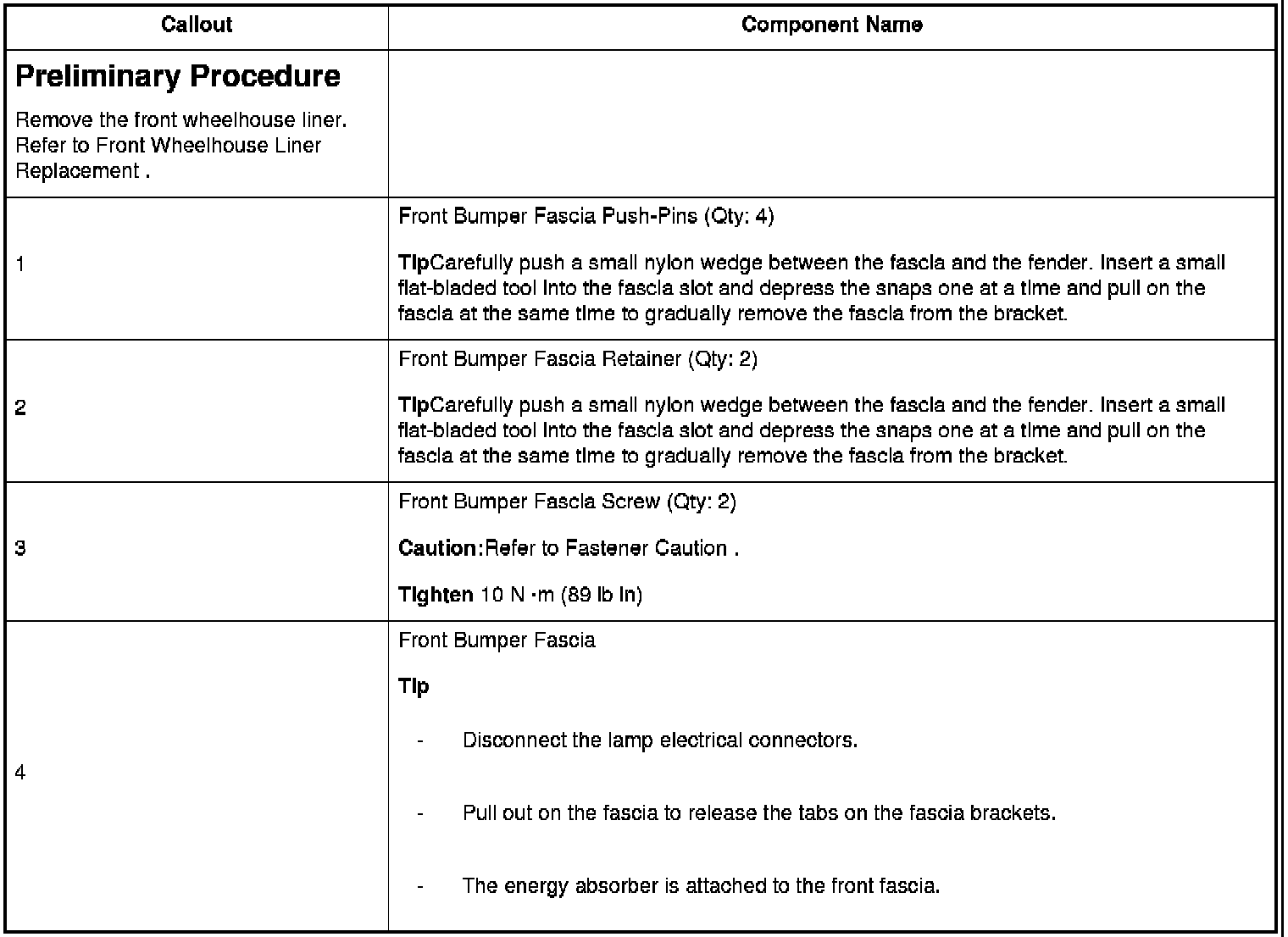

Preliminary Procedure

TipCarefully push a small nylon wedge between the fascia and the fender. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the bracket.

TipCarefully push a small nylon wedge between the fascia and the fender. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the bracket.

Caution:Refer to Fastener Caution.
Tighten
Tip-Disconnect the lamp electrical connectors.-Pull out on the fascia to release the tabs on the fascia brackets.-The energy absorber is attached to the front fascia.
