Transmission Fluid Pump Body Assemble

Transmission Fluid Pump Body Assemble

Special Tools

J 38693 - Oil Pump Seal Installer

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

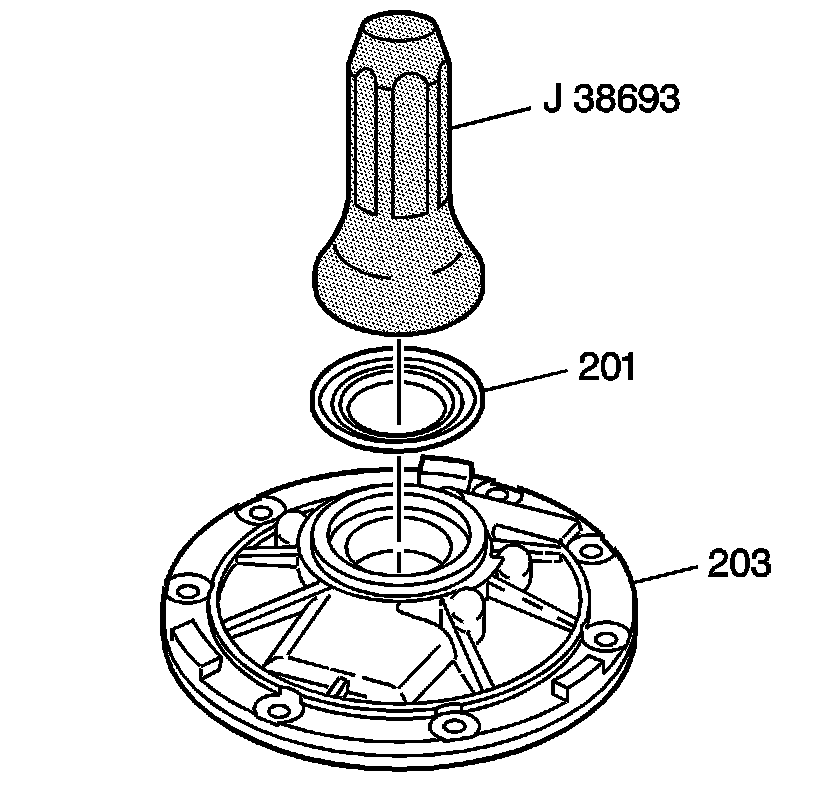

1. Using the J 38693 - seal installer , install the torque converter oil seal assembly (201).




2. Lubricate the oil pump drive gear (205) and driven gear (204) with DEXRON(R)VI automatic transmission fluid.

Note: The identification dots on the oil pump drive gear (205) must be facing up in order to ensure correct orientation of the drive flats.

3. Install the oil pump driven gear (204) and drive gear (205) with the identification dots facing up.
