Overdrive Carrier Pinion End Play Check

Overdrive Carrier Pinion End Play Check

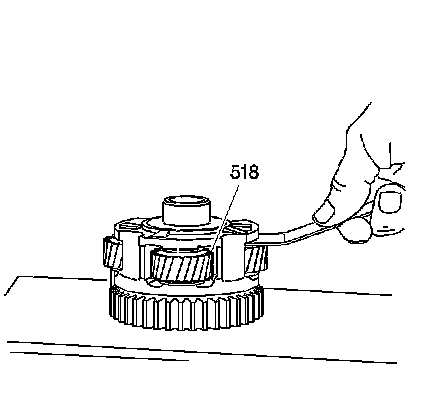

Using a feeler gage, measure the pinion washer wear. The correct end play is between 0.2032-0.6350 mm (0.008-0.025 in).
