Output Shaft Seal Installation




Output Shaft Seal Installation

Special Tools

J 41505 - Output Shaft Seal Installer

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

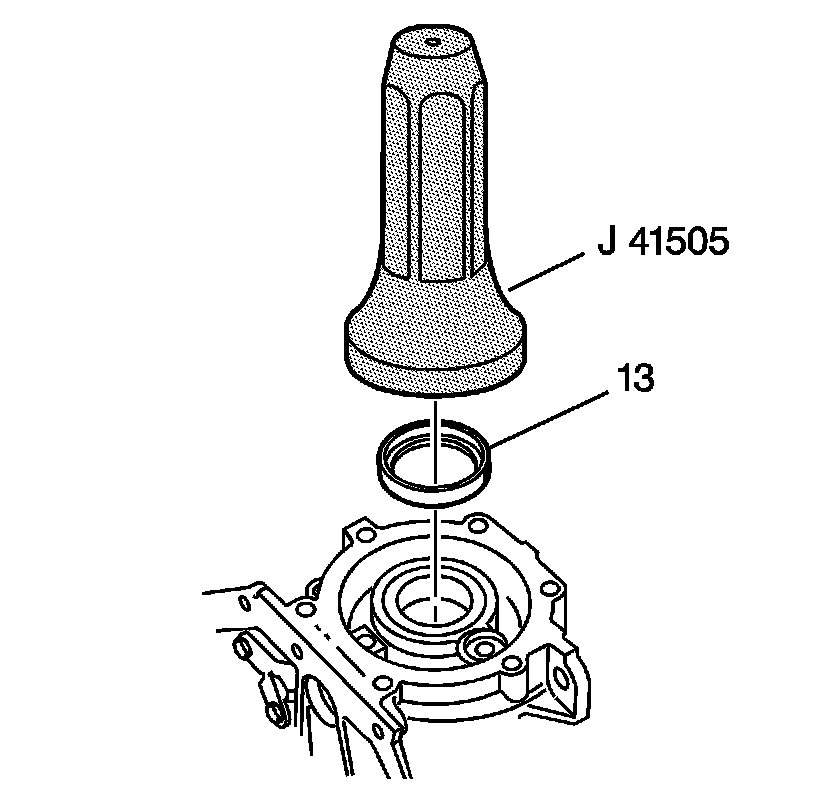

1. Using the J 41505 - seal installer , install a new output shaft seal (13).

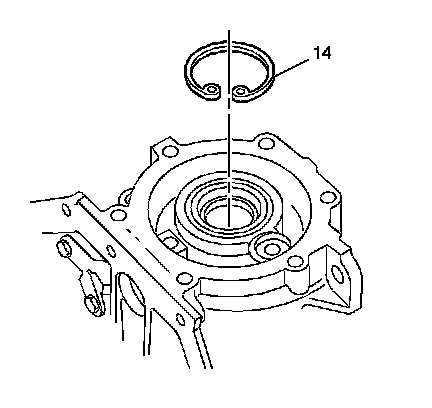

2. Install the output shaft seal retainer ring (14).
