Low and Reverse Band Servo Assembly Installation

Low and Reverse Band Servo Assembly Installation

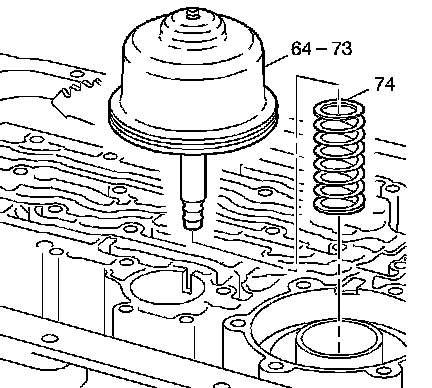

1. Install the low and reverse accumulator piston spring (74) into the transmission case.

Note: The low and reverse band servo assembly (64-73) is pushed down when tightening the cover bolts. Do not force the low and reverse band servo assembly (64-73) into the servo bore.

2. Install the low and reverse band servo assembly (64-73).

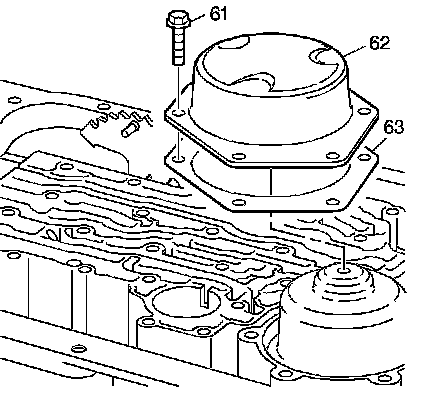

3. Install the low and reverse band servo cover gasket (63).
4. Install the low and reverse band servo cover (62).

Caution: Refer to Fastener Caution (Fastener Caution).

5. Install the 6 low and reverse band servo cover bolts (61). Tighten the bolts to 24 Nm (18 lb ft) in an alternating pattern.
