Input and Output Speed Sensor Assembly Installation




Input and Output Speed Sensor Assembly Installation

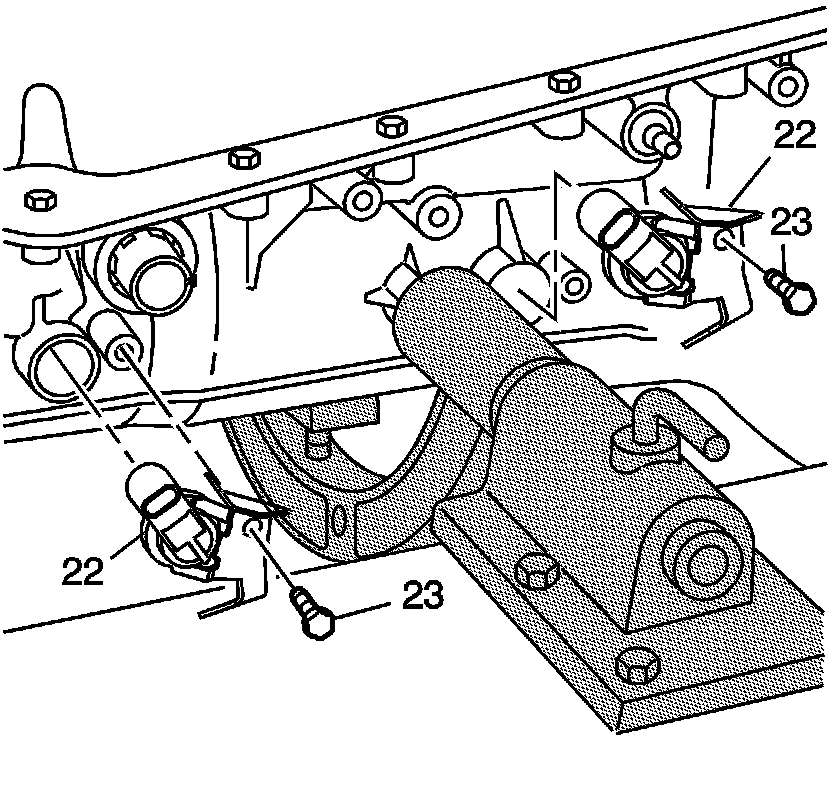

1. Install the input and output speed sensors (22), (output speed sensor plug-4WD) into the transmission case.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the input and output speed sensor bolts (23). Tighten the bolts to 11 Nm (97 lb in).
