Holding Fixture Removal

Holding Fixture Removal

Special Tools
* J 3289-20 - Holding Fixture Base Assembly
* J 8763-02 - Transmission Holding Fixture
* J 38655 - Holding Fixture Adapter

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

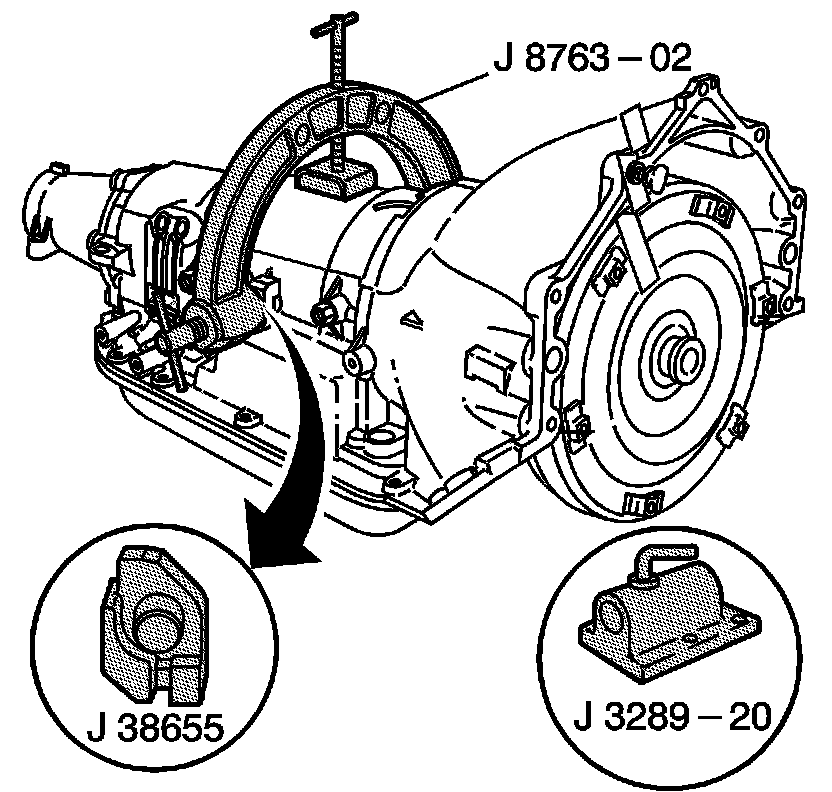

1. Remove the transmission assembly and the J 8763-02 - holding fixture from the J 3289-20 - holding fixture base assembly.
2. Remove the J 8763-02 - holding fixture and the J 38655 - holding fixture adapter.
