Direct Clutch Piston Travel Check

Direct Clutch Piston Travel Check

Special Tools
* J 8001 - Dial Indicator Set
* J 7057 - Dial Indicator Plunger Extension

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

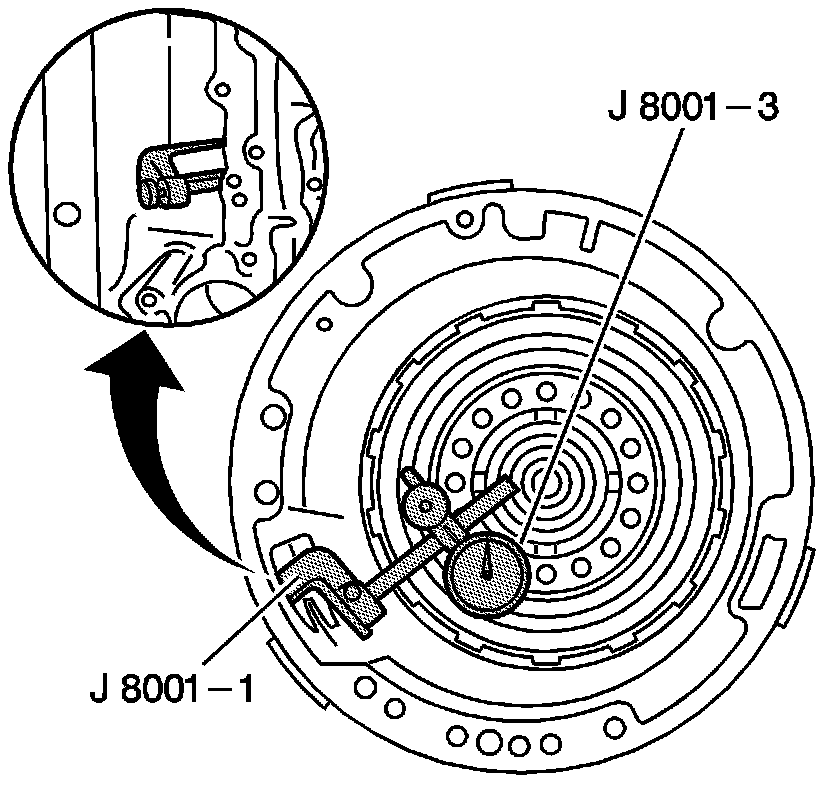

1. Attach the J 7057 - plunger extension (not visible in the illustration) to the J 8001-3 - dial indicator.
2. Using the J 8001-1 - dial indicator clamp , mount the J 8001-3 - dial indicator to the transmission case through the opening in the case barrel. Place the J 7057 - plunger extension onto the direct clutch piston assembly.
3. Index the J 8001-3 - dial indicator. Set the dial to 0.
4. Apply 80 psi of air pressure to the direct clutch fluid passage (3rd/Reverse), in the case bottom, in order to actuate the direct clutch piston. Refer to Fluid Passages (Fluid Passages).
5. Measure the direct clutch piston travel. The piston travel should be 1.27-4.369 mm (0.050-0.172 in).
6. Remove the tools.
